MAINTENANCE AN D SERVICING
3. Position driveline yoke (B) as shown on both ends of
the cross driveline.
4. Install taper pin so groove on pin is aligned with groove
on shaft.
5. Install nut (A) onto taper pin and torque to
110 ft·lbf (150 N·m ). Pin must be recessed
3/8–7/16 in. (9–11 mm) inside the yoke.
IMPORTAN T:
Check taper pin torque every 25 hours until it
stops moving, then check before every season.

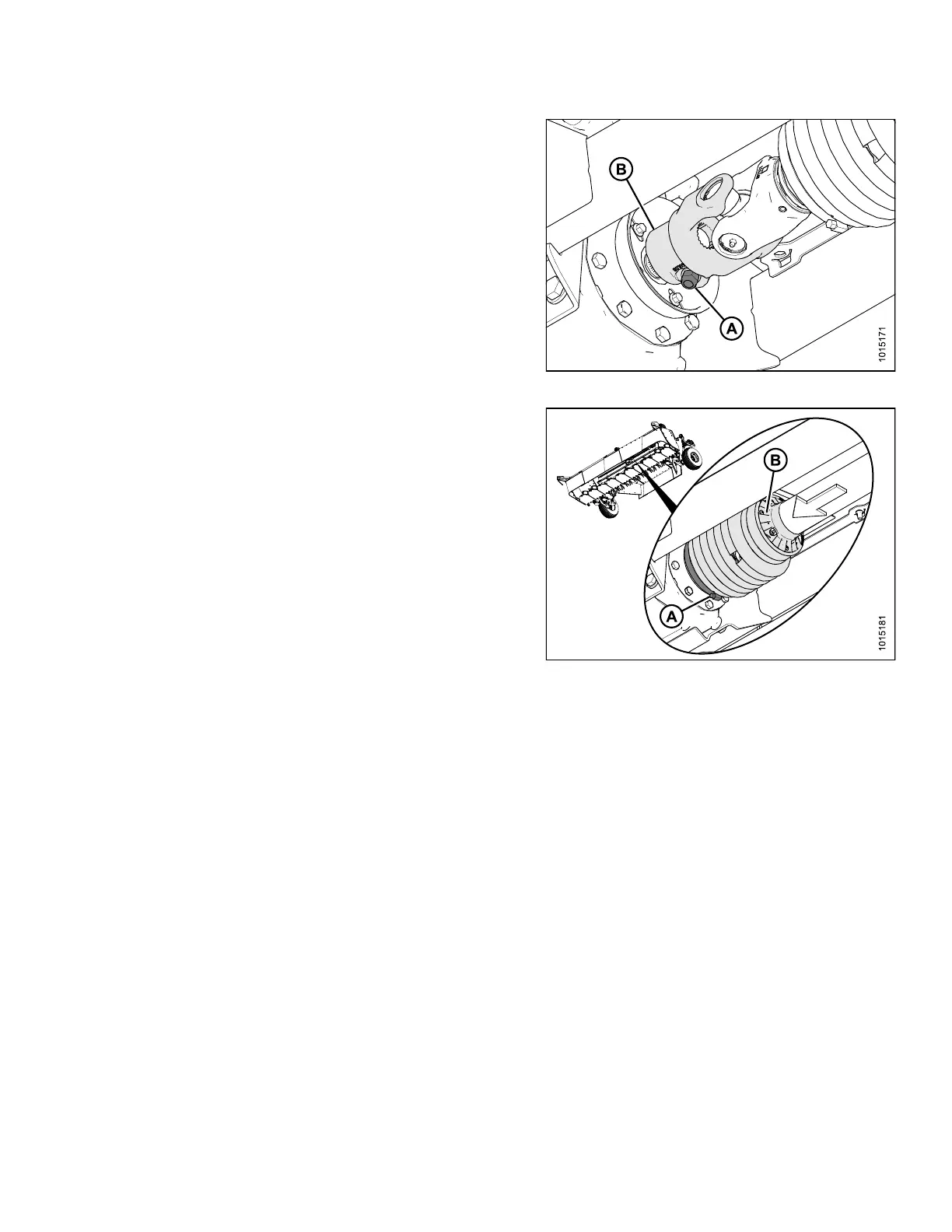

Figure 4.184: Cross Driveline yoke
6. Slide the driveline shields (B) over the yokes at both
ends of the driveline, and secure them with clamps (A).
7. Close the cutterbar doors. Refer to 3.3.3 C losing
Cutterbar Doors, page 38.
Figure 4.185: Cross Driveline Shield
147910 199 Revision A
