OPERATION
4. Lower hitch with jack (A) so that pin (B) engages
drawbar hitch adapter (C).
5. Install clev is pin (D) and secure with lynch pin (E).

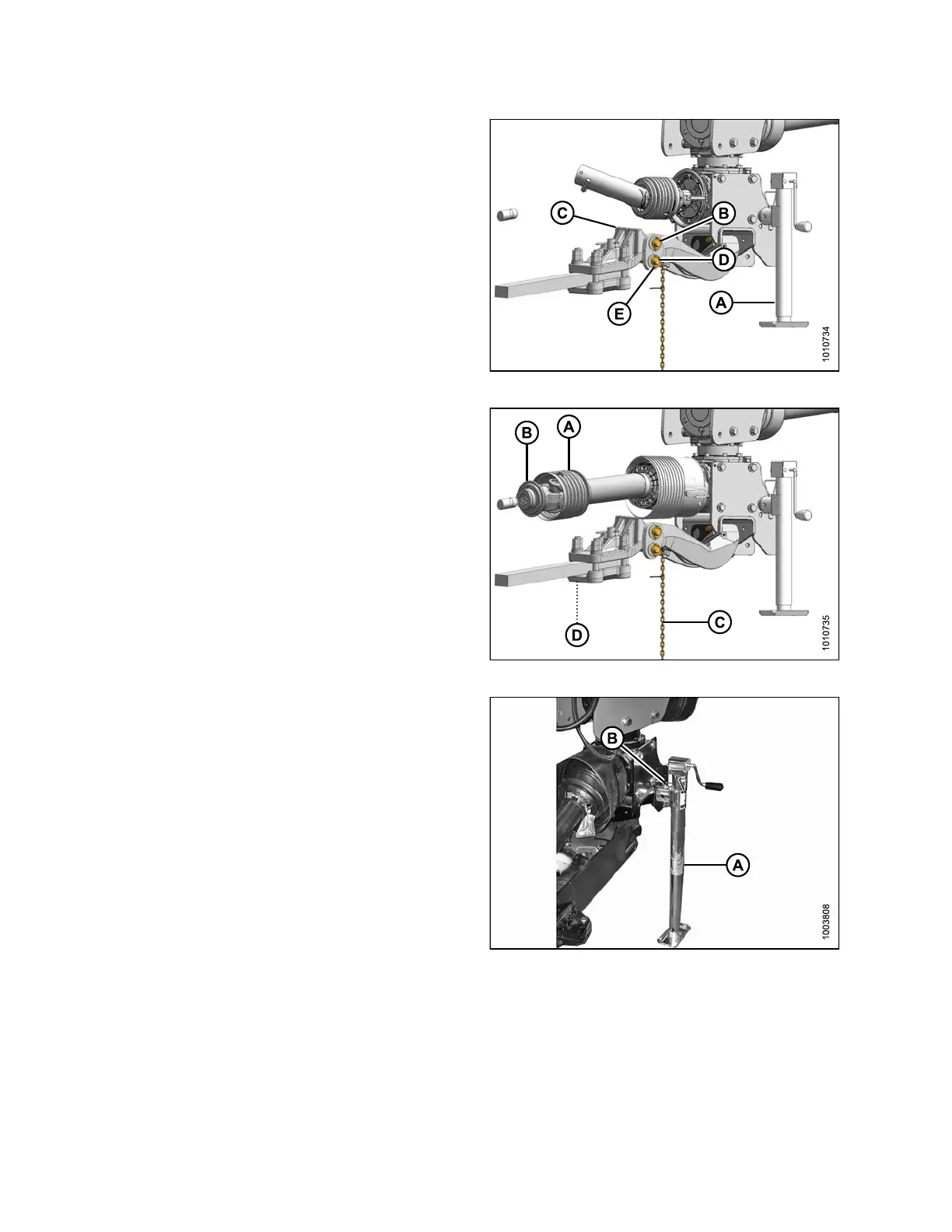

Figure 3.24: Mower Conditioner Hitch
6. Position driveline (A) onto tractor power take-off (PTO).
7. Pull back collar (B) o n driveline (A), and push driv eline
until it locks. Release collar.
8. Route safety chain (C) from mower conditioner through
chain support (D) on drawbar hitch adapter and around
tractor drawbar support. Lock hook on chain.
NOTE:
If the tra ctor has a thre e-point hitch, lift the links
as far as possible to preve nt damage to the hitch.
Figure 3.25: PTO Driveline
9. Raise jack (A), and remove pin (B).
Figure 3.26: Hitch Jack
147910
44
Revision A
