OPERATION
5. Connect the remote control power wire (B) to the
tractor’s power supply.
• Connect wire (D) with the red tag to tractor power
• Connect wire (C) with no tag to tractor ground
NOTE:
If the red tag is missing, identify the power by
locating the wire with the number one printed
on it. The ground wire has a number two
printed on it.

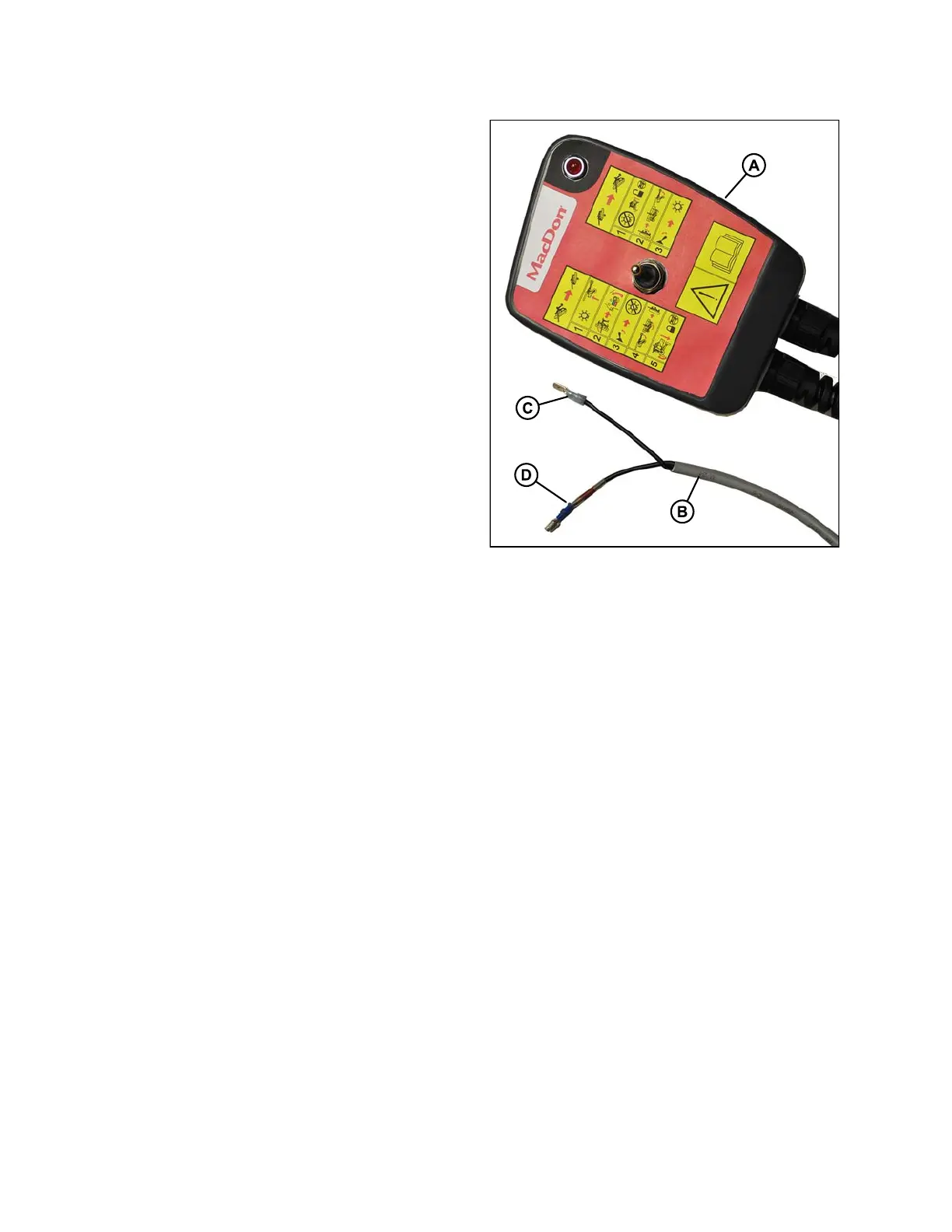

Figure 3
.38: Remote Control
147910 50 Revision A
