MAINTENANCE AND SERVICING
1. Stop engine and remove key from ignition.
2. Remove driveline shield cone (A). Refer to Removing
Driveline Guard, page 201.
3. Remove primary drivelin e. Refer to Removing Primary
Driveline, page 184.
4. Remove hitch driveline. Refer to Removing Hitch
Driveline, page 186.
5. Remove clutch driveline. Refer to Remov ing Clutch
Driveline, page 192.

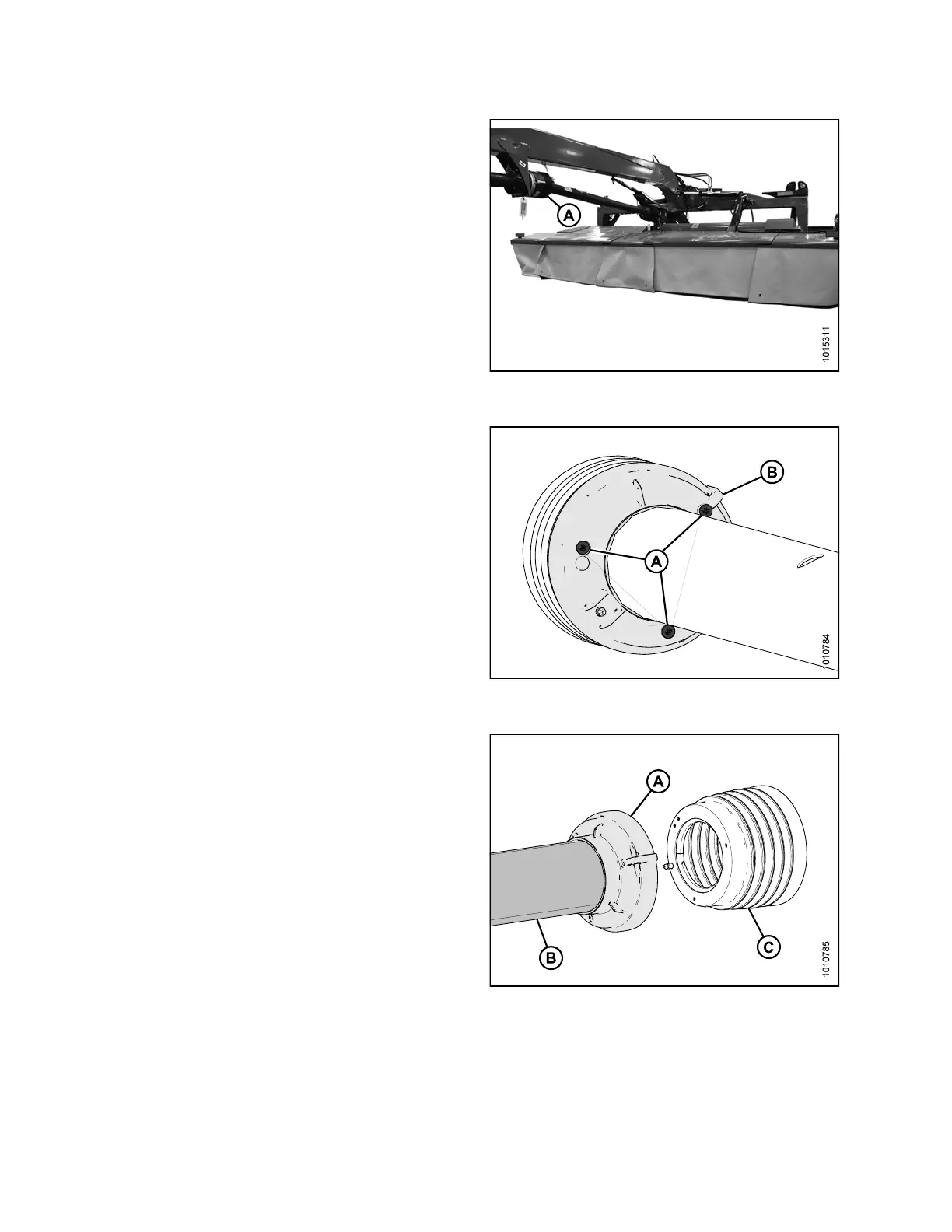

Figure 4.188: Driveline and Driv eline
Shield Cone
6. Remove three s elf-ta p pin g Phillips head screws (A)
from base cone (B).
Figure 4 .189: Phillips Hea d Screws Ins talled in
Base Cone
7. Remove base cone (A) and shield tube (B) from
driveline (no t shown) and outer cone (C).
Figure 4.190: Base Cone and Shield Tube
Removed from Outer Cone
147910 202 Revision A
