OPERATION
15. Measure the length of tensioner spring (A), and turn
adjuster nut (B) to adjust spring length to 14-3/8 in.
(36.5 cm) (to conform with spring tension decal (C).

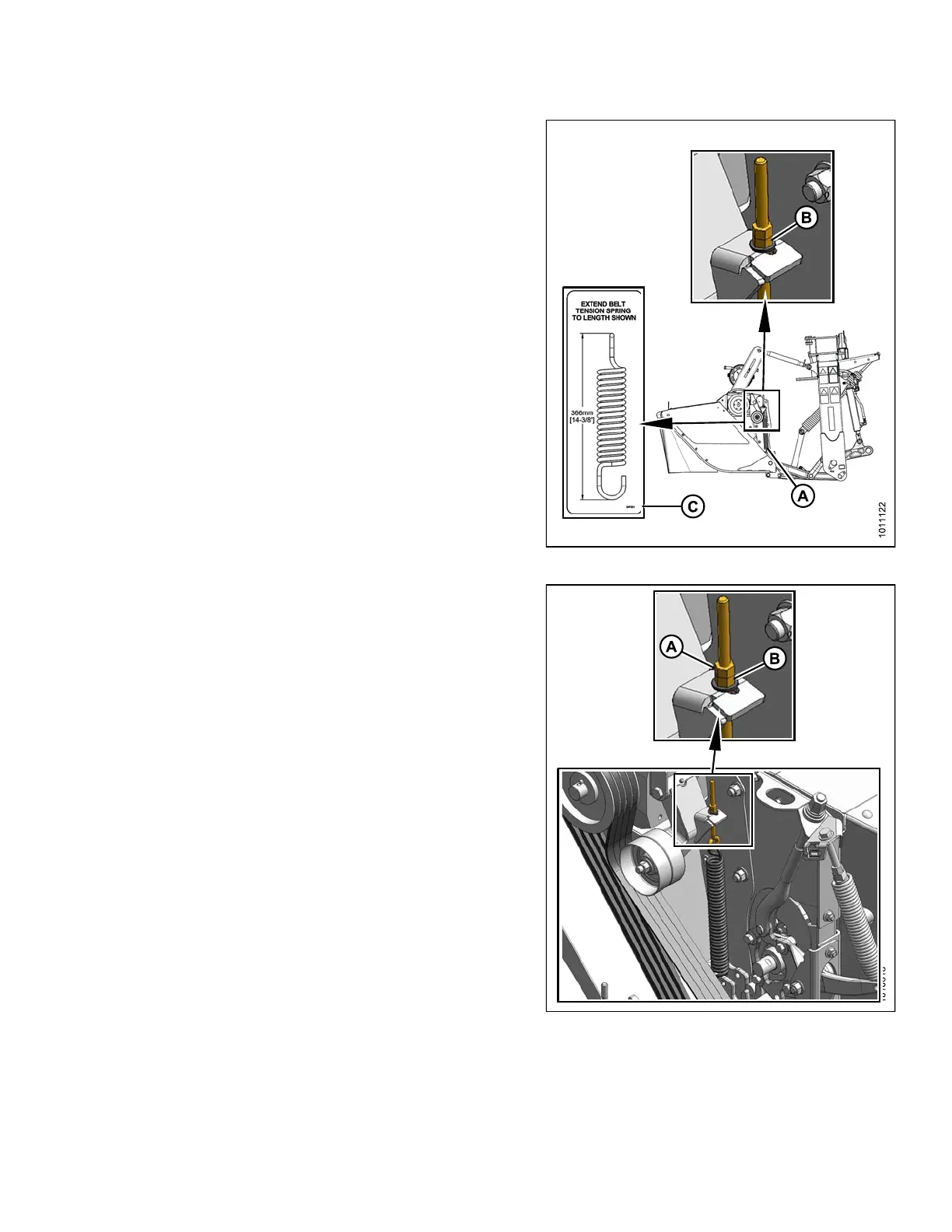

Figure 3.
115: Spring Tension Decal
16. Install jam nut (A).
17. Hold a wrench on adjuster nut (B) and turn jam nut (A)
clockwise into adjuster nut to lock tension adjustment.
18. Verify that pulleys run true and if any of the
pulleys wobble, proceed to Step 1., page 93 and
repeat procedure to reinstall taper locks on the
affected pulleys.
Figure 3.116: Conditioner Drive
147910 95 Revision A
