MAINTENANCE AN D SERVICING
Every 100 Hours
1. Ensure top of hitch and mower conditioner are horizontal, remove check plug from swivel gearbox, and verify
that oil slightly runs out when removed.

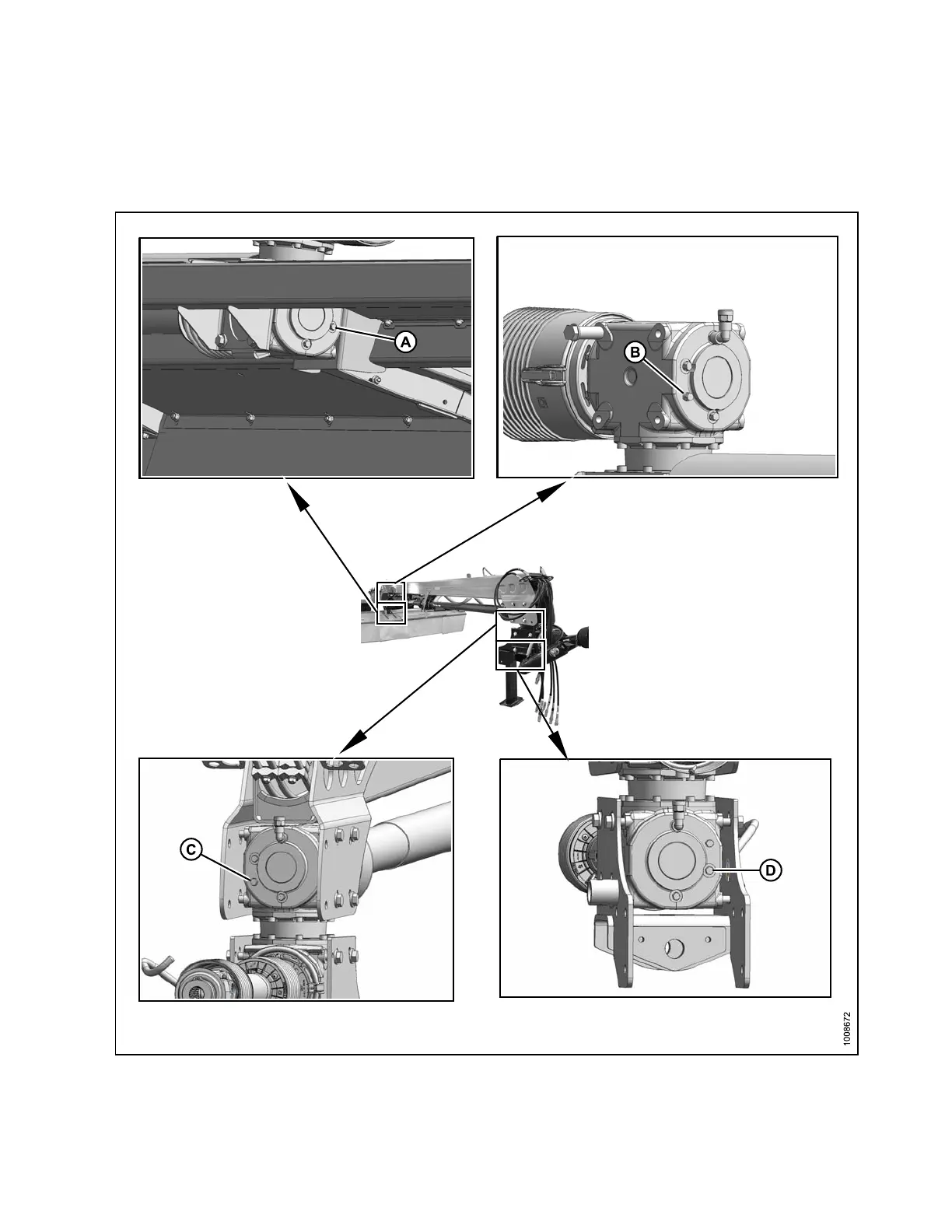

Figure 4.13: Every 100 Hours
A - Check Plug - Swivel Gearbox B - Check Plug - Swivel Gearbox
C - Check Plug - Swivel Gearbox D - Check Plug - Swivel Gearbox
147910 123 Revision A
