MAINTENANCE AN D SERVICING
Every 250 Hours
1. Change lubricant in locations (A), (B), and (C). Refer to the following sections for more information:
• 4.4.1 Cutterb
ar Lubrication, page 127.
• Checkin g and
Changing Conditioner Gearbox Oil, page 209.

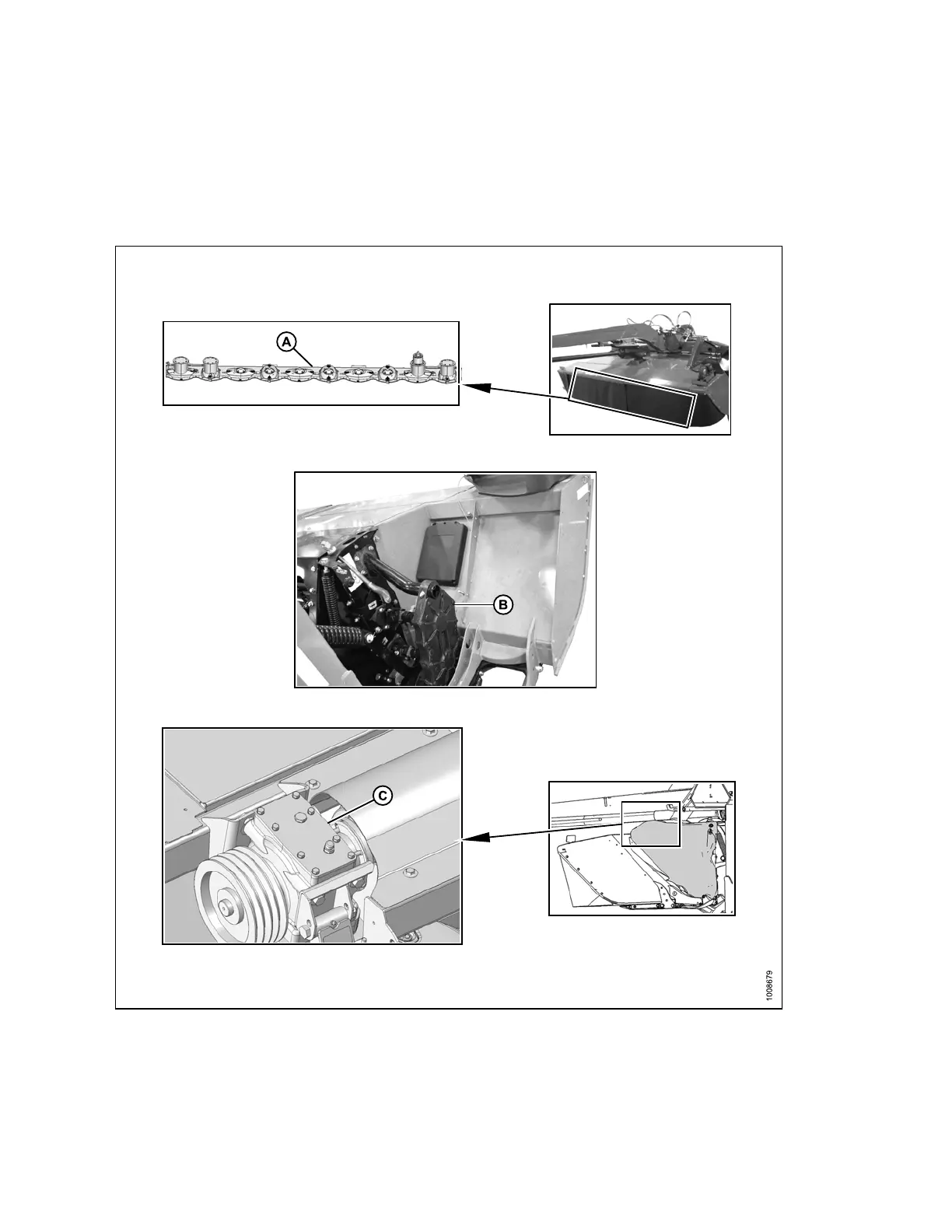

Figure 4.15: Every 250 Hours
A - Cutterbar Lubrication Location B - Conditioner Drive Gearbox C - Mower Conditioner Drive Gearbox
147910 125 Revision A
