MAINTENANCE AN D SERVICING
CAUTION
Cutter blades have two cutting edges. Exercise caution when working around the blades. Blades are sharp
and can cause serious injury. Wear gloves when handling blades.
1. Lower mower conditioner fully, shut off engine, and
remove key.
NOTE:
Ensure mower conditioner is on a flat, level
surface and is tilted all the way back before
removing sp indles to prevent oil from spilling
from the cutterbar.
2. Open cutterbar door(s).

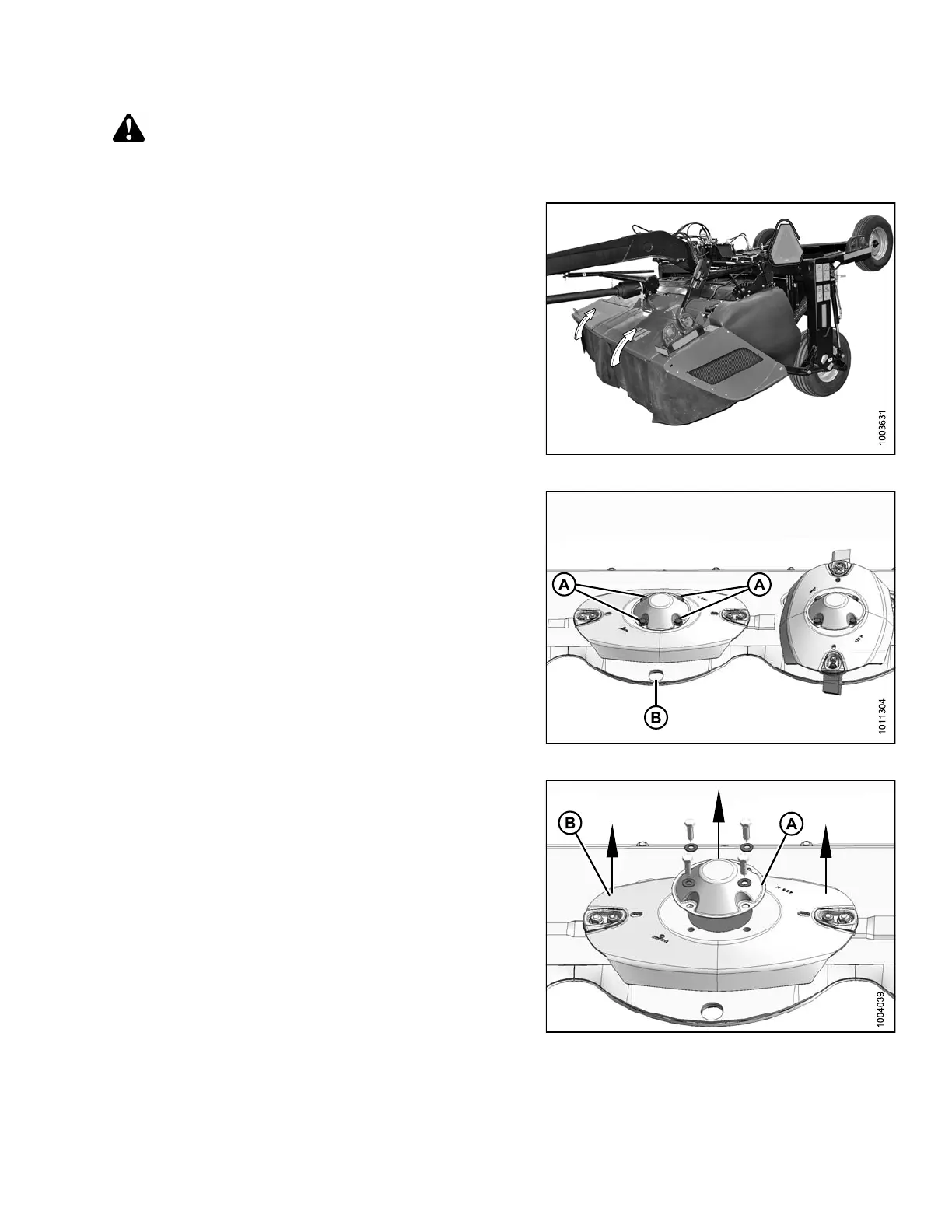

Figure 4.31: Cutterbar Doors
3. Place a pin (or equivalent) in the front hole of the rock
guard (B) to prevent disc rotation while loosenin g bolts.
4. Remove four M12 bolts (A) and washers.
Figure 4.32: Cutterbar Disc Bolts
5. Remove cutterbar disc cap (A).
6. Remove cutterbar disc (B).
IMPORTAN T:
Blades are rotation specific. It is necessary to
switch entire disc when swapping spindles.
Figure 4.33: Cutterbar Disc and Cap
147910 135 Revision A
