MAINTENANCE AN D SERVICING
CAUTION
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear
gloves when handling blades.
NOTE:
Images shown are for left side rotary deflec tor and
driveline—right side rota ry deflector and driveline is
similar.
NOTE:
Arrow indicates forward direction.

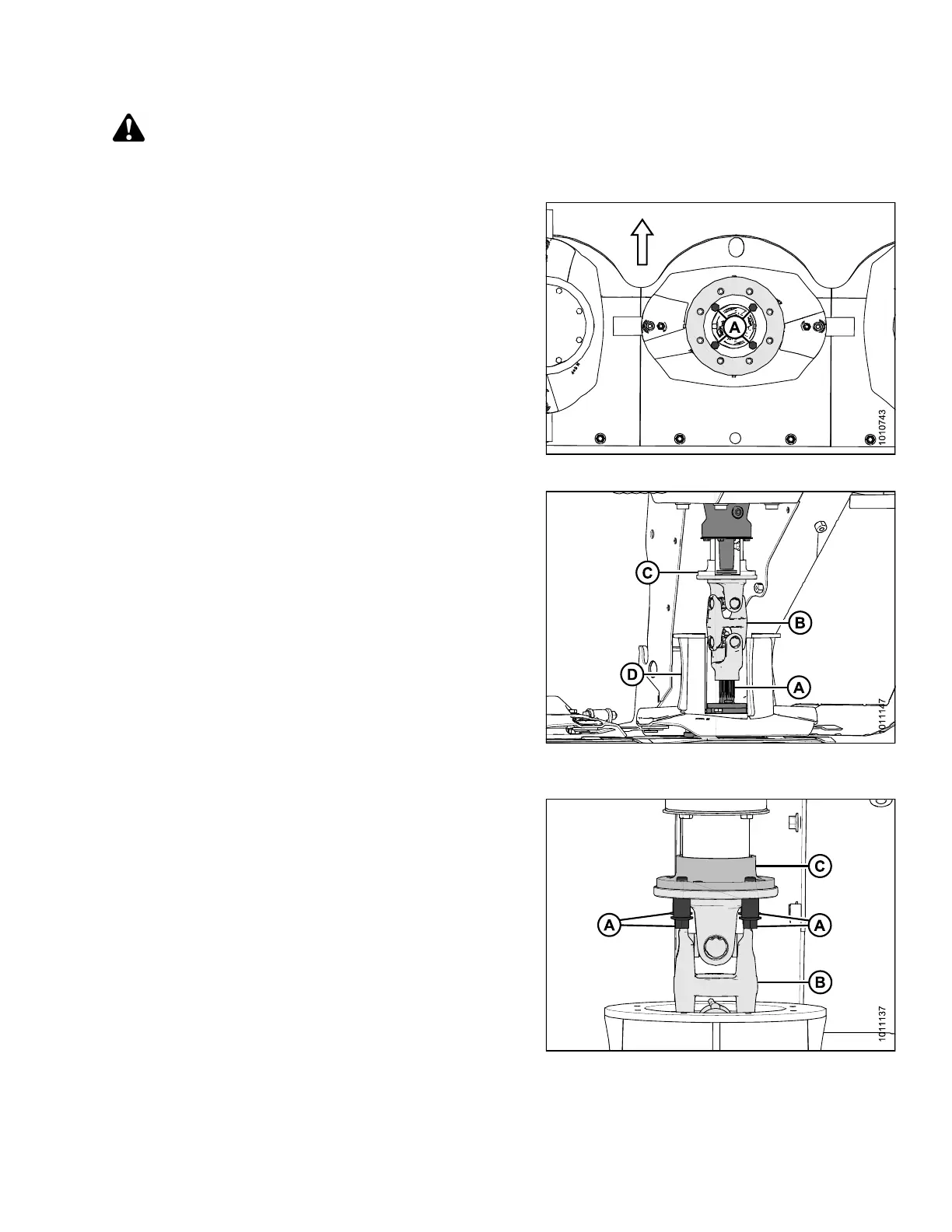

1. Position the rotary deflector disc assembly as sho wn .
2. Use a 12 in. (305 mm) extension and 16 mm deep
socket to install the four M12 bolts (A) and washers
that hold the deflector disc in place. Torque to
63 ft·lbf (85 N·m).
Figure 4.109: Driven Rotary Deflector (Top View)
3. Lubricate spindle splines (A) with high temperature
extreme pressure (EP2) performa nce with 10% max.
Molybdenum Disulphide (NLGI Grade 2) lithium base
grease (cutaway view of drum and tube shield shown
for impro ved clarity).
NOTE:
Do NOT use this grease for bearings.
4. Insert driveline (B) at an angle and guide it past hub
drive (C) and drum (D).
5. Insert splined spindle end (A) into splined bore of
driveline (B).
Figure 4.110: Vertical Driveline (Cutaway
View Shown)
6. Place a bead of Loctite
®
242 around threads, and
install four M12 hex flange head bolts (A) and spacers
to secure driveline assembly (B) to hub drive (C).
Torque bolts to 70 ft·lb f (95 N·m).
Figure 4.111: Driveline Hardware
147910 169 Revision A
