MAINTENANCE AN D SERVICING

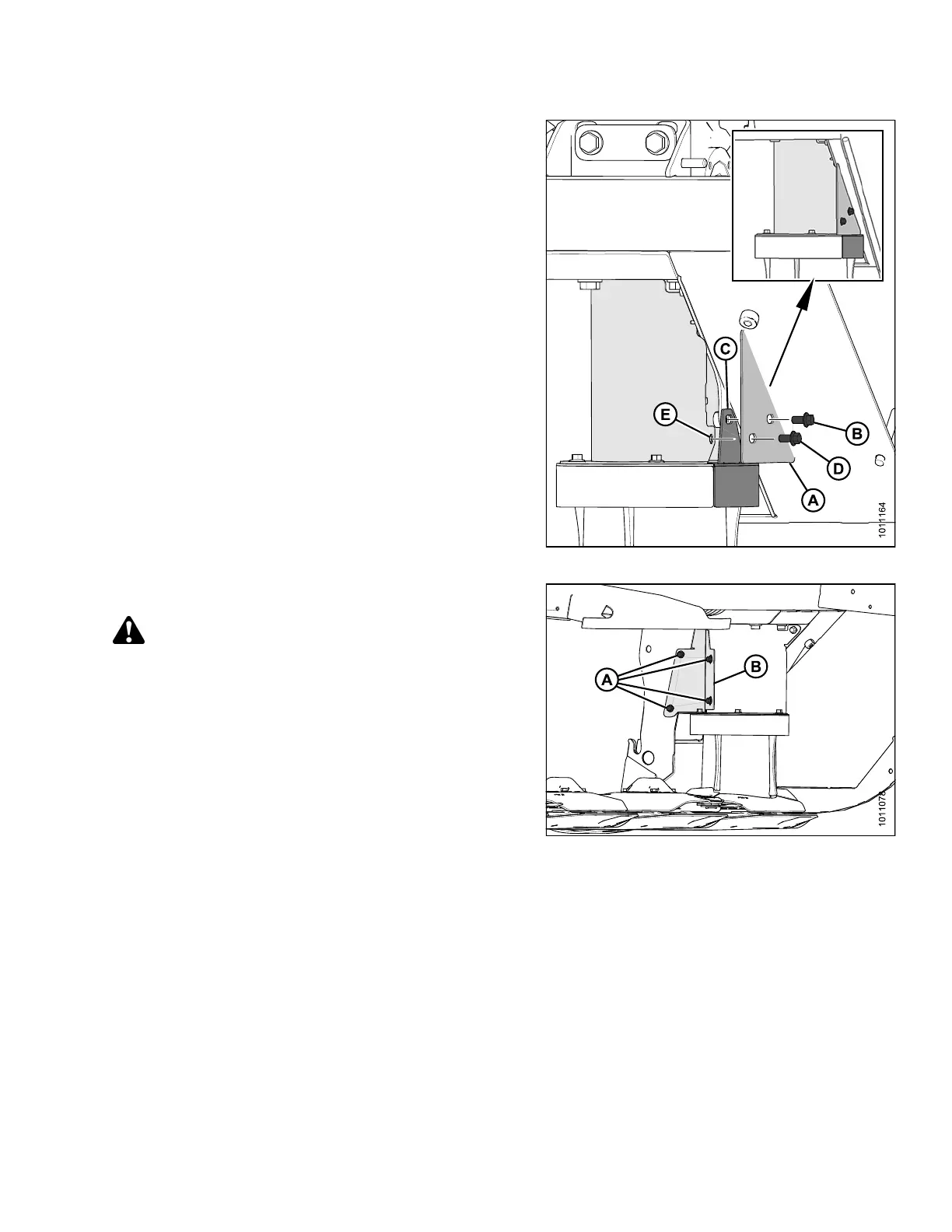

10. Install cover plate (A), insert top M10 hex flange head
bolt (B) through cover plate and top plate (C), and
install lower M10 hex flange head bolt (D) through
cover plate and vertical shield (E). Tighten bolts.
Figure 4.
115: Cover Plate
11. Install vertical drive shield (B) using four M10 hex
flange head bolts (A).
WARNING
Ensure cutterbar is completely clear of foreign
objects. Foreign objects can be ejected with
considerable force when the machine is started and
may result in serious injury or machine damage.
Figu
re 4.116: Vertical Drive Shield
147910
17
1
