MAINTENANCE AN D SERVICING
1. Stop engine, and remove key from ignition.
2. Release two lever clamps (A) using a screwdriv er or
similar prying tool.
3. Unhook safety chain (B) from hitch, and ensure that
chain is secured to the shield cone an d metal plate ( C).

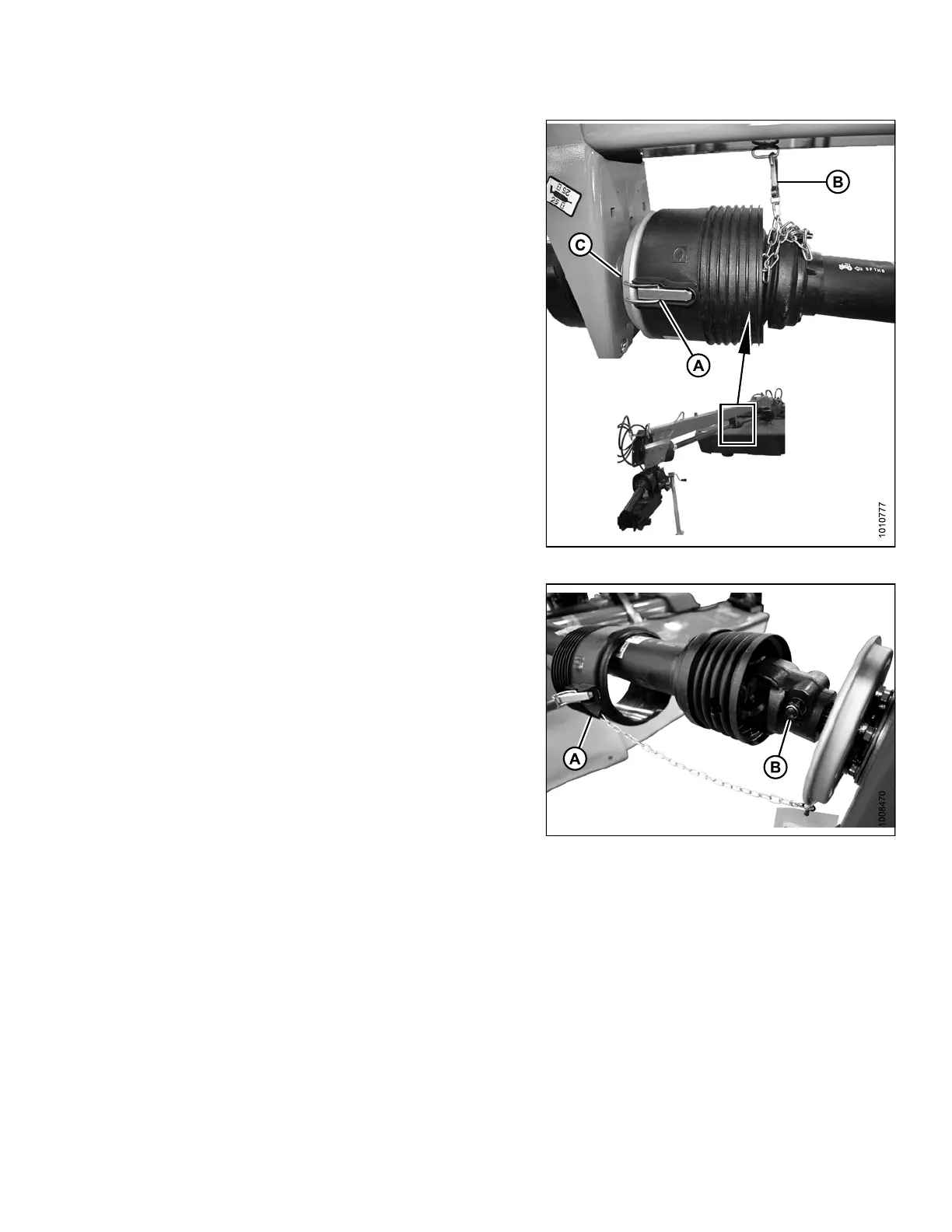

Figure 4.
169: Driveline Shield Cone
4. Remove driveline shield cone from metal plate,
andslidedrivelineshieldcone(A)awayfrom
center support.
5. Loosen nut (B) and use a hammer to release yoke from
taper pin lock.
Figur
e 4.170: U-Joint
147910 193 Revision A
