MAINTENANCE AN D SERVICING

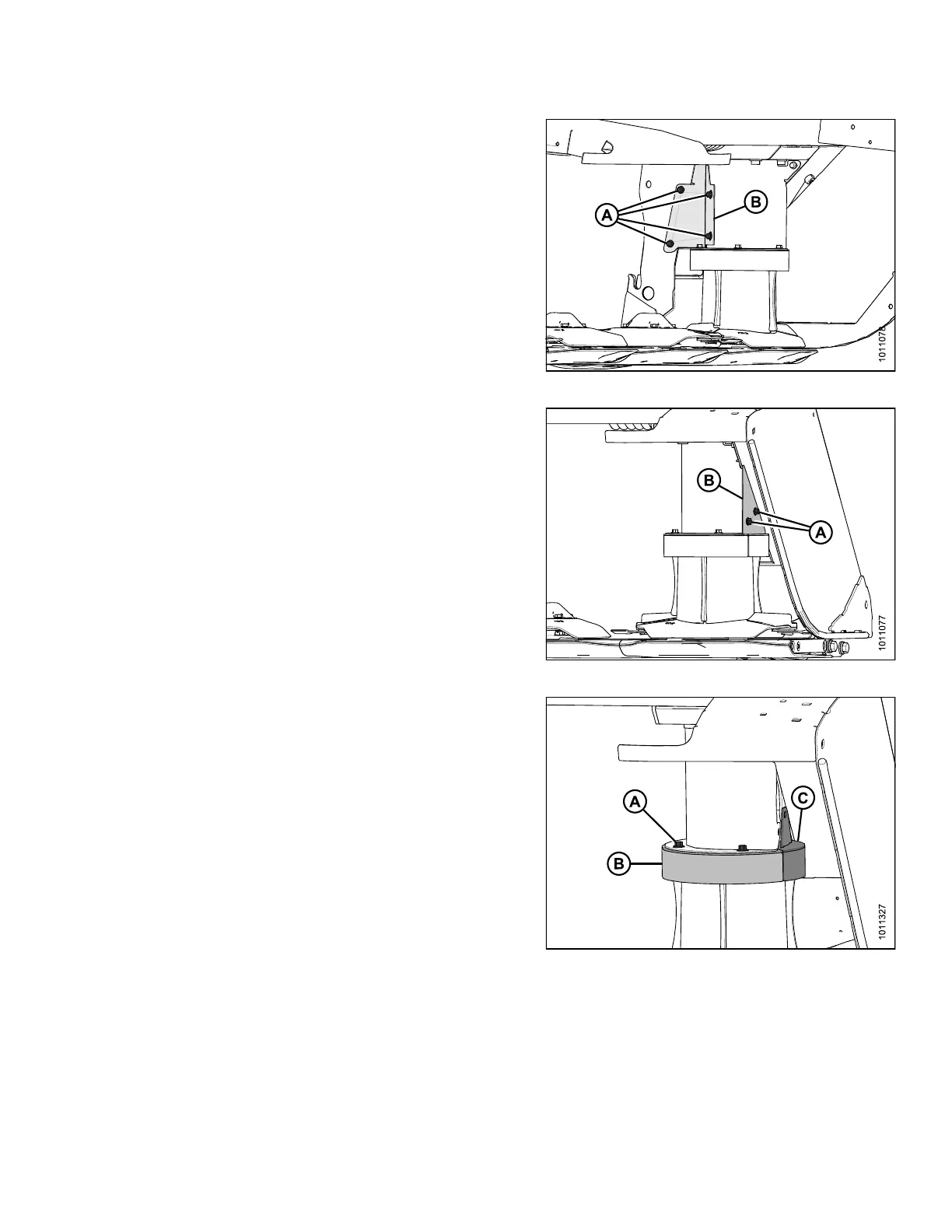

3. Remove four M10 hex flange head bolts (A) and
remove vertical drive shield (B).
Figure 4.214: Vertical Drive Shield
4. Remove two M10 hex flange head bolts (A) and
remove c over plate (B).
Figure 4.215: Cover Plate
5. Remove four M10 hex flange head bolts (A), and
remove top pla te (B) and drum top (C).
Figure 4.216: Top Plate and Drum Top
147910 213 Revision A
