MAINTENANCE AN D SERVICING
11. Position top plate (B) and drum top (C) onto drum as
shown, and secure with four M10 hex flange head
bolts (A).

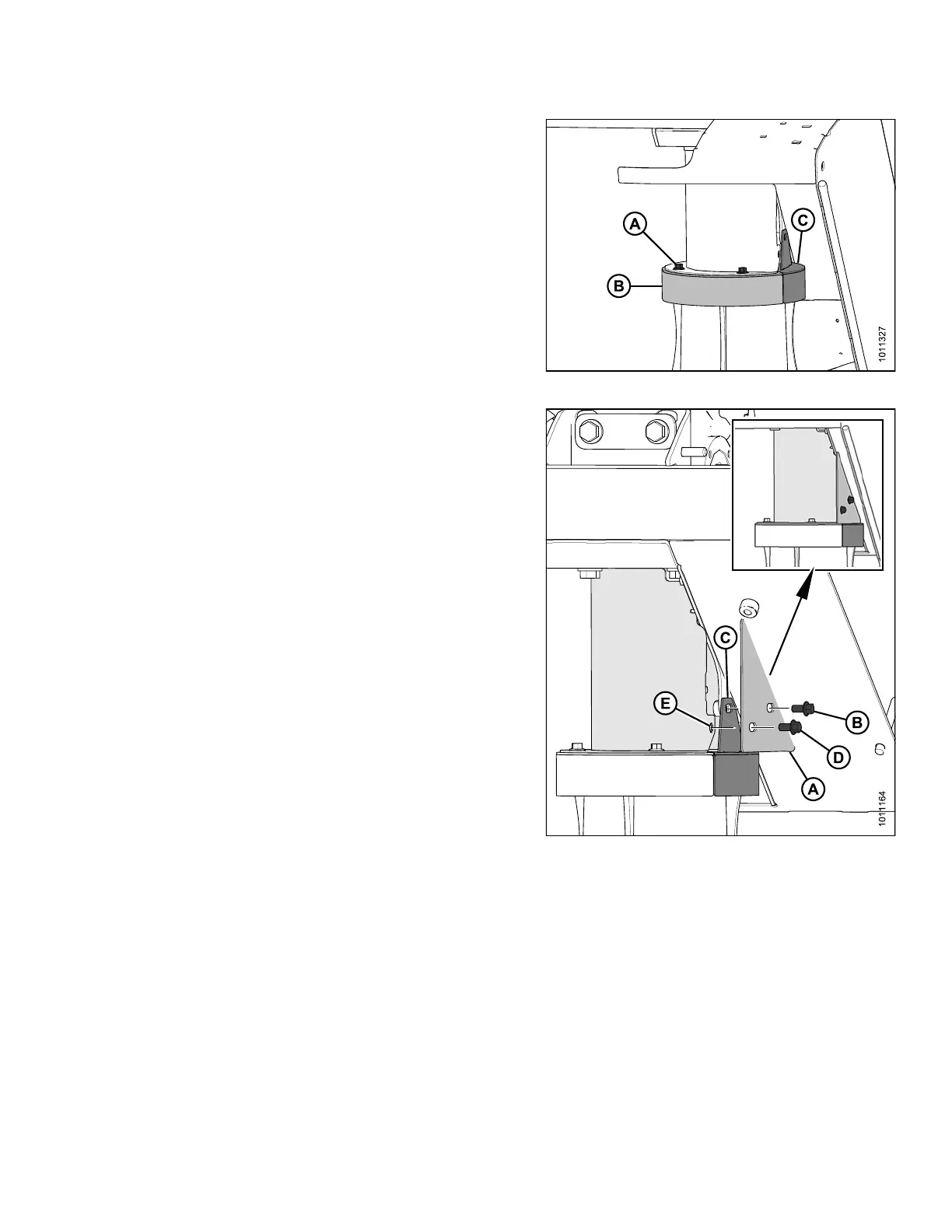

Figure 4.220: Top Plate and Drum Top
12. Install cover plate (A), insert top M10 hex flange head
bolt (B) through cover plate and top plate (C), and
install lower M10 hex flange head bolt (D) through
cover plate and vertical shield (E). Tighten bolts.
Figur
e 4.221: Cover Plate
