MAINTENANCE AND SERVICING
1. Lower mower conditioner fully, stop engine, and
remove key.
2. Engage lift cylinder lock-out valves. Refer to 3.1.1
Engaging Locks, page 31.
3. Remove left and right driveshields (A). Refer to 4.8.1
Removing Driveshields, page 224.

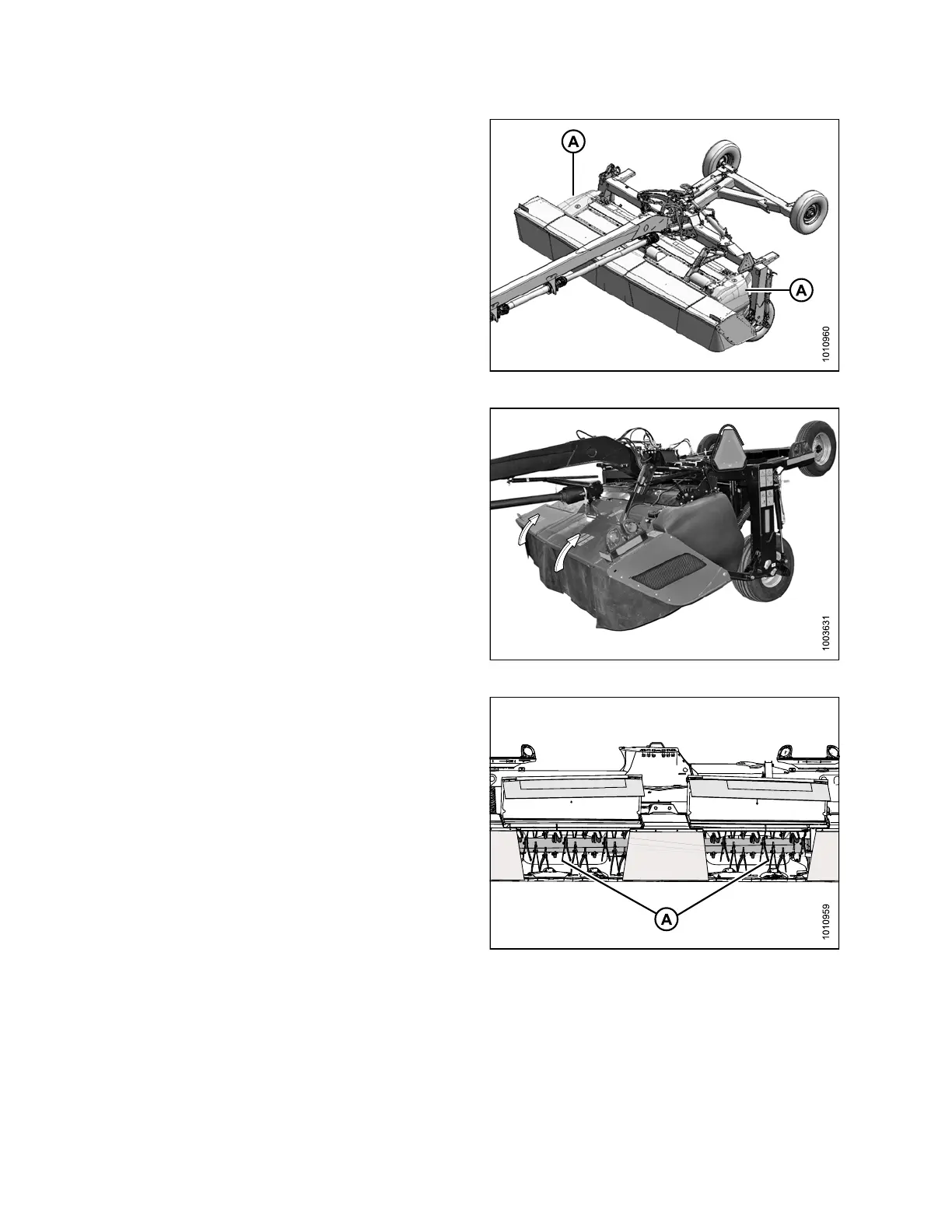

Figure 4.252: Driveshields
4. Open cutterbar doors. Refer to 3.3.1 Opening
Cutterbar Doors, page 36.
Figure 4.253: Cutterbar Doors
5. Check rotor fingers (A) for damage and replace any
bent fingers to prevent rotor imbalance.
Figure 4.254: Rotor Fingers
147910 230 Revision A
