MAINTENANCE AN D SERVICING

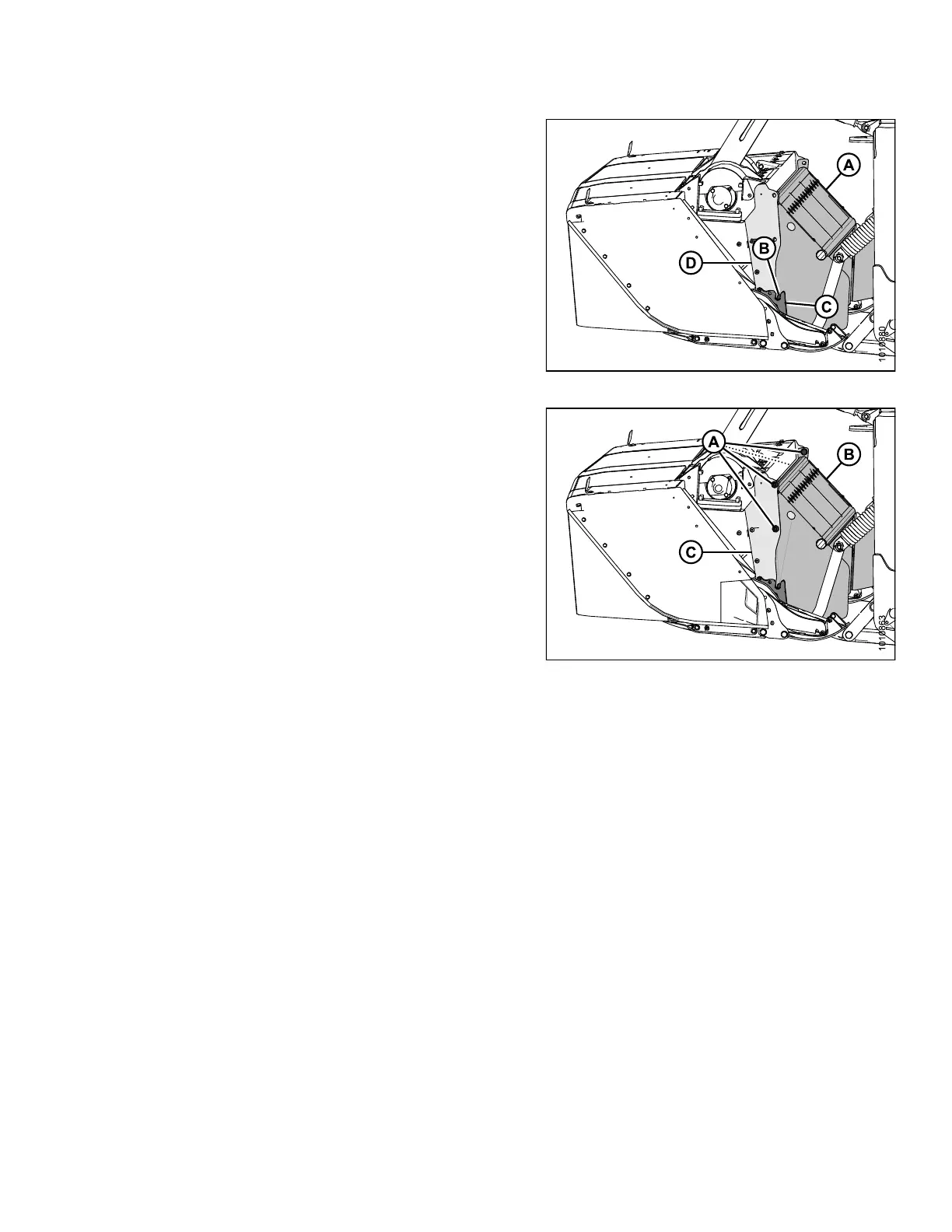

4. Position shielding (A) until pins (B) engage the slots
in cutterbar support (C) and the bolt holes align with
panel (D).
Figure 4.298: Positioning the Shield on Mower
5. Install four M16 hex head bolts (A), nuts, and flat
washers to secure shield (B) to the panel (C). Ensure
bolt heads face inboard.
Figure 4.299: Shield (No Conditioner)
147910
24
7
Revision A
