OPERATION

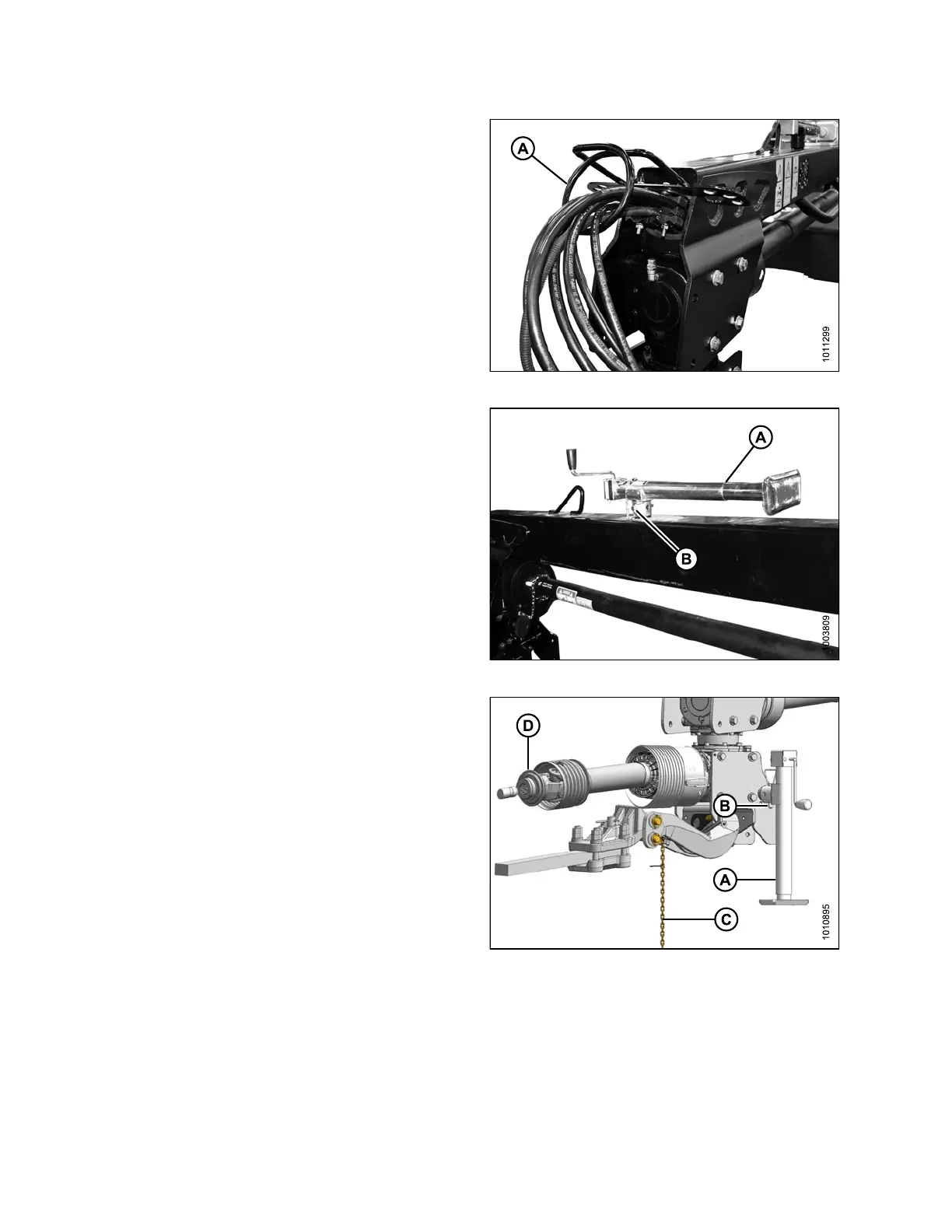

7. Disconnect hydraulic hoses and electrical harness
from the tractor and store hose ends and electrical
connector in hose support (A) at front of hitch
as shown.
Figure 3.40: Hose Support
8. Pull pin (B
) securing jack (A) at storage location.
Figure 3.41: Jack Storage
9. Move ja
ck (A) to working position at front of hitch and
secur
ewithpin(B).
10. Lower
jack to take weight off tractor drawbar.
11. Disco
nnect safety chain (C) from drawbar and store on
mower
conditioner hitch.
12. Pull
back collar (D) on driveline, slide couple r off
trac
tor power take-off shaft, and rest driveline on hook
(not
shown).
Figure 3.42: Driveline and Jack
147910 52 Revision A
