OPERATION
10. Hold stand (A), and pull lock (B) to disengage stand.

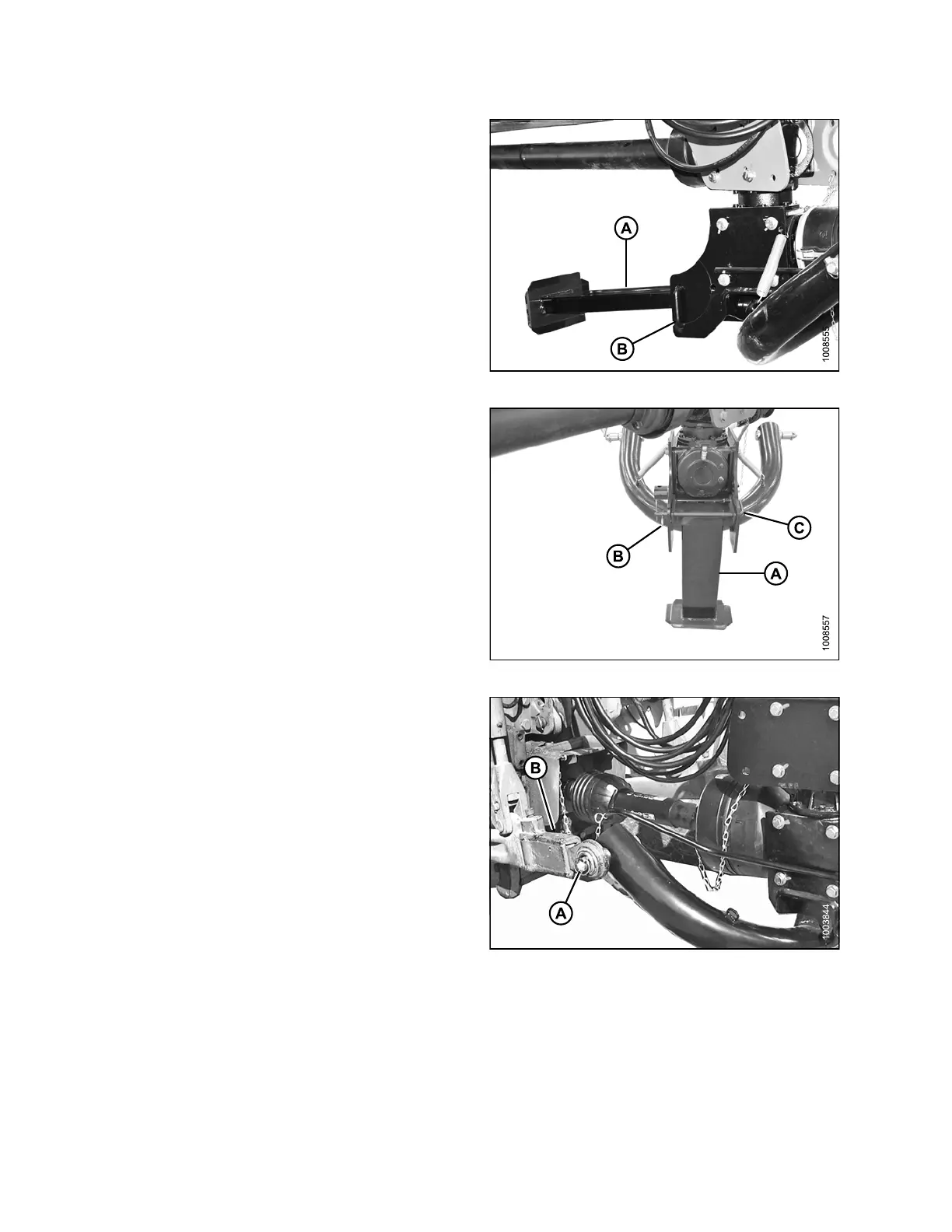

Figure 3.49: Hitch Stand and Lock
11. Lower stand (A), rotate lock (C) counterclockwise to
horizontal position, and push to engage stand.
12. Check that stand (A) is locked.
13. Secure lock (C) with hair pin (B).
14. Start tractor and lower hitch to take weight off tractor
hitch p oints.
15. Shut down tractor and remove key from ignition.
Figure 3.50: Hitch Stand in Lowered Position
16. Remove lynch pins (A) and washers and swing tractor
arms (B) away from hitch adapter.
NOTE:
If trac tor is equipped with a quick hitch system, it is
NOT necessary to remove pins (A).
17. Repla
ce lynch pins (A) and washers in mower
cond
itioner hitch.
18. Slow
ly drive tractor away from mower conditioner.
Figure 3.51: Lynch Pins and Tractor Arms
147910 56 Revision A
