EXHAUST SYSTEM
F1–13
F1
OUTLINE
A6E391440000201
• The exhaust system is essentially carried over from that of the current Mazda6 (GG), except for the following.
(See Mazda6 Training Manual 3359-1*-02C.)
— The TWC and the presilencer have been become separate parts, and removal/installation procedure has
been changed.
— The layout of the front HO2S has been changed.
End Of Sie

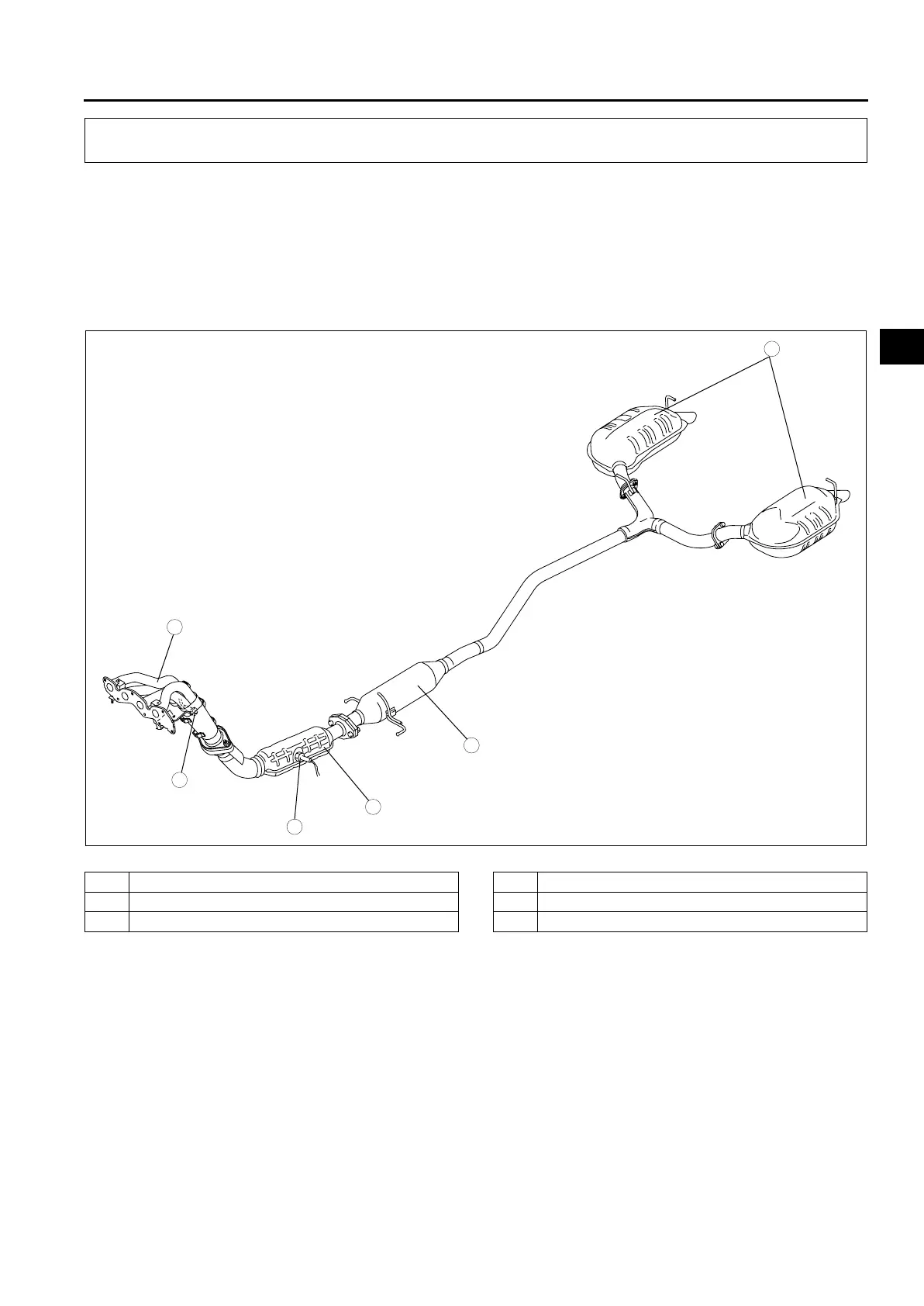

STRUCTURAL VIEW
A6E391440000202
.
End Of Sie
EXHAUST SYSTEM
5
4
3
6
1
2
A6E39142001
1 Exhaust manifold
2 HO2S (front)
3 HO2S (rear)
4TWC
5 Presilencer
6 Main silencer
