K2–86
AUTOMATIC TRANSAXLE
INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION
A6E571421550203
1. Remove the automatic transaxle. (See K2–99 AUTOMATIC TRANSAXLE AND TRANSFER REMOVAL/
INSTALLATION.)
2. Remove the input/turbine speed sensor. (See Automatic Transaxle Workshop Manual JA5A-EL.)
3. Install the input/turbine speed sensor. (See Automatic Transaxle Workshop Manual JA5A-EL.)
4. Install the automatic transaxle. (See K2–99 AUTOMATIC TRANSAXLE AND TRANSFER REMOVAL/
INSTALLATION.)
End Of Sie
INTERMEDIATE SENSOR INSPECTION
A6E571417400202
On-Vehicle Inspection
1. Disconnect the terminal component No.2
connector.
2. Measure resistance between the terminals C and
D.
• If not as specified, inspect the intermediate
sensor. (See K2–86 Inspection of Individual
Part.)
Resistance (ATF temperature: 20 °C {68 °F})
513—627 ohms
3. Connect the terminal component No.2 connector.
Inspection of Individual Part
1. Remove the intermediate sensor. (See K2–86 INTERMEDIATE SENSOR REMOVAL/INSTALLATION.)
2. Measure resistance between the terminals of the
intermediate speed sensor.
• If not as specified, replace the intermediate
sensor.
• If it is normal, replace the harness.
Resistance (ATF temperature: 20 °C {68 °F})
513—627 ohms
3. Install the intermediate sensor. (See K2–86
INTERMEDIATE SENSOR REMOVAL/
INSTALLATION.)
End Of Sie
INTERMEDIATE SENSOR REMOVAL/INSTALLATION
A6E571417400203
1. Remove the automatic transaxle. (See K2–99 AUTOMATIC TRANSAXLE AND TRANSFER REMOVAL/
INSTALLATION.)
2. Remove the intermediate sensor. (See Automatic Transaxle Workshop Manual JA5A-EL.)
3. Install the intermediate sensor. (See Automatic Transaxle Workshop Manual JA5A-EL.)
4. Install the automatic transaxle. (See K2–99 AUTOMATIC TRANSAXLE AND TRANSFER REMOVAL/
INSTALLATION.)
End Of Sie

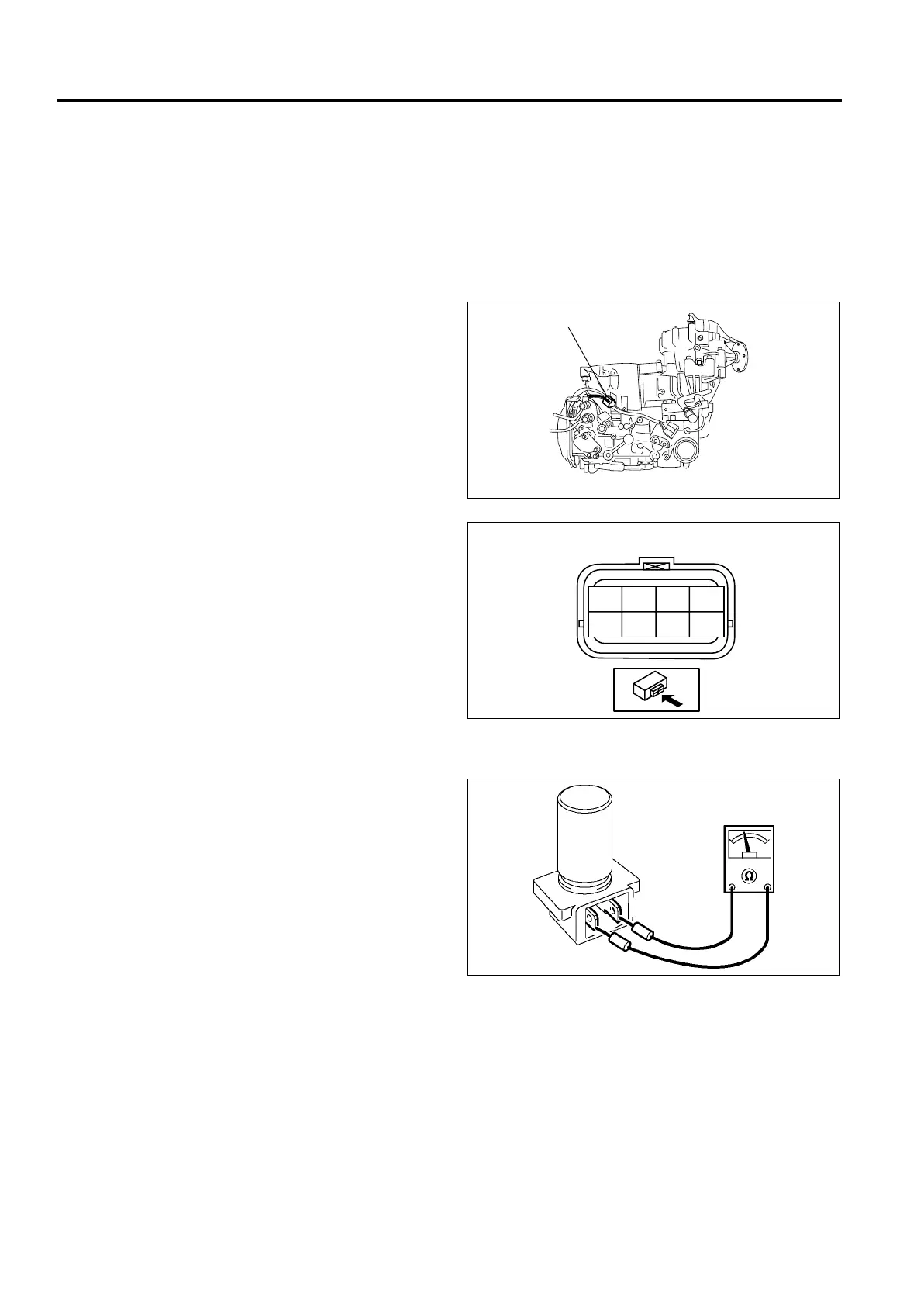

TERMINAL COMPONENT No.2
A6E5714W117
ACEG
BDFH
A6E5714W118
AMU0517W051
