CLUTCH UNIT
H–7
H

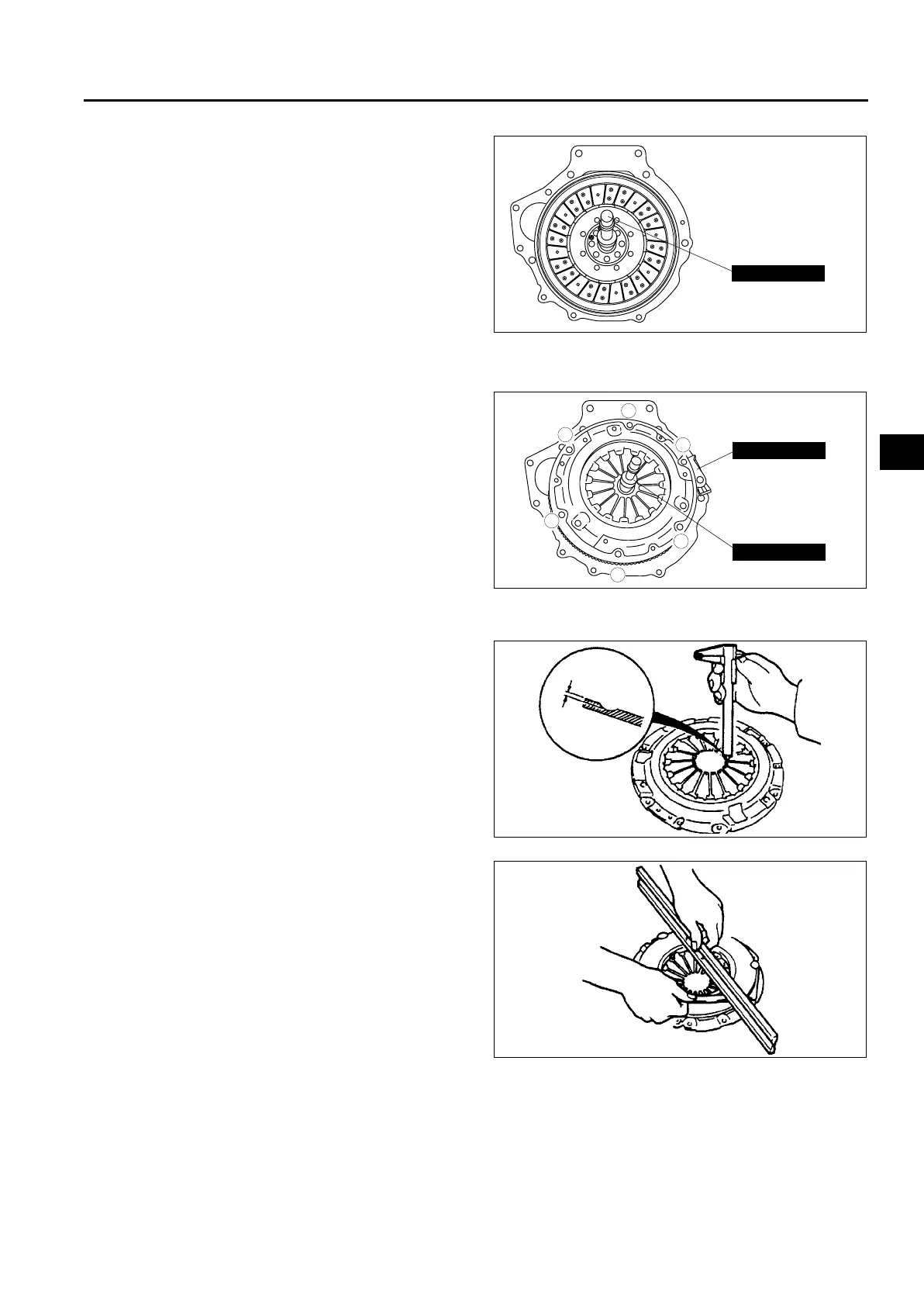

Clutch Disc Installation Note
1. Hold the clutch disc position using the SST.
Clutch Cover Installation Note
1. Install the SSTs.
2. Tighten the bolts evenly and gradually in a
crisscross pattern.
Tightening torque
25—33 N·m {2.6—3.3 kgf·m, 19—24 ft·lbf}
End Of Sie
CLUTCH COVER INSPECTION (A65M-R MANUAL TRANSAXLE MODELS)
A6E492016410201
1. Measure the wear of the diaphragm spring
fingers.
• If not as specified, replace the clutch cover.
Depth
0.6 mm {0.024 in} max.
2. Measure the flatness of the pressure plate with a
straight edge and a feeler gauge.
• If not as specified, replace the clutch cover.
Maximum clearance
0.3 mm {0.012 in}
3. When checking the diaphragm spring fingers,
mount a dial indicator on the cylinder block.
49 SE01 310A
A6E4920W014
5
4
3
49 SE01 310A
49 E011 1A0
6
1
2
A6E4920W015
XME4920W010
XME4920W011
