Mazda Mazda6 - Structural View

EMISSION SYSTEM
F2–15
F2

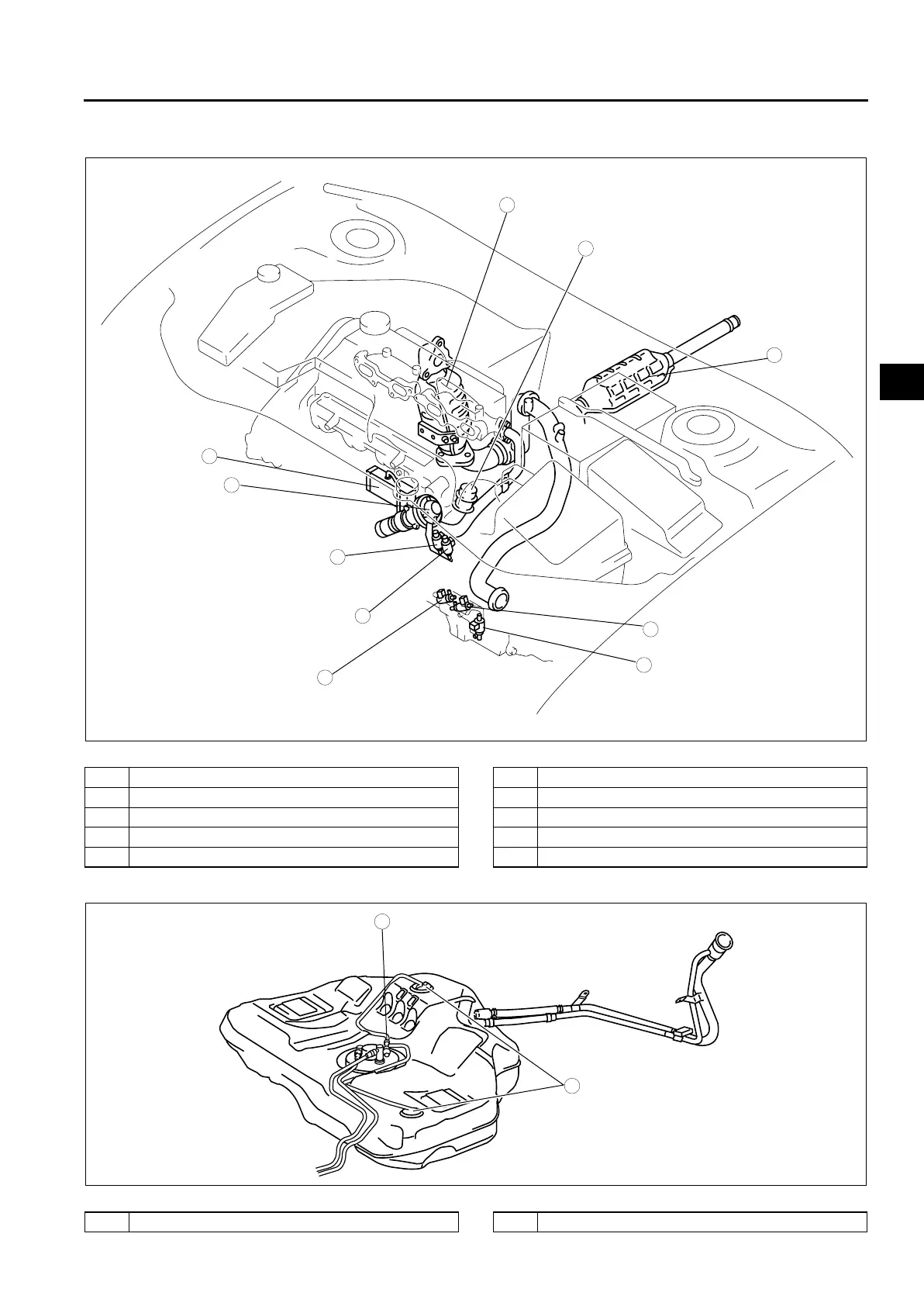

STRUCTURAL VIEW
A6E401601007202
Engine room side
.
Fuel tank side
.
9
8
7
5
4
3
10
6
2
1
A6E40162018
1EGR water cooler
2EGR valve
3 Intake shutter solenoid valve (full)
4 Intake shutter solenoid valve (half)
5 EGR solenoid valve (vacuum)
6 Warm up oxidation catalytic converter
7 Intake shutter valve actuator
8 Oxidation catalytic converter
9 EGR solenoid valve (vent)
10 EGR control solenoid valve
1
2
A6E40162019
1 Rollover valve 2 Check valve (two-way)
