EXHAUST SYSTEM
F2–57
F2
EXHAUST SYSTEM INSPECTION
A6E401440000203
1. Start the engine and inspect each exhaust system component for exhaust gas leakage.
• If leakage is found, repair or replace as necessary.
End Of Sie
EXHAUST SYSTEM REMOVAL/INSTALLATION
A6E401440000204
Warning
• When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the
engine and wait until they are cool before removing the exhaust system.
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
.

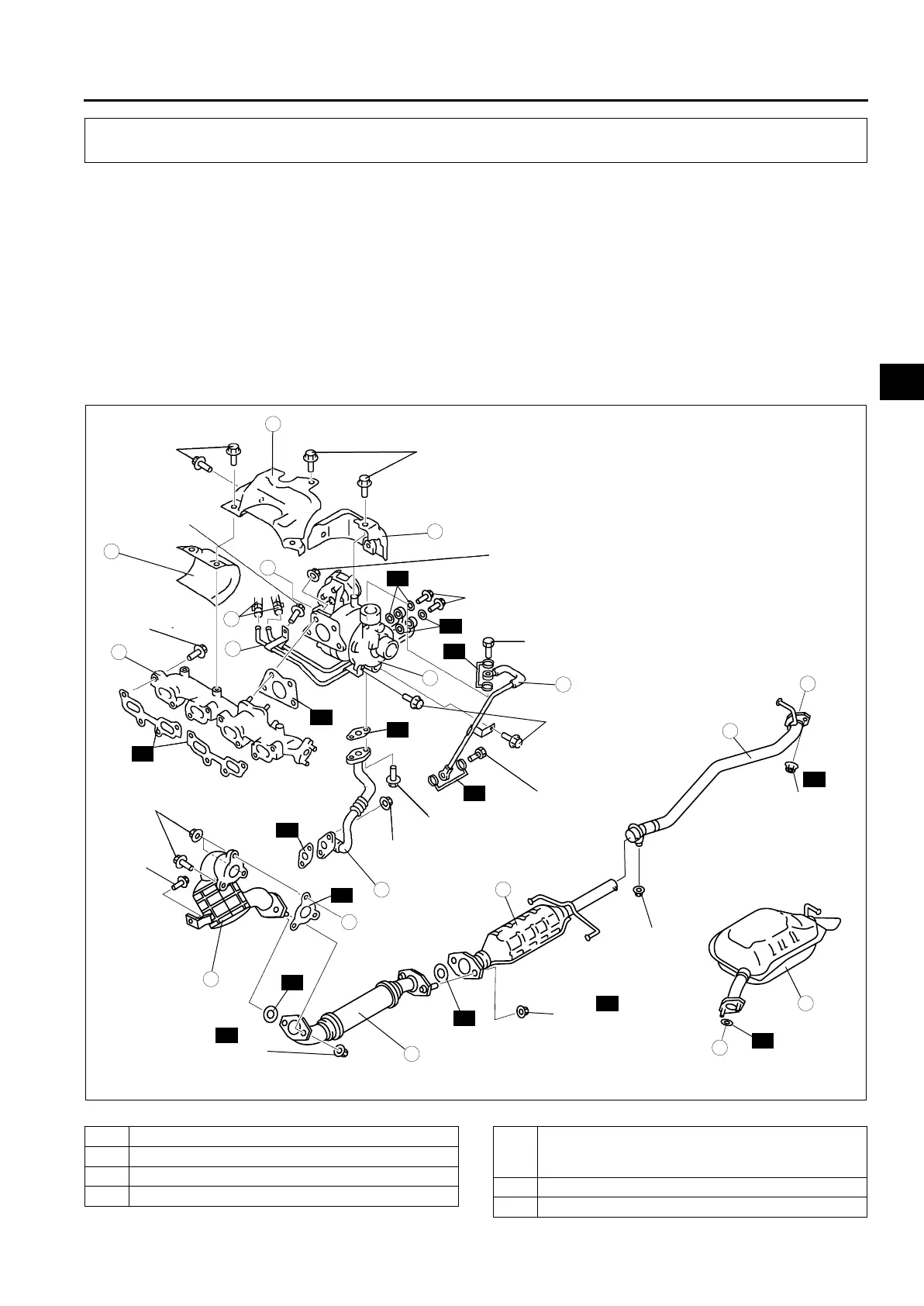

EXHAUST SYSTEM
13
B
B
A
A
N·m {kgf·m, ft·lbf}
7.9—10.7 N
·m
{80—110 kgf·cm,
70—94 in·lbf}
7.9—10.7 N
·m
{80—110 kgf·cm,
70—94 in·lbf}
38—51
{3.9—5.2,
29—37}
7.9—10.7 N·m
{80—110 kgf·cm,
70—94 in·lbf}
38—51
{3.9—5.2,
29—37}
38—51
{3.9—5.2,
29—37}
21.6—26.5
{2.2—2.7,
16.0—19.5}
8.9—12.7 N
·m
{90—130 kgf·cm,
79—112 in·lbf}
8.9—12.7 N·m
{90—130 kgf·cm,
79—112 in·lbf}
43—60
{4.3—6.1, 31—44}
40.3—54.7
{4.11—5.57,
29.8—40.3}
43—60
{4.3—6.1, 31—44}
9.1—14.3 N·m
{93—145 kgf·cm,
81—126 in·lbf}
11.8—17.6
{1.2—1.7, 8.7—12.9}
15.7—23.5
{1.6—2.3, 11.6—17.3}
7.9—10.7 N·m
{80—110 kgf·cm,
70—94 in·lbf}
38.2—46.1
{3.9—4.7, 28—34}
R
R
R
R
R
R
R
R
R
R
R
R
R
9
8
7
5
4
3 10
11
12
6
1
2
14
R
R
A6E40142006
1 Main silencer
2 Middle pipe
3 Oxidation catalytic converter
4 Front pipe
5 Warm up oxidation catalytic converter
(See F2–58 Warm Up Oxidation Catalytic Converter
Removal Note)
6 Turbocharger insulator No. 1
7 Turbocharger insulator No. 2
