K2–46
AUTOMATIC TRANSAXLE

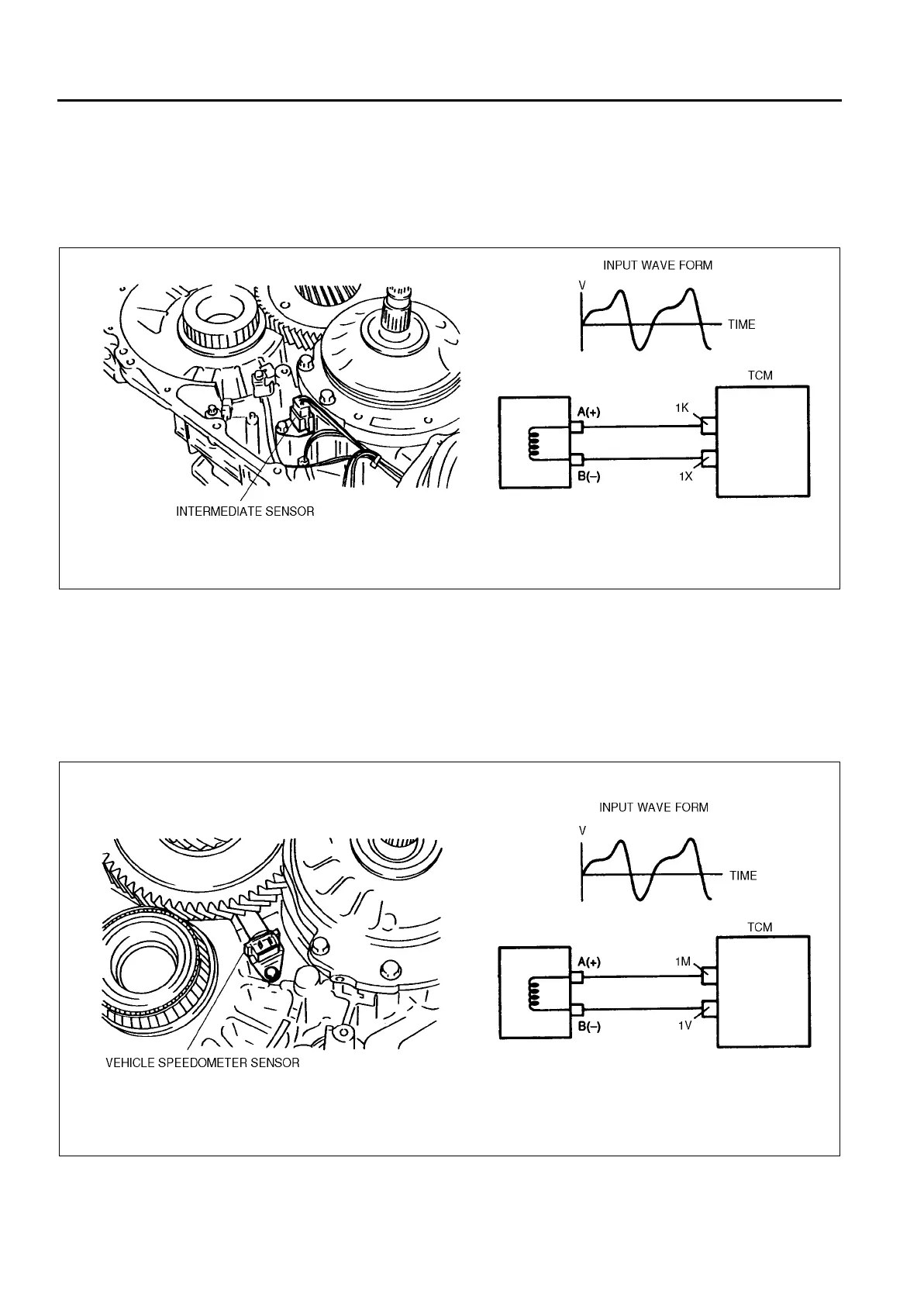

INTERMEDIATE SENSOR DESCRIPTION
A6E571419550201
Function
• A intermediate sensor is located in the transaxle case and detects the rotating speed of the output gear.
Construction/Operation
• The magnetic pickup type of intermediate sensor is mounted in the transaxle case, next to the output gear. It
generates a 54-pulse signal for each rotation of the output gear, and sends this signal to the TCM.
End Of Sie
VEHICLE SPEEDOMETER SENSOR DESCRIPTION
A6E571417400201
Function
• A vehicle speedometer sensor is located in the transaxle case and detects the rotating speed of the parking
gear.
Construction/Operation
• The magnetic pickup type of vehicle speedometer sensor is mounted in the transaxle case, next to the parking
gear. It generates a 18-pulse signal for each rotation of the parking gear, and sends this signal to the TCM.
End Of Sie
