ON-BOARD DIAGNOSTIC
K2–135
K2
DTC P0713
A6E577018901209
Diagnostic procedure
DTC P0713 Transaxle fluid temperature (TFT) sensor circuit malfunction (open circuit)
DETECTION
CONDITION
• Vehicle speed is 20 km/h {12.4 mph} or greater, and signal from TFT sensor is 2.4 V or above for 300
seconds or more.
Diagnostic support note:
• This is a continuous monitor (CCM).
• MIL illuminates if TCM detects the above malfunction conditions in two consecutive drive cycles.
• PENDING CODE is available.
• FREEZE FRAME DATA is available.
• AT warning light indication.
• DTC is stored in TCM memory.
POSSIBLE
CAUSE
• TFT sensor malfunction.
• Open circuit between TFT sensor and TCM terminal 1F
• Open circuit between TFT sensor and TCM terminal 1B
• Damaged connectors between TFT sensor and TCM
• TCM malfunction
STEP INSPECTION ACTION
1 VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED
• Has FREEZE FRAME PID DATA been
recorded?
Yes Go to next step.
No Record FREEZE FRAME PID DATA on repair order, then
go to next step.
2 VERIFY RELATED REPAIR INFORMATION
AVAILABILITY
• Check for related Service Bulletins and/or on-
line repair information availability.
• Is any related repair information available?
Yes Perform repair or diagnosis according to available repair
information.
• If vehicle is not repaired, go to next step.
No Go to next step.
3 VERIFY CURRENT INPUT SIGNAL STATUS - IS
CONCERN INTERMITTENT OR CONSTANT?
• Turn ignition key to OFF.
• Connect voltmeter to TCM terminal 1F
• Turn ignition key to ON (engine OFF).
• Are TCM terminal voltage within 0.2—4.9 V?
Yes Go to intermittent concern troubleshooting procedure.
(See section F1.)
No Go to next step.

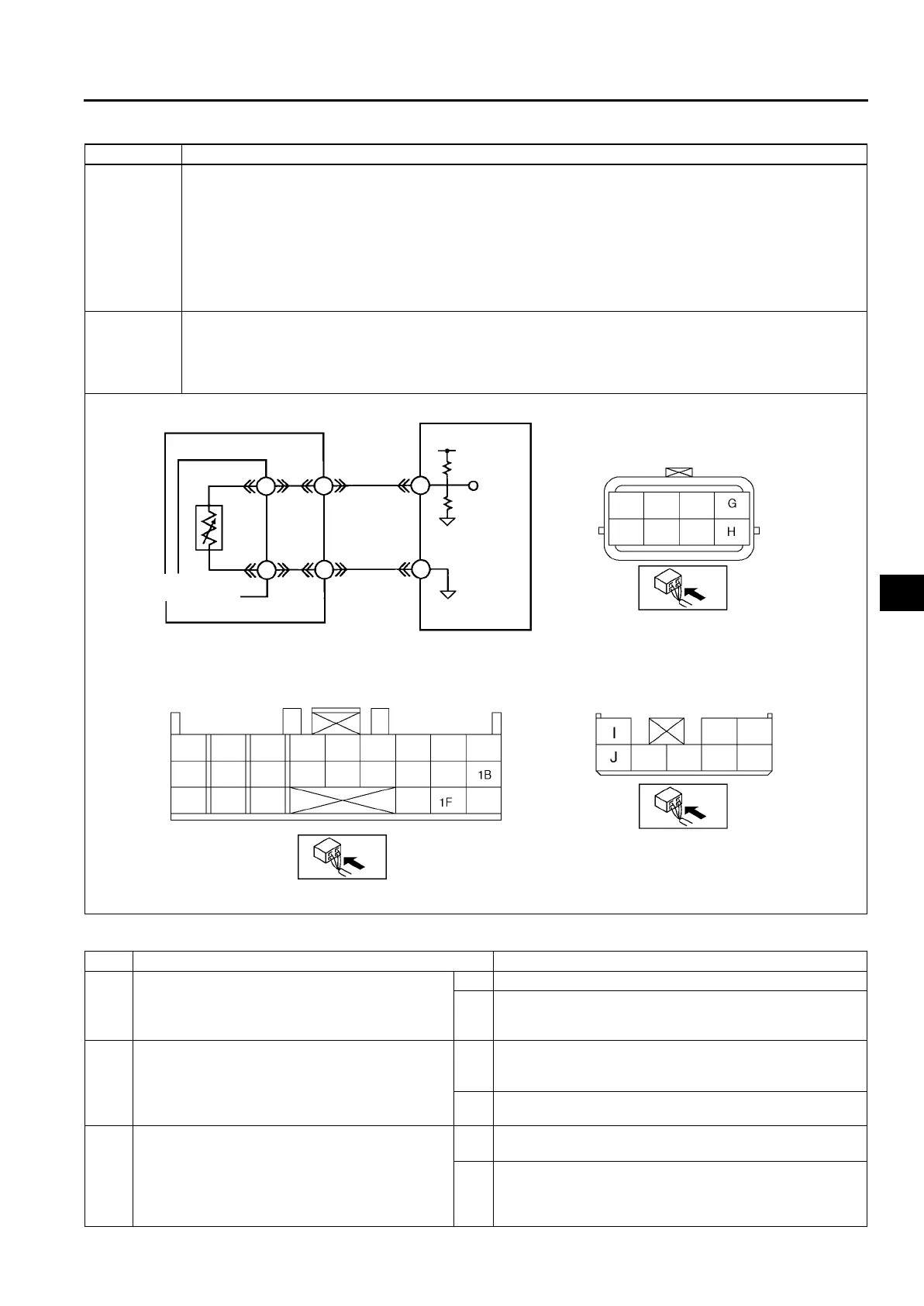

ATX
TCM
I
G1F
1B
J
H
TFT SENSOR
TCM
HARNESS SIDE CONNECTOR
TERMINAL COMPONENT NO.2(8-PIN)
HARNESS SIDE CONNECTOR
COUPLER COMPONENT NO.2(8-PIN)
PART SIDE CONNECTOR
To Next Page
