THERMOSTAT
E–9
E
THERMOSTAT REMOVAL/INSTALLATION
A6E361815171201
MZR-CD (RF Turbo)
1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Drain the engine coolant.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Fill the radiator with the specified amount and type of engine coolant.
7. Inspect the engine coolant leakage. (See E–8 ENGINE COOLANT LEAKAGE INSPECTION.)
Thermostat Installation Note
1. Verify that the positions of the jiggle pin and the projection on the gasket are as shown.
2. Install the thermostat into the thermostat case, aligning the projection on the gasket to the thermostat cover.
End Of Sie

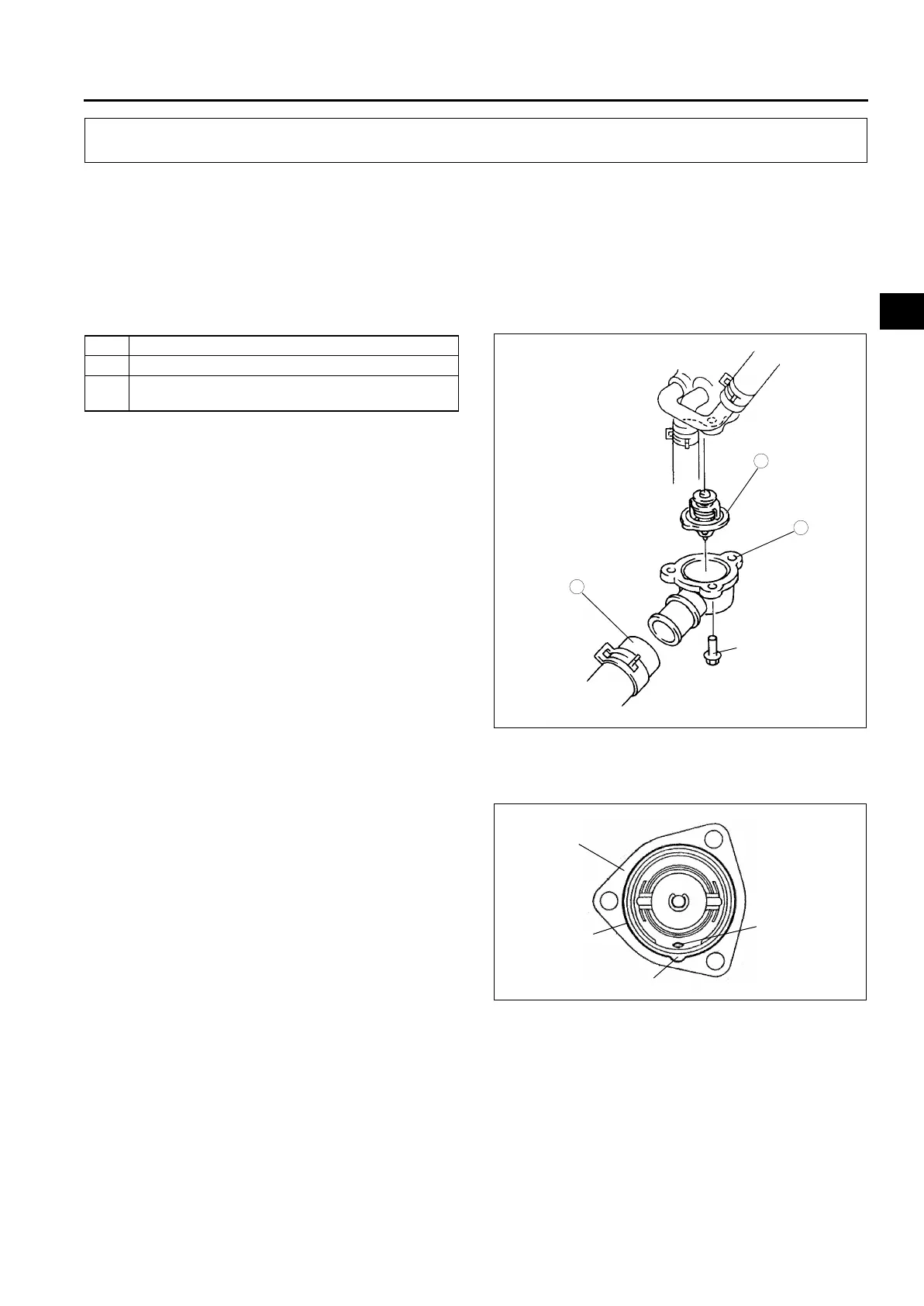

THERMOSTAT
1 Lower radiator hose
2 Thermostat cover
3Thermostat
(See E–9 Thermostat Installation Note )
3
1
2
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
A6E3618W100
THERMOSTAT
COVER
GASKET
PROJECTION
JIGGLE PIN
A6A3618W101
