K2–96
AUTOMATIC TRANSAXLE
TCC solenoid valve signal (lock up on)
• TCM terminal: 2S (+)—2P (–)
• Oscilloscope setting: 5 V/DIV (Y) 5 ms/DIV (X)
• Measuring condition: Drive the vehicle with lock
up
End Of Sie

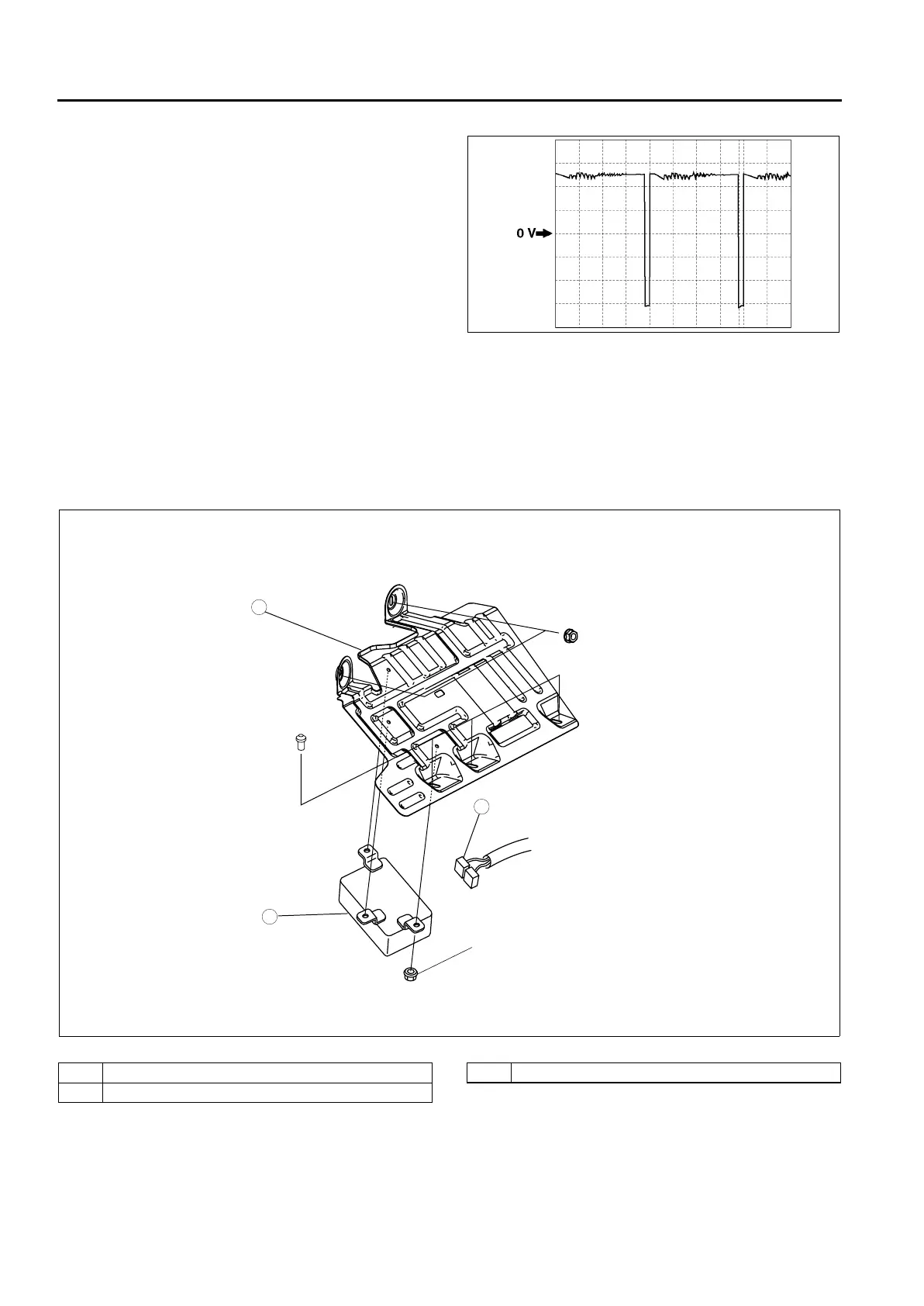

TCM REMOVAL/INSTALLATION
A6E571418901212
1. Disconnect the negative battery cable.
2. For R.H.D., perform the following procedures.
(1) Remove the front side trim (left-side).
(2) Partially peel back the flower covering.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
U.K. specs.
.
AMU0517W059
2
1
3
SET BOLT
7.8—10.8
{80—110 kgf·cm,
69.5—95.4 in·lbf}
SET NUT
A6E5714W123
1 Control unit bracket
2 TCM connector
3TCM
