Mazda Mazda6 - Accelerator Pedal Component Disassembly;Assembly; Accelerator Pedal Component Removal;Installation

F2–44
INTAKE-AIR SYSTEM
End Of Si e
ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION
A6E401041600201
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
End Of Sie
ACCELERATOR PEDAL COMPONENT DISASSEMBLY/ASSEMBLY
A6E401041600202
1. Remove the accelerator pedal component. (See F2–44 ACCELERATOR PEDAL COMPONENT REMOVAL/
INSTALLATION.)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of removal.
4. Install the accelerator pedal component. (See
F2–44 ACCELERATOR PEDAL COMPONENT
REMOVAL/INSTALLATION.)
5. Adjust the accelerator position sensor. (See F2–
73 ACCELERATOR POSITION SENSOR
ADJUSTMENT.)
6. Adjust the idle switch. (See F2–71 IDLE SWITCH
ADJUSTMENT.)
End Of Sie

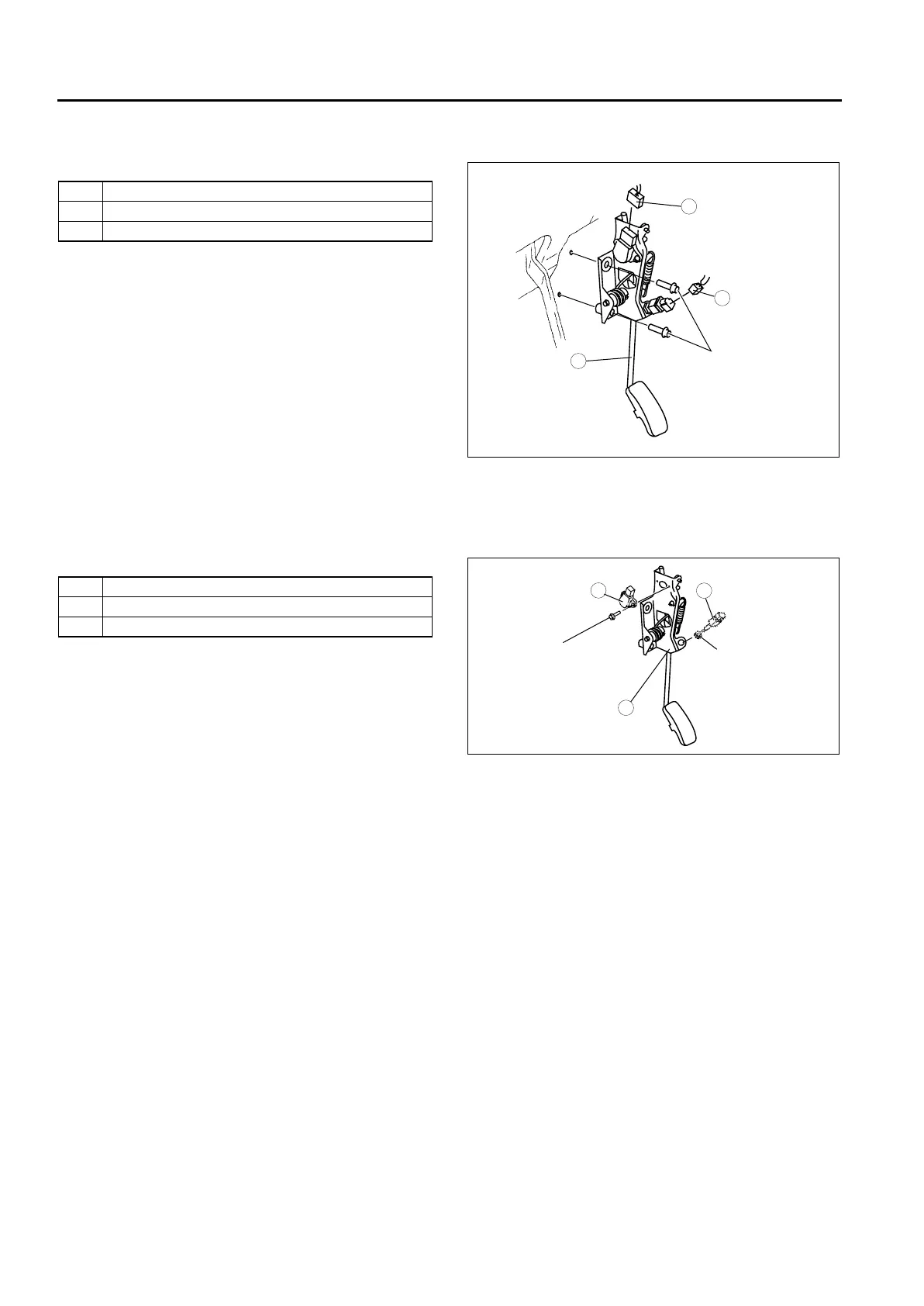

1 Accelerator position sensor connector
2 Idle switch connector
3 Pedal component
7.8—10.8 N·m
{80—110 kgf·m,
69—95 in·lbf}
3
1
2
A6E40102026
1 Idle switch
2 Accelerator position sensor
3 Accelerator pedal
3
1
2
1.57—2.35 N·m
{16.0—23.9 kgf·cm,
13.9—20.7 in·lbf}
13.7—17.6 N·m
{1.4—1.7 kgf·m,
11—12 ft·lbf}
A6E40102027
