CONVENTIONAL BRAKE SYSTEM
P–13
P

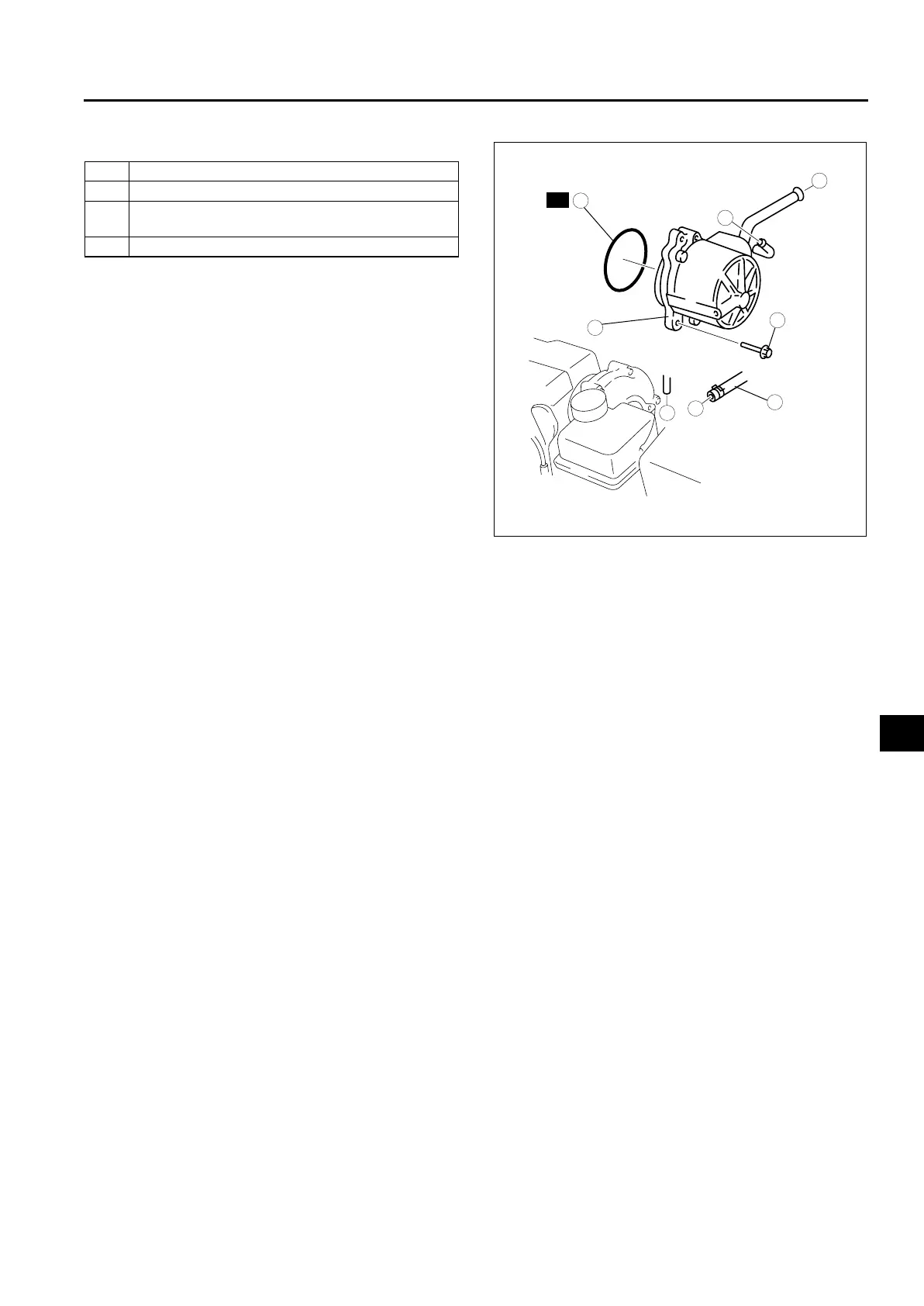

VACUUM PUMP REMOVAL/INSTALLATION (MZR-CD (RF TURBO))
A6E691218777202
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
Vacuum Pump Installation Note
1. Be careful the O-ring is not pinched when installing the vacuum pump.
End Of Sie
FRONT BRAKE (DISC) INSPECTION
A6E691233980201
Disc Plate Thickness Inspection
Caution
• Excessive runout may result if the disc plate is removed from the vehicle then machined. Machine
the disc plate while installed on the vehicle.
1. Measure the thickness of the disc plate.
• If the thickness is not within the specification, replace the disc plate.
Minimum
L8, LF (GCC specs.):
22 mm {0.87 in}
LF (European (L.H.D. U.K.) specs.),
L3, MZR-CD (RF Turbo):
23 mm {0.91 in}
Minimum thickness after machining using a brake lathe on-vehicle
L8, LF (GCC specs.):
22.8 mm {0.90 in}
LF (European (L.H.D. U.K.) specs.),
L3, MZR-CD (RF Turbo):
23.8 mm {0.94 in}
End Of Sie
1 Vacuum hose
2Bolt
3 Vacuum pump
(See P–13 Vacuum Pump Installation Note)
4 O-ring
4
3
1
B
B
A
A
2
N·m {kgf·cm, in·lbf}
18.6—25.5
{1.90—2.60,
13.8—18.8}
R
A6E6912W207
