P–14
CONVENTIONAL BRAKE SYSTEM

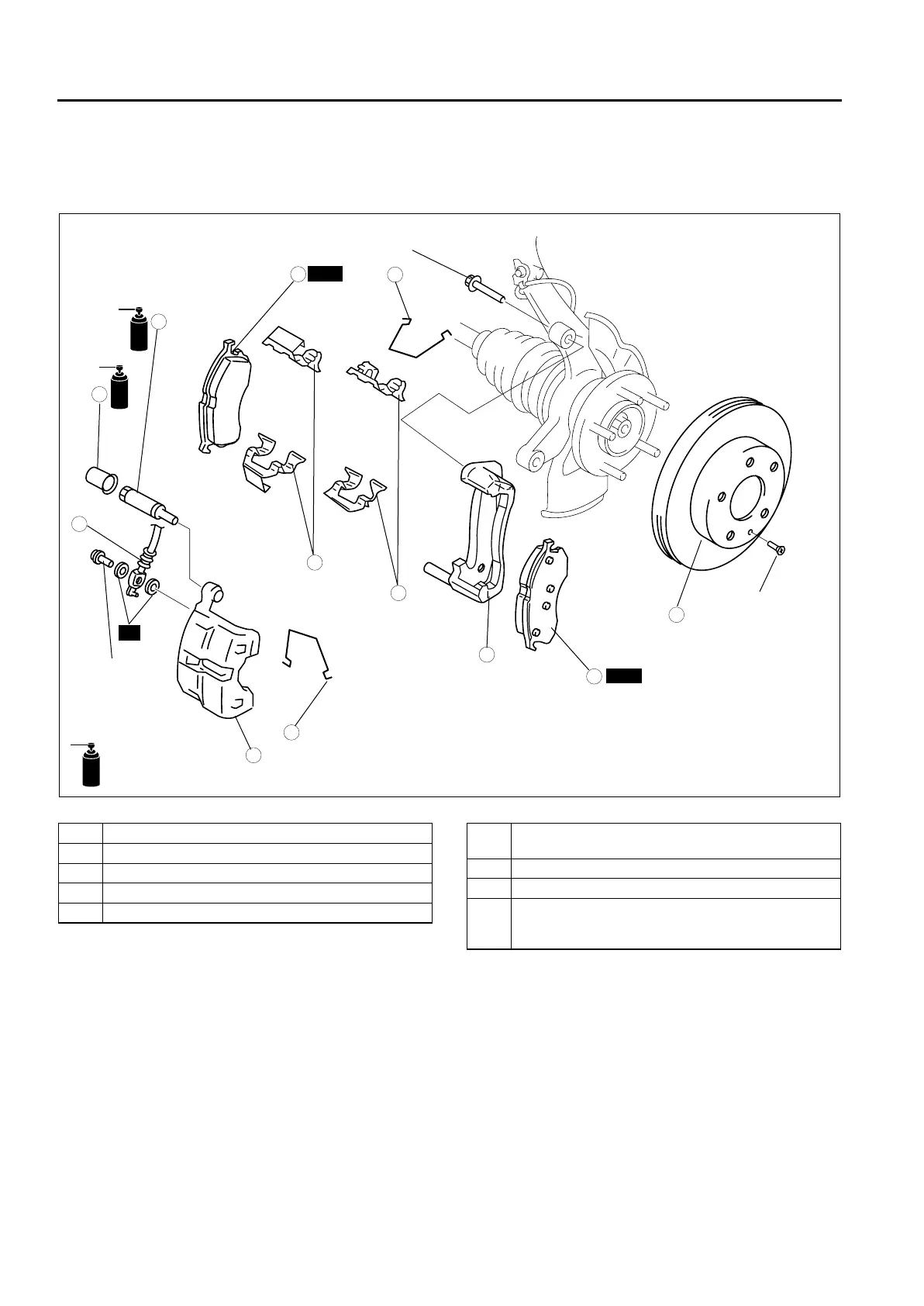

FRONT BRAKE (DISC) REMOVAL/INSTALLATION
A6E691233980202
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not
drag.
.
9
8
7
5
5
4
3
1
2
6
6
SST
SST
R
RUBBER GREASE
21.6—29.4
{2.21—3.00,
16.0—21.6}
78.4—101.9
{8.00—10.3, 57.9—75.1}
GREASE
GREASE
GREASE
9.8—14.7 N·m
{100—149 kgf·cm,
87—129 in·lbf}
7
N·m {kgf·m, ft·lbf}
L8, LF (GCC SPECS.):
44.1—49.0 {4.47—4.99, 32.4—36.1}
LF (EUROPEAN (L.H.D. U.K.) SPECS.),
L3, MZR-CD (RF TURBO):
49.0—53.9 {5.00—5.49, 36.2—39.7}
L8, LF (GCC SPECS.)
LF (EUROPEAN (L.H.D. U.K.) SPECS.),
L3, MZR-CD (RF TURBO)
A6E6912W201
1 Flexible hose
2Cap
3 Guide pin
4 Caliper
5 M-spring
6Disc pad
(See P–15 Disc Pad Installation Note)
7 Guide plate
8 Mounting support
9 Disc plate
(See P–15 Disc Plate Removal Note)
(See P–15 Disc Plate Installation Note)
