M–42
FRONT DRIVE SHAFT, REAR DRIVE SHAFT
Standard length
mm {in}

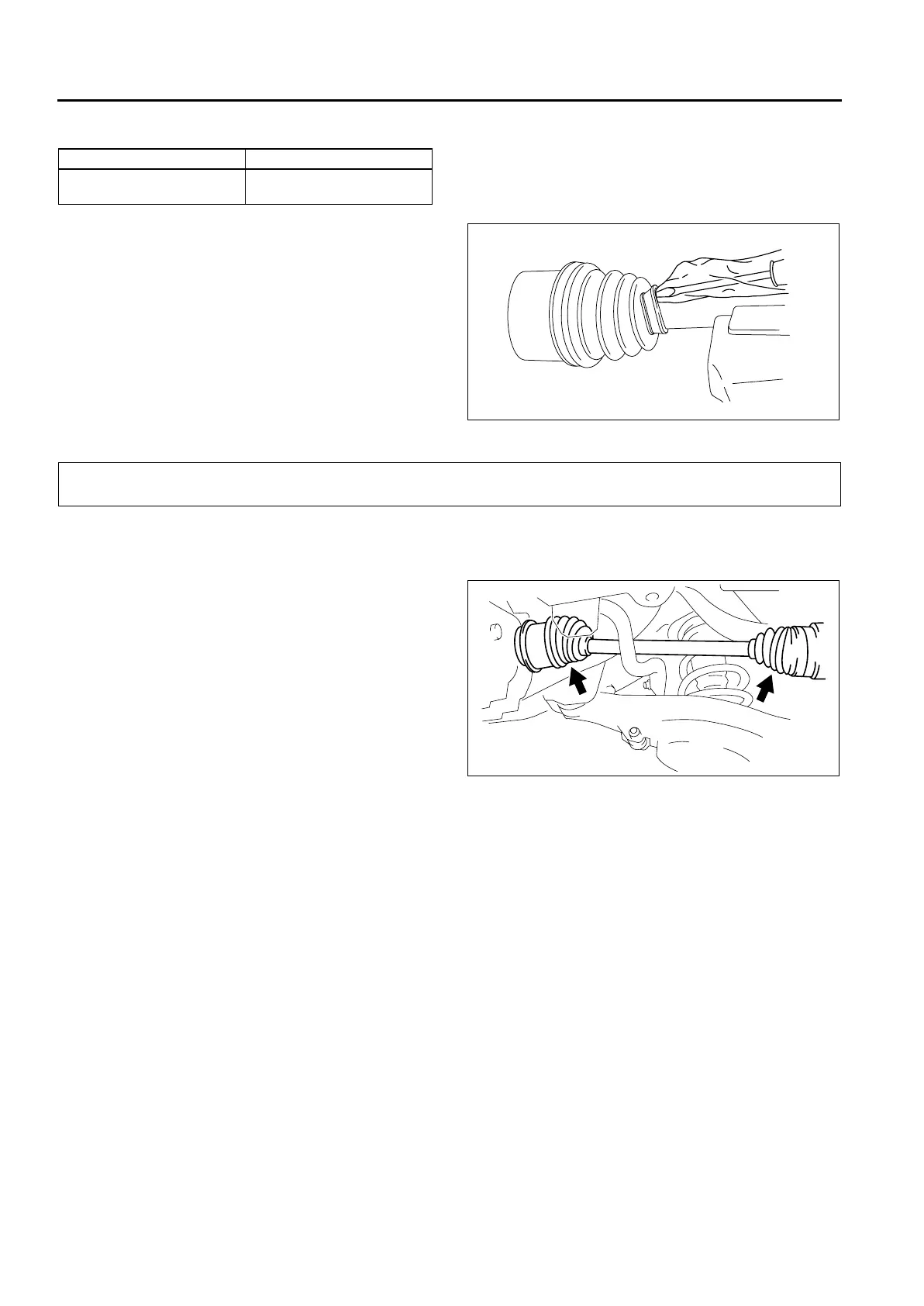

4. Release any trapped air from the boots by
carefully lifting up the small end of each boot with
a cloth wrapped screwdriver.
Caution
• Do not let grease leak.
• Do not damage the boot.
5. Verify that the drive shaft length is within the
standard.
• If not, repeat from Step 3.
End Of Sie
REAR DRIVE SHAFT PRE-INSPECTION
A6E631725500201
1. Inspect each connecting part for looseness.
• Tighten or replace parts if necessary.
2. Inspect the dust boot on the drive shaft for cracks,
damage, leaking grease, and looseness in the
boot band.
3. Inspect the drive shaft for bends, cracks, and
wear in the joints or splines.
• Repair or replace the drive shaft or boot band
if necessary.
End Of Sie
Left side Right side
667—677
{26.26—26.65}
631—641
{24.85—25.23}
A6E6316W007
REAR DRIVE SHAFT
A6J63172101
To Next Page
