Mazda Mazda6 - Dtc P1710

K2–178
ON-BOARD DIAGNOSTIC
DTC P1710
A6E577018901229
DTC P1710 GND return circuit malfunction
DETECTION
CONDITION
• TCM detects open circuit in GND return signal line from solenoid valve.
Diagnostic support note:
• This is a diagnostic support DTC (monitored one per key cycle).
• MIL does not illuminate.
• PENDING CODE is not available.
• FREEZE FRAME DATA is not available.
• AT warning light does not indication.
• DTC is stored in TCM memory.
POSSIBLE
CAUSE
• Open circuit between duty type solenoid valves terminal and TCM terminal 2P
• Damaged connector between solenoid valve and TCM
• TCM malfunction
AJ
2P
B
TCM
CPU
CPU
ATX
TCM

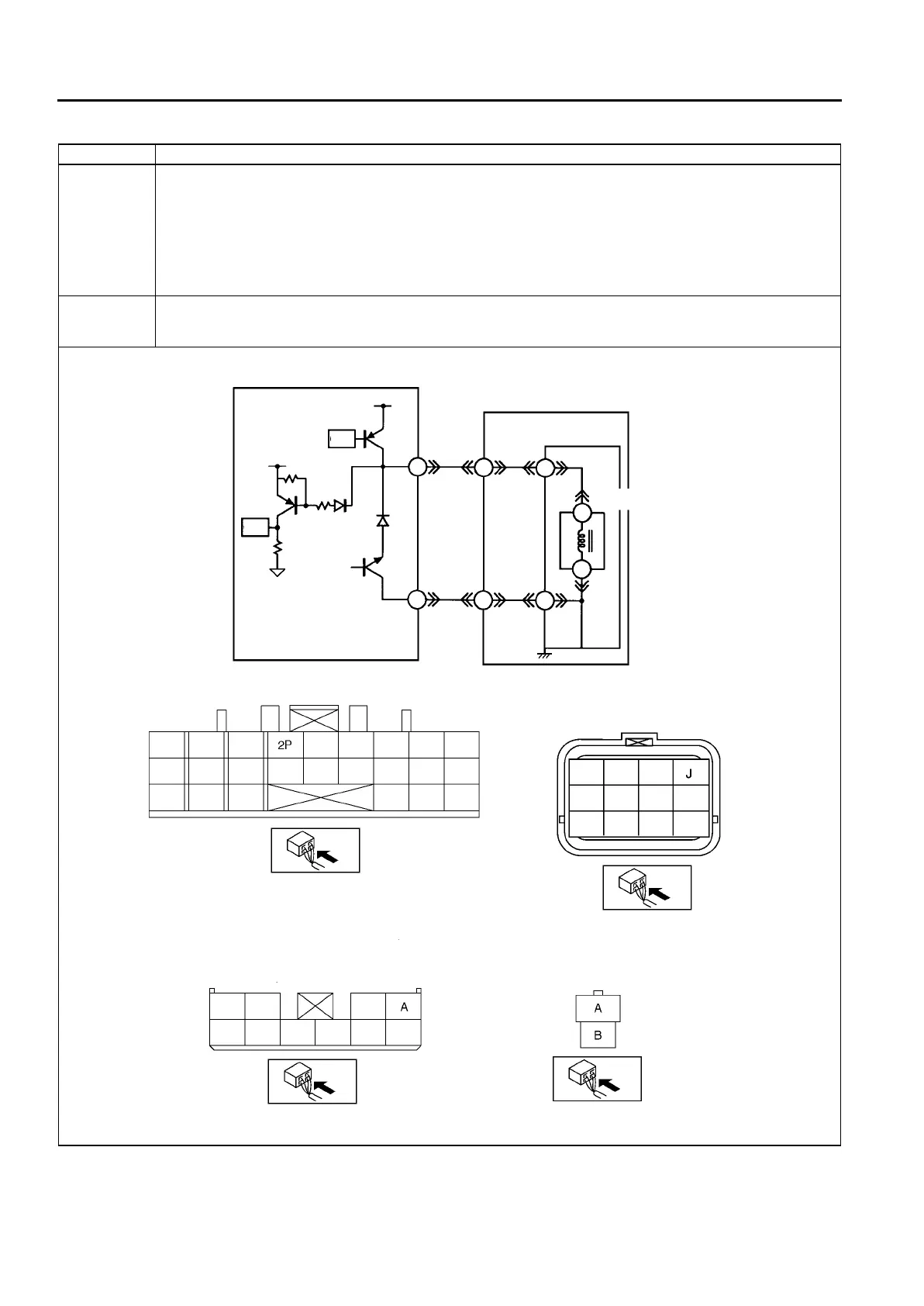

HARNESS SIDE CONNECTOR TERMINAL COMPONENT
NO.1(12-PIN)
HARNESS SIDE CONNECTOR
COUPLER COMPONENT
(10-PIN)
PART SIDE CONNECTOR
SOLENOID VALVE
SOLENOID VALVE
HARNESS SIDE CONNECTOR
