AUTOMATIC TRANSAXLE SHIFT MECHANISM
K2–119
K2
SELECTOR LEVER REMOVAL/INSTALLATION
A6E571646102202
1. Disconnect the negative battery cable.
2. Remove the battery and battery tray.
3. Remove the air cleaner compornent. (See Section F.)
4. Remove the console.
5. Remove the dashboard compleat. (See Section S.)
6. Remove the SAS control module. (See Section T.)
7. Remove the climate control unit. (See Section U.)
8. Remove the rear heat duct. (See Section U.)

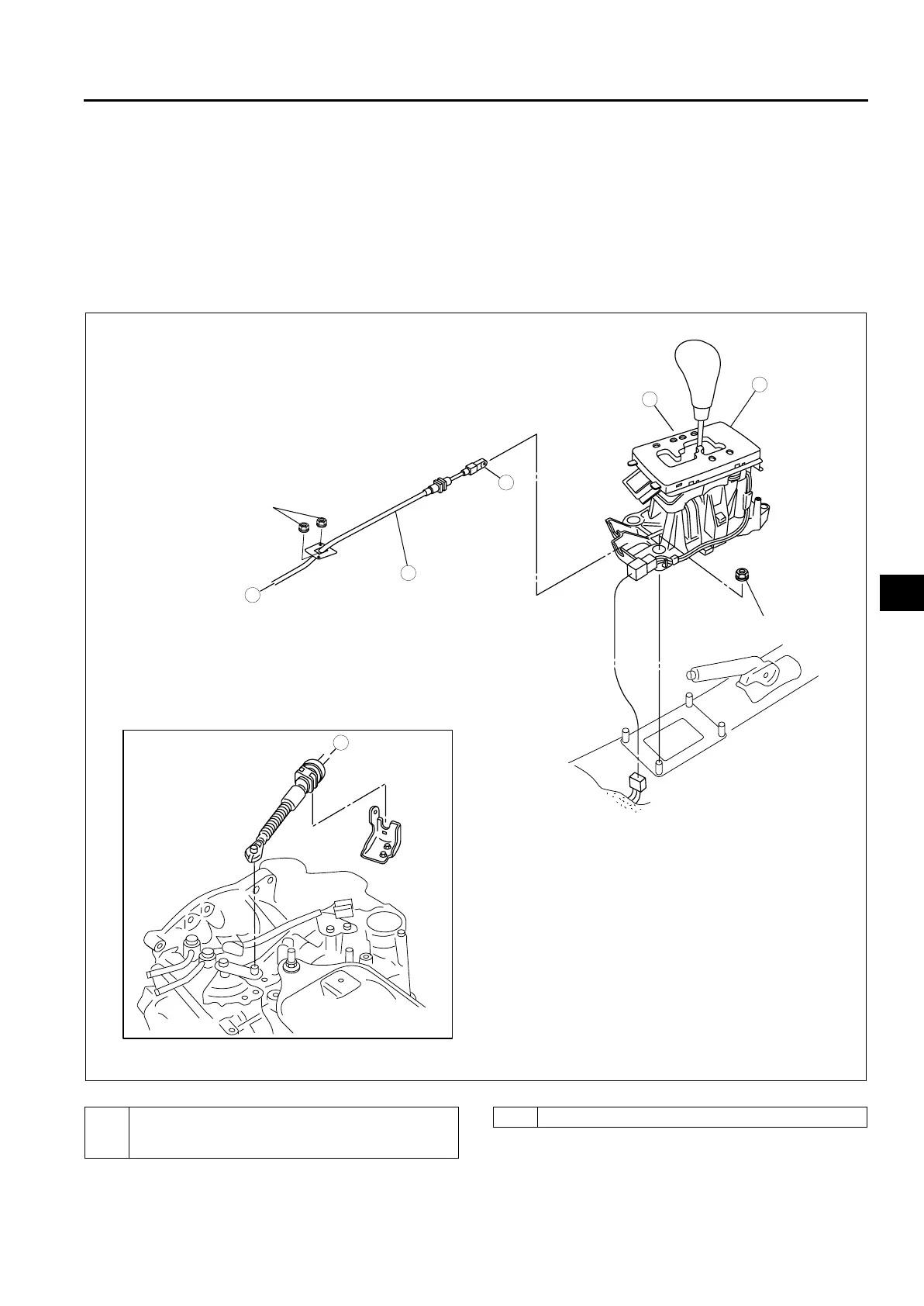

9. Remove in the order shown in the figure.
10. Install in the reverse order of removal.
.
1
2
A
A
B
15.68—22.5
{1.60—2.29, 11.6—16.5}
B
6.86—9.8 N·m
{70—99 kgf·cm, 61—86 in·lbf}
N·m {kgf·m, ft·lbf}
A6E5716W104
1 Selector cable
(See K2–120 Selector Cable Removal Note.)
(See K2–120 Selector Cable Installation Note.)
2Selector lever
