K2–120
AUTOMATIC TRANSAXLE SHIFT MECHANISM

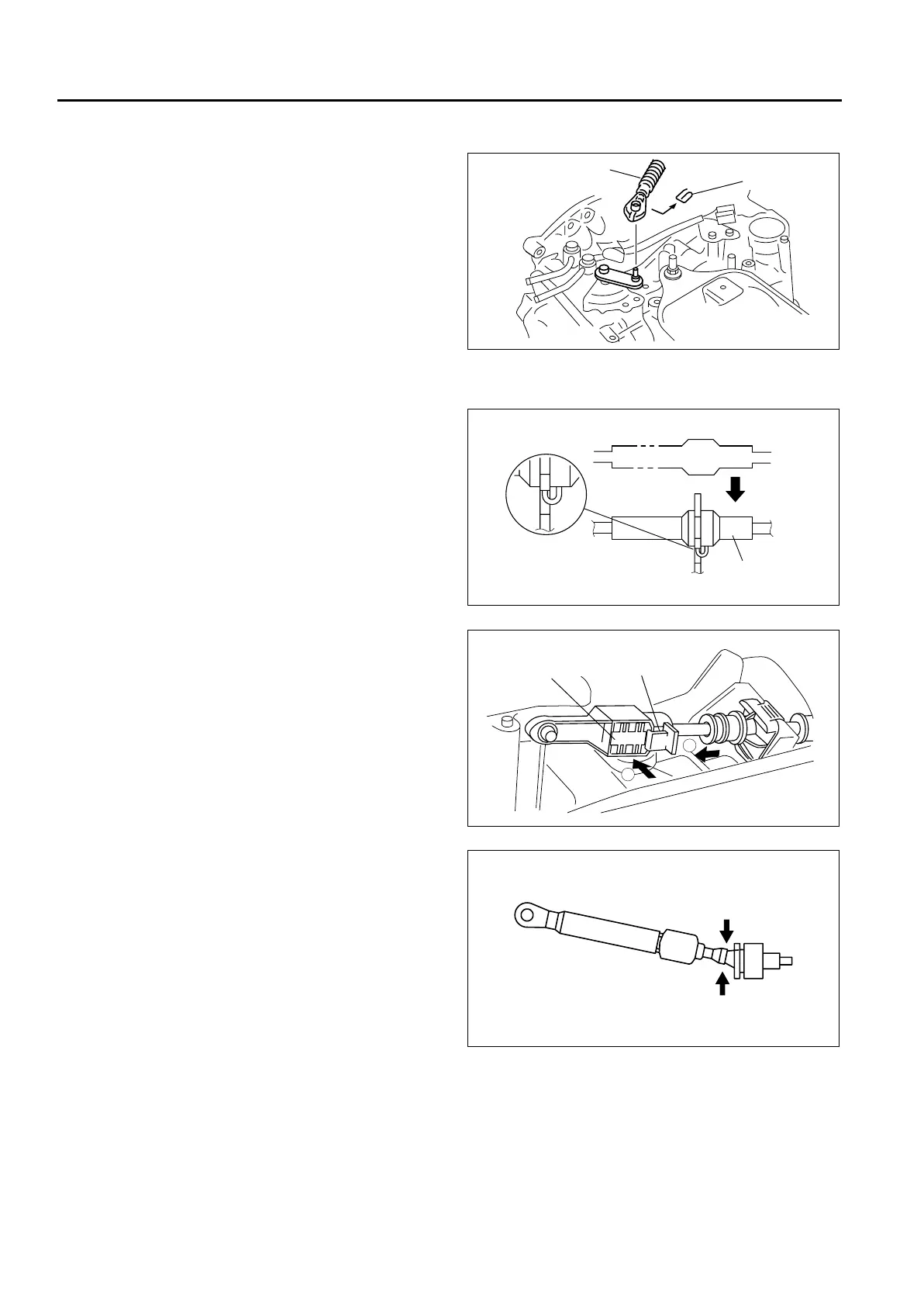

Selector Cable Removal Note
1. Remove the spring.
2. Remove the selector cable.
Selector Cable Installation Note
1. Install the selector cable to the selector lever certainly.
2. Install the selector cable to the bracket certainly.
Note
• Step 3, 4 is for the selector cable
replacement only.
3. Verify that the selector lever is in P position.
4. Lock the lock piece of the selector cable (selector
lever side) in the order shown in the figure.
5. Verify that the manual shaft is in P position.
SPRING
SELECTOR CABLE
A6E5716W105
SELECTOR CABLE
A6E5616W020
2
1
SAFETY
LOCK
LOCK PIECE
A6E5716W103
DO NOT BEND
A6E5616W007
To Next Page
