AUTOMATIC TRANSAXLE SHIFT MECHANISM
K2–121
K2
Caution
• Bending the selector cable in the manner
shown in the figure will damage the cable
and it may become loose when shifted.
When installing the selector cable, hold it
straight.

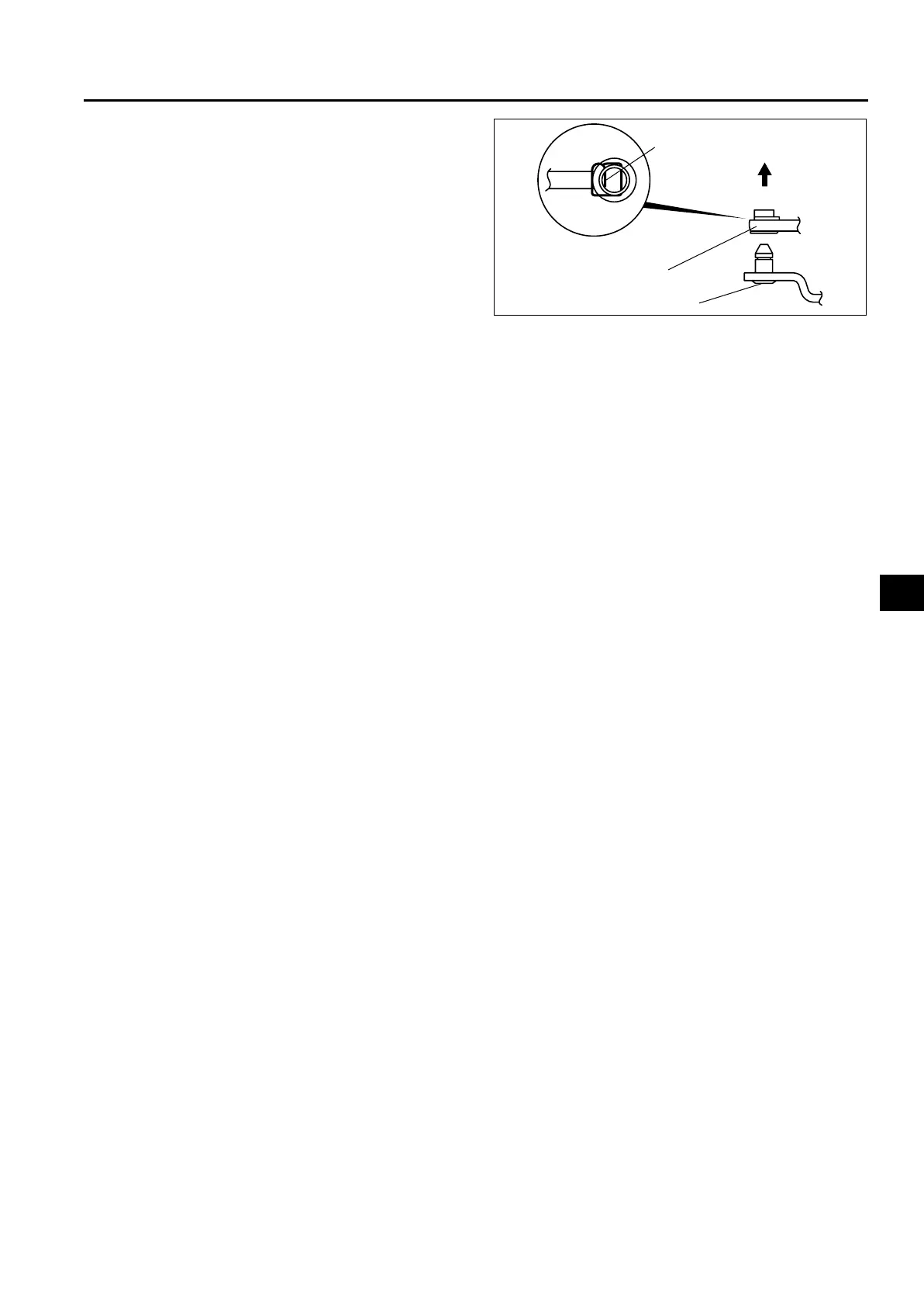

Note
• Install the selector lever to the manual shaft
lever with the spring side of the selector
cable end facing the upward of the vehicle.
6. Install the selector lever to the manual shaft lever
in such a way that the selector cable does not bear a load.
7. Confirm that the end of the manual shift lever sticks out of the end of the selector cable.
8. Install the selector cable to the selector cable securely bracket.
End Of Sie
SELECTOR CABLE
MANUAL SHAFT LEVER
SPRING
UPWARD
A6E5714W115
