REAR DRIVE SHAFT
M–43
M
REAR DRIVE SHAFT REMOVAL/INSTALLATION
A6E631725500202
Caution
• Performing the following procedures without first removing the ABS wheel-speed sensor may
possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (wheel side) and fix it to an
appropriate place where the sensor will not be pulled by mistake while the vehicle is being
serviced.
1. Drain the rear differential oil into a container. (See M–48 DIFFERENTIAL OIL REPLACEMENT.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
.

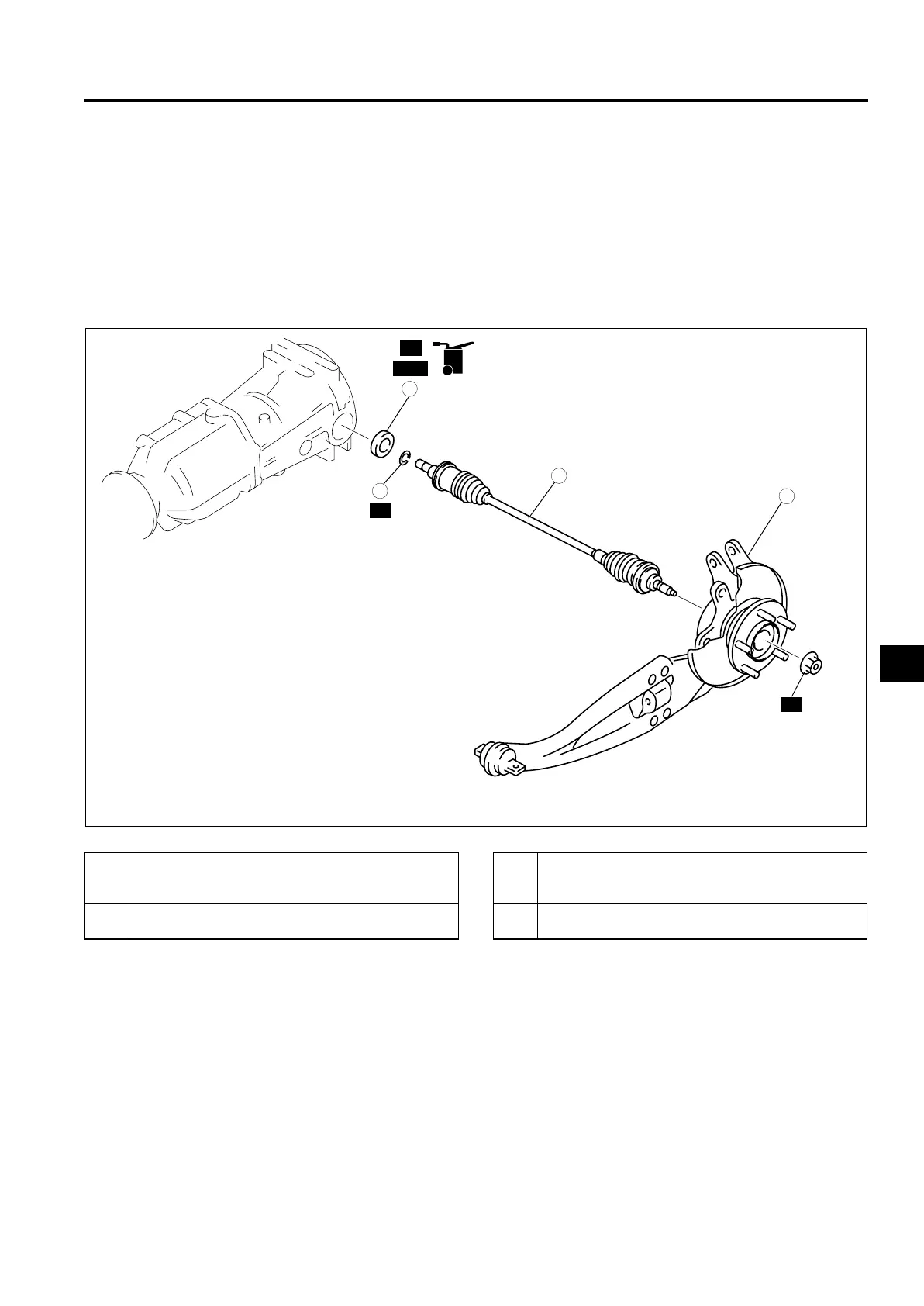

SST
R
R
R
OIL
4
3
1
2
235.2—318.5
{24.0—32.4,
173.5—234.9}
N·m {kgf·m, ft·lbf}
A6J63172001
1 Trailing link, knuckle component
(See M–22 WHEEL HUB, KNUCKLE REMOVAL/
INSTALLATION)
2 Rear drive shaft
(See M–44 Rear Drive Shaft Removal Note)
3Oil seal
(See M–49 OIL SEAL (SIDE GEAR)
REPLACEMENT)
4Clip
(See M–44 Clip Installation Note)
