QUICK RELEASE CONNECTOR (FUEL TANK SIDE, TRANSFER HOSE PART)
A6E391242692201
Function
• The quick release connector makes disconnecting and connecting of fuel hoses and fuel pipes easy.
Structure
• The quick release connector is adopted for the transfer hose part of the fuel tank side.
• The quick release connector is composed of a retainer, O-ring and other parts. The quick release connector
and plastic fuel hose are integrated and cannot be disconnected.
• The retainer and quick release connector are integrated and cannot be disconnected.
• An SST is not required to uncouple this type of quick release connector.
.
Operation
• Squeeze the tabs of the retainer to unlock and disconnect the quick release connector from the fuel pipe.
• A click is heard when the tabs of the retainer are pushed correctly into the lock point of the quick release
connector.
.
End Of Sie
3
1
2

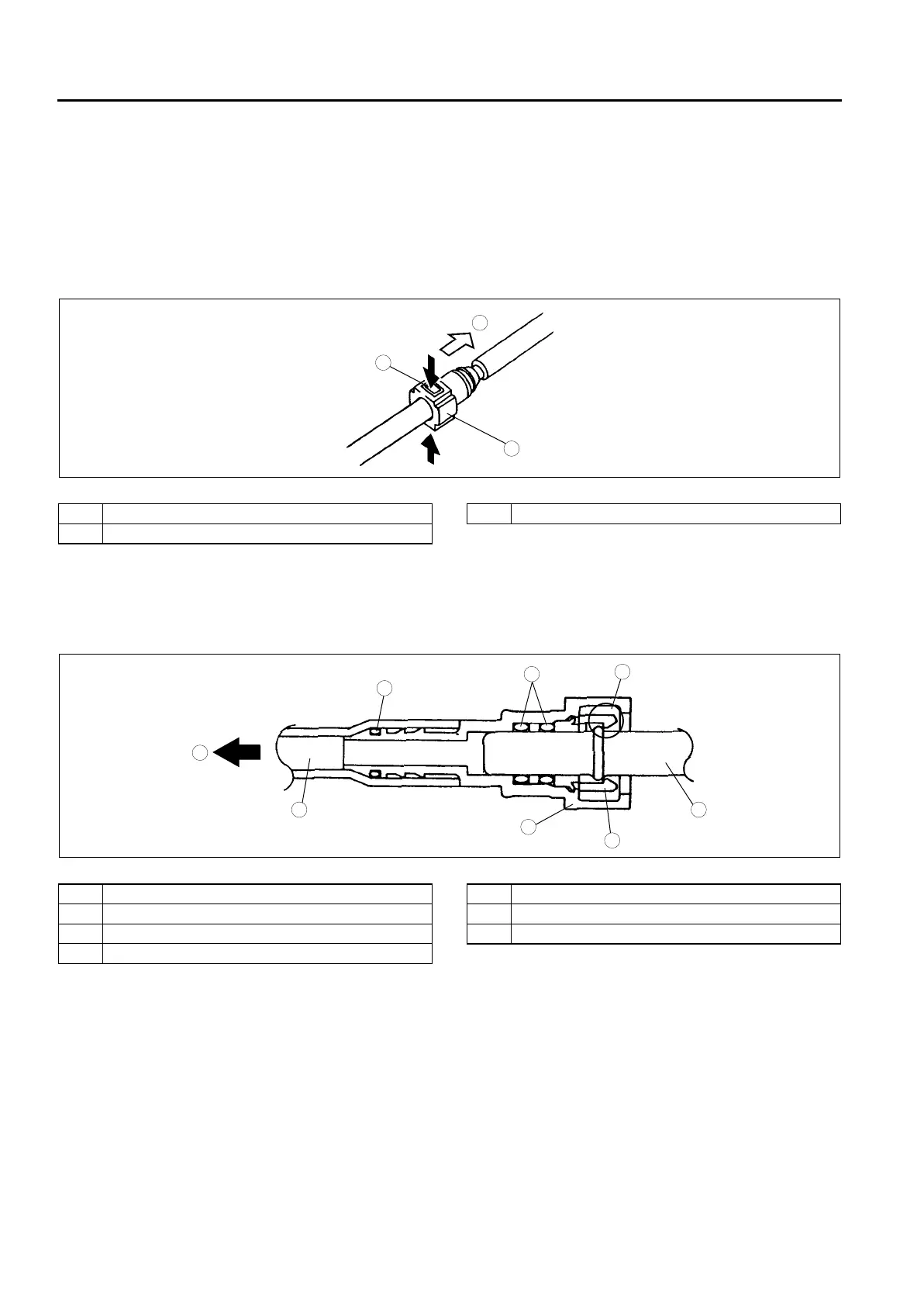

A6E39122010
1Tab
2 Quick release connector
3 Disconnect
7
5
4
3
6
1
2
1
A6E39122011
1 O-ring
2 Lock point
3 Disconnect
4Fuel hose
5 Quick release connector
6 Retainer
7 Fuel pipe
