Mazda Mazda6 - Disc Pad (Front) Replacement

P–16
CONVENTIONAL BRAKE SYSTEM
DISC PAD (FRONT) REPLACEMENT
A6E691233630201

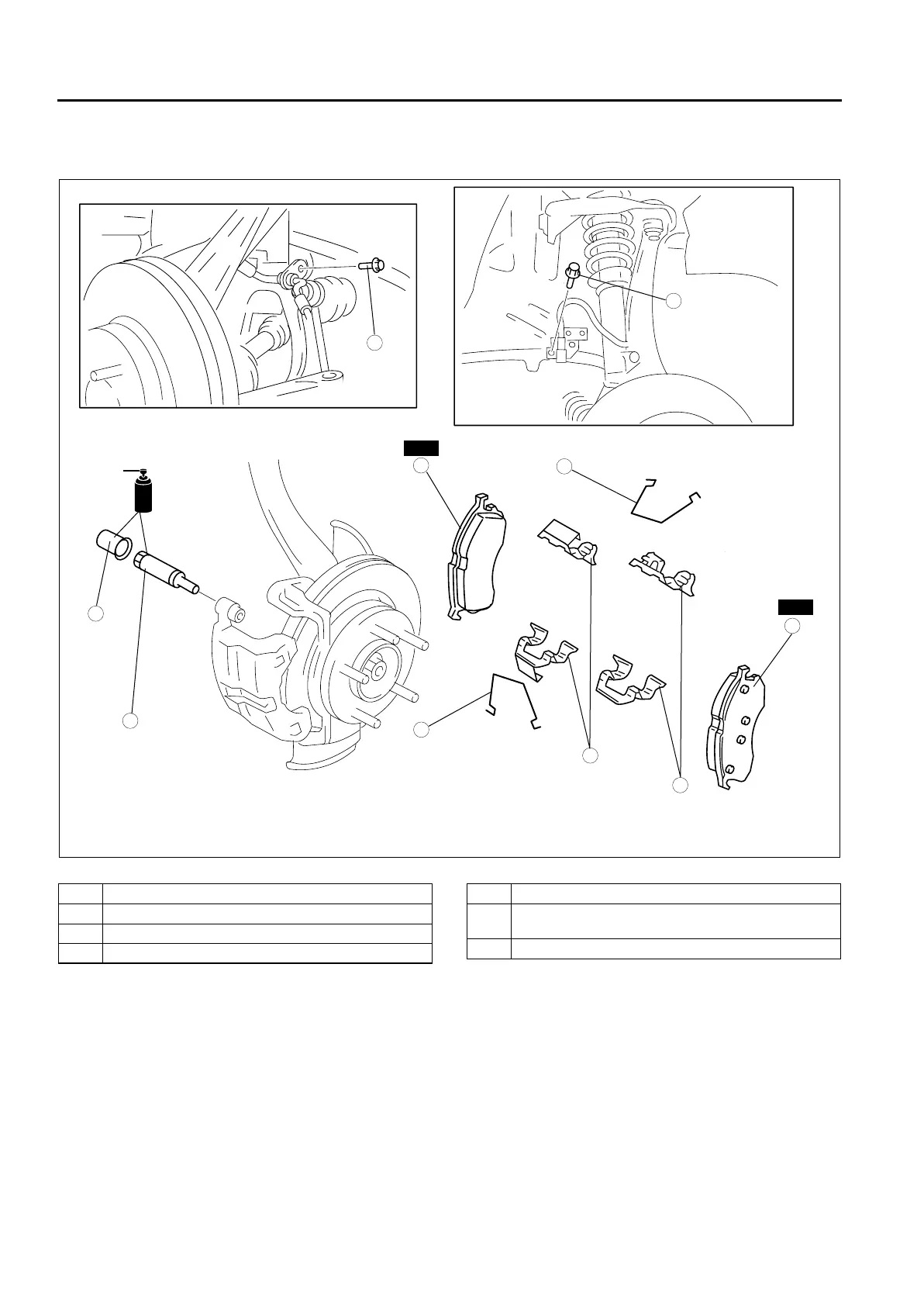

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
End Of Sie
7
7
5
5
4
3
1
2
6
SST
6
SST
GREASE
GREASE
18.5—25.5
{1.89—2.60,
13.7—18.8}
L8, LF (GCC SPECS.)
LF (EUROPEAN (L.H.D. U.K.) SPECS.),
L3, MZR-CD (RF TURBO)
L8, LF (GCC SPECS.):
44.1—49.0 {4.47—4.99, 32.4—36.1}
LF (EUROPEAN (L.H.D. U.K.) SPECS.),
L3, MZR-CD (RF TURBO)):
49.0—53.9 {5.00—5.49, 36.2—39.7}
RUBBER GREASE
18.5—25.5
{1.89—2.60,
13.7—18.8}
N·m {kgf·m, ft·lbf}
A6E6912W203
1Bolt
2Bolt
3Cap
4 Guide pin
5M-spring
6Disc pad
(See P–15 Disc Pad Installation Note)
7 Guide plate
