Mazda Mazda6 - Front Oil Seal; Front Oil Seal Replacement

B2–24

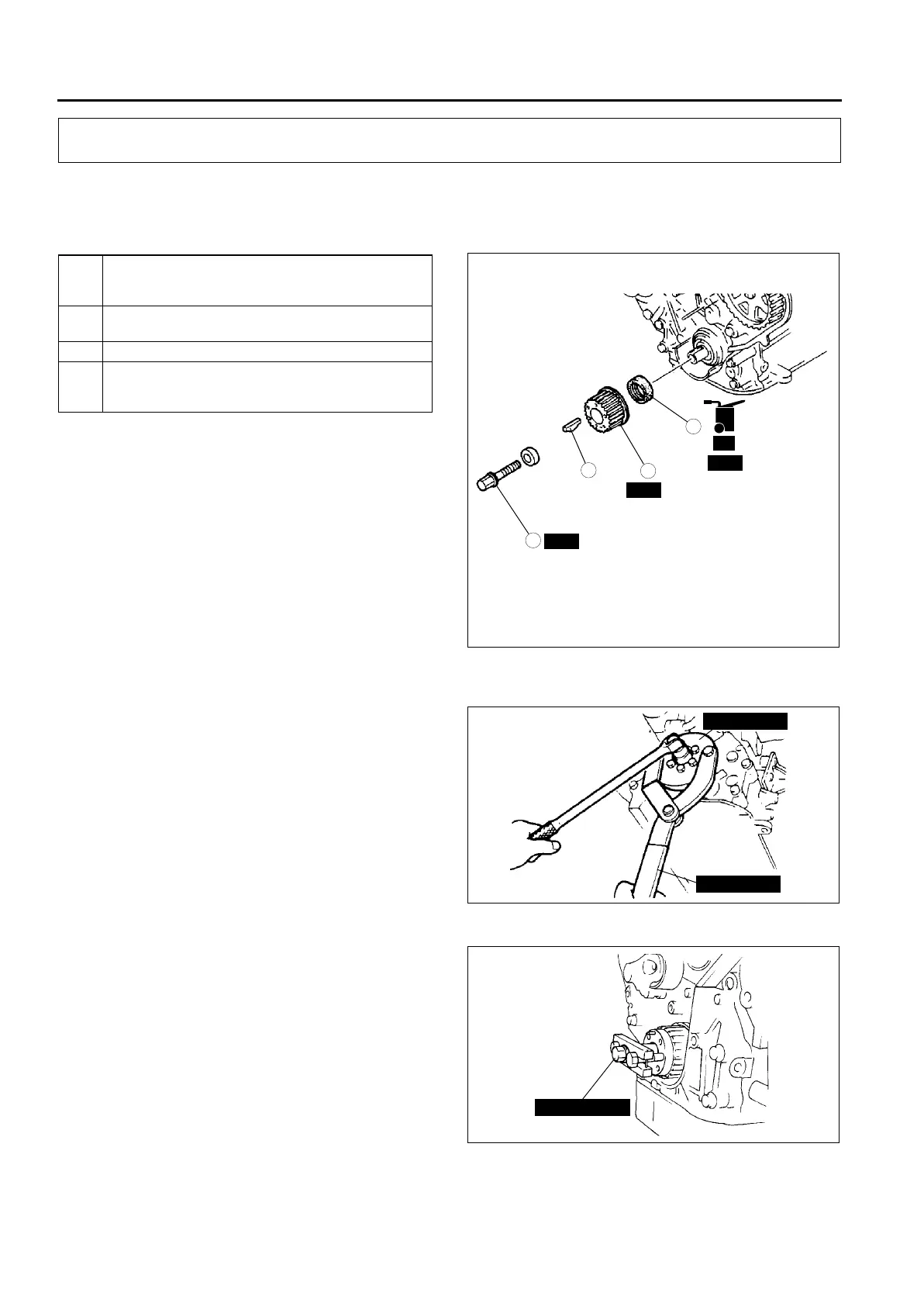

FRONT OIL SEAL
FRONT OIL SEAL REPLACEMENT
A6E232010602201
1. Remove the timing belt. (See B2–9 TIMING BELT REMOVAL/INSTALLATION.)
2. Remove in the order shown in the table.
3. Install in the reverse order of removal.
.
Timing Belt Pulley Lock Bolt Removal/Installation Note
1. Hold the timing belt pulley using the SSTs.
Timing Belt Pulley Removal Note
1. Remove the timing belt pulley using the SST.
FRONT OIL SEAL
1 Timing belt pulley lock bolt
(See B2–24 Timing Belt Pulley Lock Bolt Removal/
Installation Note)
2 Timing belt pulley
(See B2–24 Timing Belt Pulley Removal Note)
3Key
4 Front oil seal
(See B2–25 Front Oil Seal Removal Note)
(See B2–25 Front Oil Seal Installation Note)
SST
SST
SST
R
OIL
OIL
167—176 {17.0—18.0, 123—130}
N·m {kgf·m, ft·lbf}
3
1
2
4
A6E2320W100
49 G011 105
49 S120 710
A6E2320W101
49 S120 215B
A6E2320W102
