CYLINDER HEAD GASKET

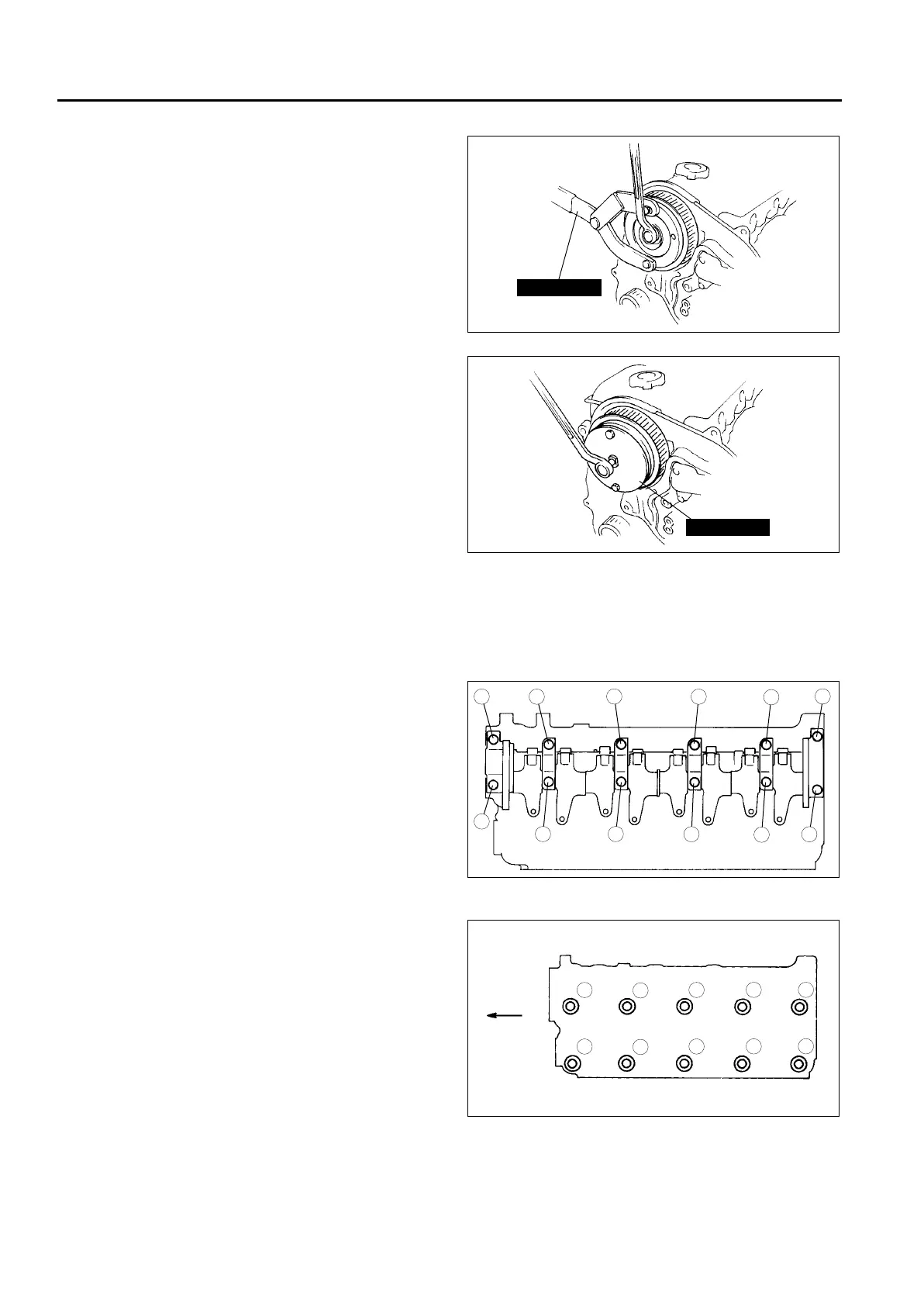

Camshaft Pulley Removal Note
1. Hold the camshaft using the SST.
2. Remove the camshaft pulley lock bolt.
3. Remove the camshaft pulley using the SST.
Seal Plate Removal Note
1. Remove the seal plate from the engine component. However, the seal plate cannot be removed completely.
Separate the seal plate from the engine component by removing the fitting bolts so that the cylinder head can
be removed.
Rocker Arm and Rocker Arm Shaft Removal Note
1. Loosen the bolts in two or three steps in the order
shown.
Cylinder Head Removal Note
1. Loosen the cylinder head bolts in two or three
steps in the order shown.
49 S120 710
A6E2318W104
49 G011 106
A6E2318W105
9
8
7
5
4
3
10
11
12 6
2
1
A6E2318W106
9 8
7
5 4
3 10 6
1
2
ENGINE
FRONT
A6E2318W107
