CYLINDER HEAD GASKET
B2–17
B2

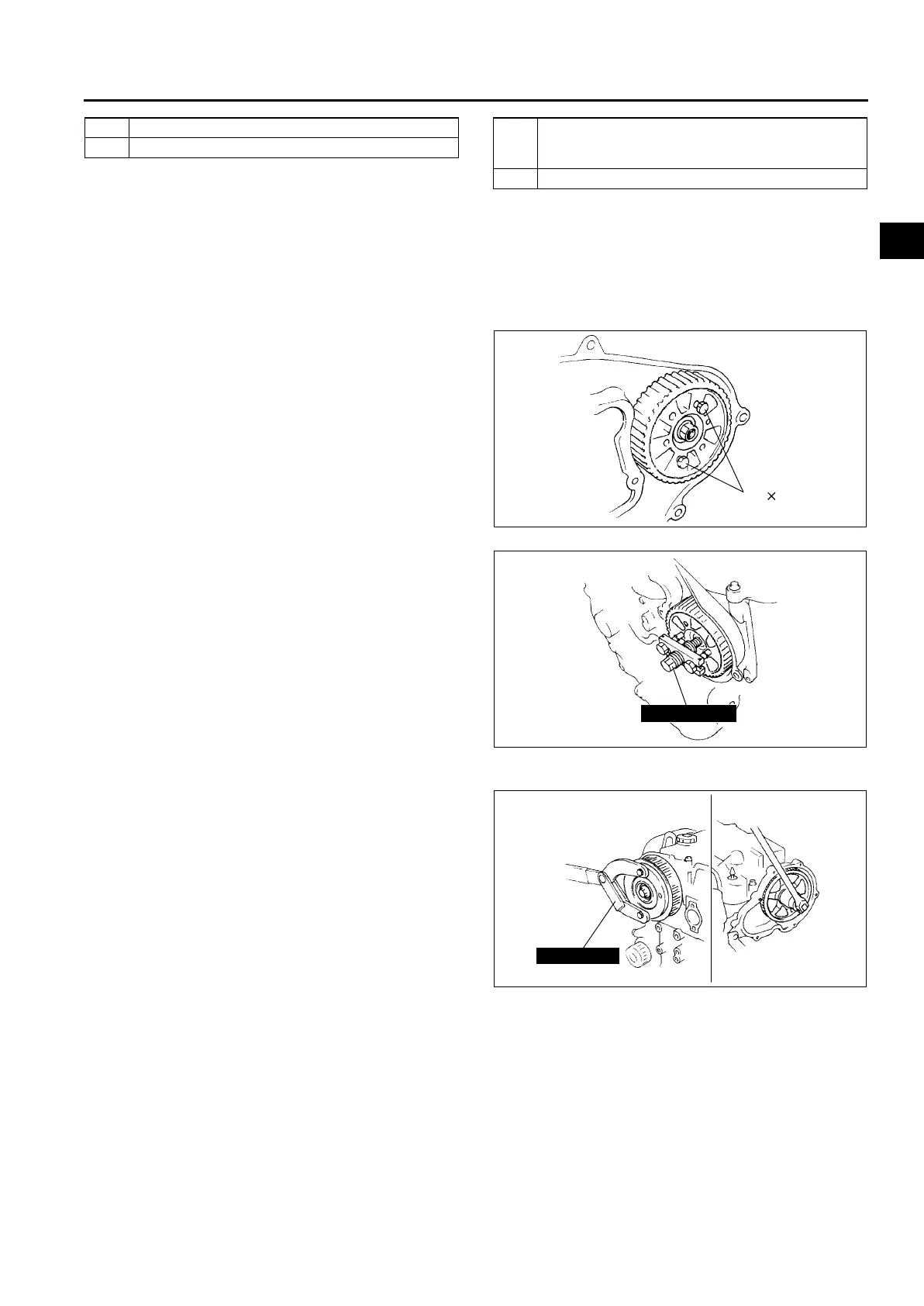

Supply Pump Pulley Removal Note
1. Verify that timing marks are correctly aligned.
Caution
• To prevent the bolts (M8 x 1.25) from damaging the supply pump and pulley, do not fully tighten
the fixing bolts. If it contacts the pulley surface, it will damage the pulley.
2. Fix the supply pump pulley to the bracket using
two bolts (M8 x 1.25).
3. Loosen the supply pump pulley lock nut.
4. Separate the supply pump pulley from the supply
pump shaft using the SST.
5. Remove the supply pump pulley fixed bolts
(M8 x 1.25).
Drive Gear Removal Note
1. Hold the camshaft using the SST.
2. Remove the drive gear lock bolt.
22 Camshaft
23 Breather pipe
24 Cylinder head
(See B2–18 Cylinder Head Removal Note)
(See B2–19 Cylinder Head Installation Note)
25 Cylinder head gasket
M8 1.25
BOLT
A6E2318W101
49 S120 215B
A6E2318W102
49 S120 710
A6E2318W103
