B2–16

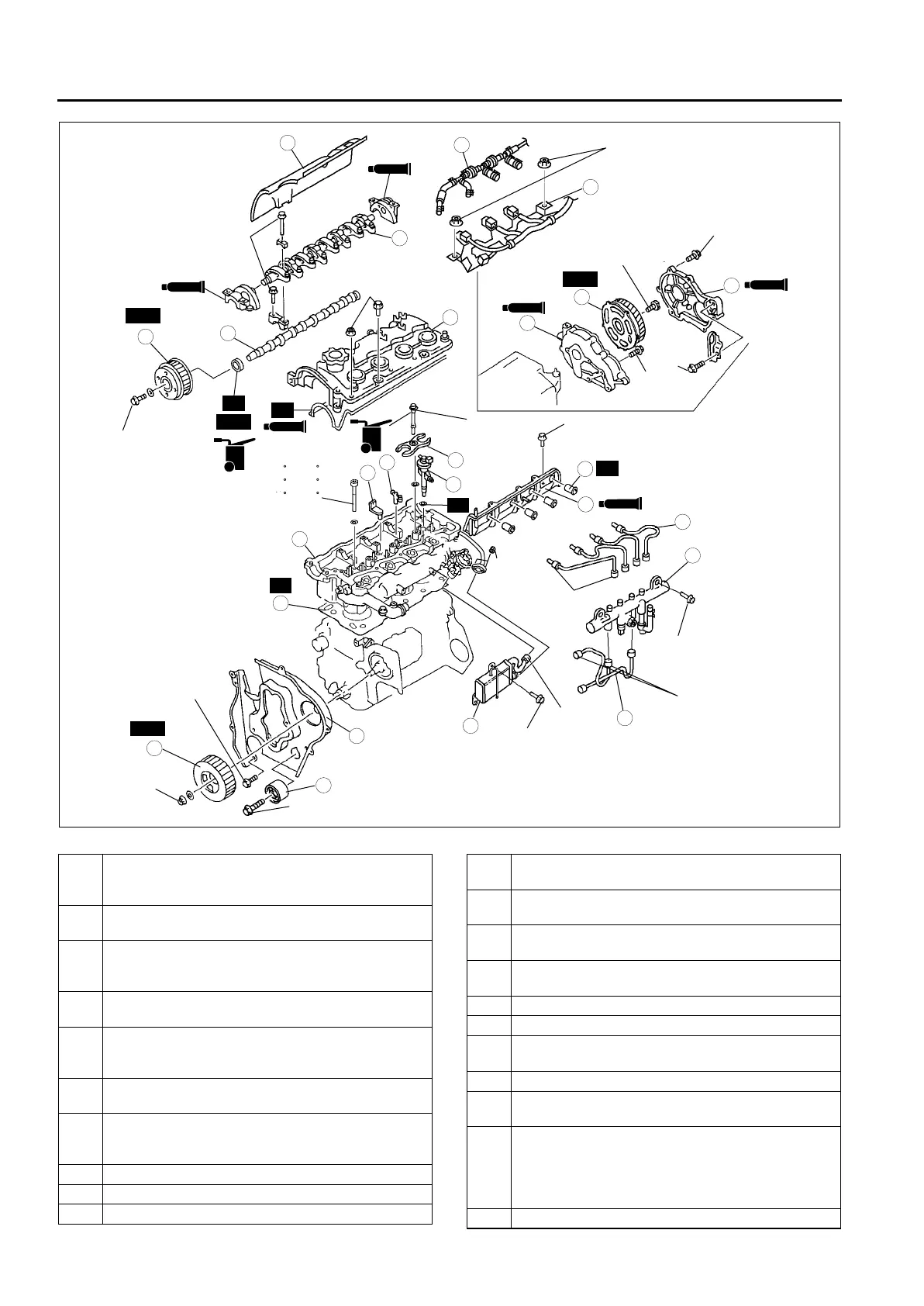

CYLINDER HEAD GASKET
.
SST
SST
SST
R
R
R
R
R
SEALANT
SEALANT
SEALANT
SEALANT
SEALANT
SEALANT
SEALANT
SEALANT
SEALANT
SEALANT
OIL
OIL
OIL
OIL
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
7.9—10.7 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
55—64
{5.6—6.6, 41—47}
38—51
{3.8—5.3,
28—38}
52—61
{5.3—6.3,
39—45}
29 {3.0, 22}
+90 105
+90 105
+90 105
50—60
{5.0—6.0,
37—44}
19—25
{1.9—2.6,
14—18}
50—60 {5.0—6.0, 37—44}
46—58 {4.6—6.0, 34—43}
59—68
{6.0—7.0, 44—50}
25—30
{2.5—3.1, 18—22}
38—51
{3.8—5.3,
28—38}
19—25
{1.9—2.6,
14—18}
N·m {kgf·m, ft·lbf}
9
8
7
5
4
3
1
2
10
19
18
17
15
16
14
13
11
12
20
25
24
23
21
22
6
SST
55—64
{5.6—6.6, 41—47}
—
—
—
39—44
{4.0—4.4,
28.8—32.4}
22—26
{2.2—2.7,
16—19}
SEALANT
SEALANT
A6E2318W100
1 Supply pump pulley
(See B2–17 Supply Pump Pulley Removal Note)
(See B2–23 Supply Pump Pulley Installation Note)
2 Gear cover
(See B2–22 Gear Cover Installation Note)
3 Drive gear
(See B2–17 Drive Gear Removal Note)
(See B2–22 Drive Gear Installation Note)
4 Gear case
(See B2–22 Gear Case Installation Note)
5 Camshaft pulley
(See B2–18 Camshaft Pulley Removal Note)
(See B2–22 Camshaft Pulley Installation Note)
6 Idler
(See B2–21 Idler Installation Note)
7 Seal plate
(See B2–18 Seal Plate Removal Note)
(See B2–21 Seal Plate Installation Note)
8 Insulator
9 Fuel return hose
10 Injector harness bracket
11 Cylinder head cover
(See B2–21 Cylinder Head Cover Installation Note)
12 Fuel Injection pipe (Fuel injector side)
(See B2–21 Fuel Injection Pipe Installation Note)
13 Fuel Injection pipe (Fuel supply pump side)
(See B2–21 Fuel Injection Pipe Installation Note)
14 Common rail
(See F2–53 Common Rail Installation Note)
15 EGR water cooler
16 Nozzle seal
17 Side wall
(See B2–20 Side Wall Installation Note)
18 Fuel injector bracket
19 Fuel injector
(See F2–55 Fuel Injector Installation Note)
20 Rocker arm and rocker arm shaft
(See B2–18 Rocker Arm and Rocker Arm Shaft
Removal Note)
(See B2–19 Rocker Arm and Rocker Arm Shaft
Installation Note)
21 Rocker bridge
