Set Nut/bolt Removal Note
1. Using a chisel and hammer, cut a groove on the head of the set nut/bolt so that a screwdriver can be inserted.
2. Loose the set nut/bolt using an impact
screwdriver or pliers.
Set Nut/bolt Installation Note
1. Install a new set nut/bolt and tighten it until the
neck of the nut/bolt is cut.
2
4
7.8—10.8 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
7.8—10.8 N·m
{80—110 kgf·cm,
69.5—95.4 in·lbf}
2
1

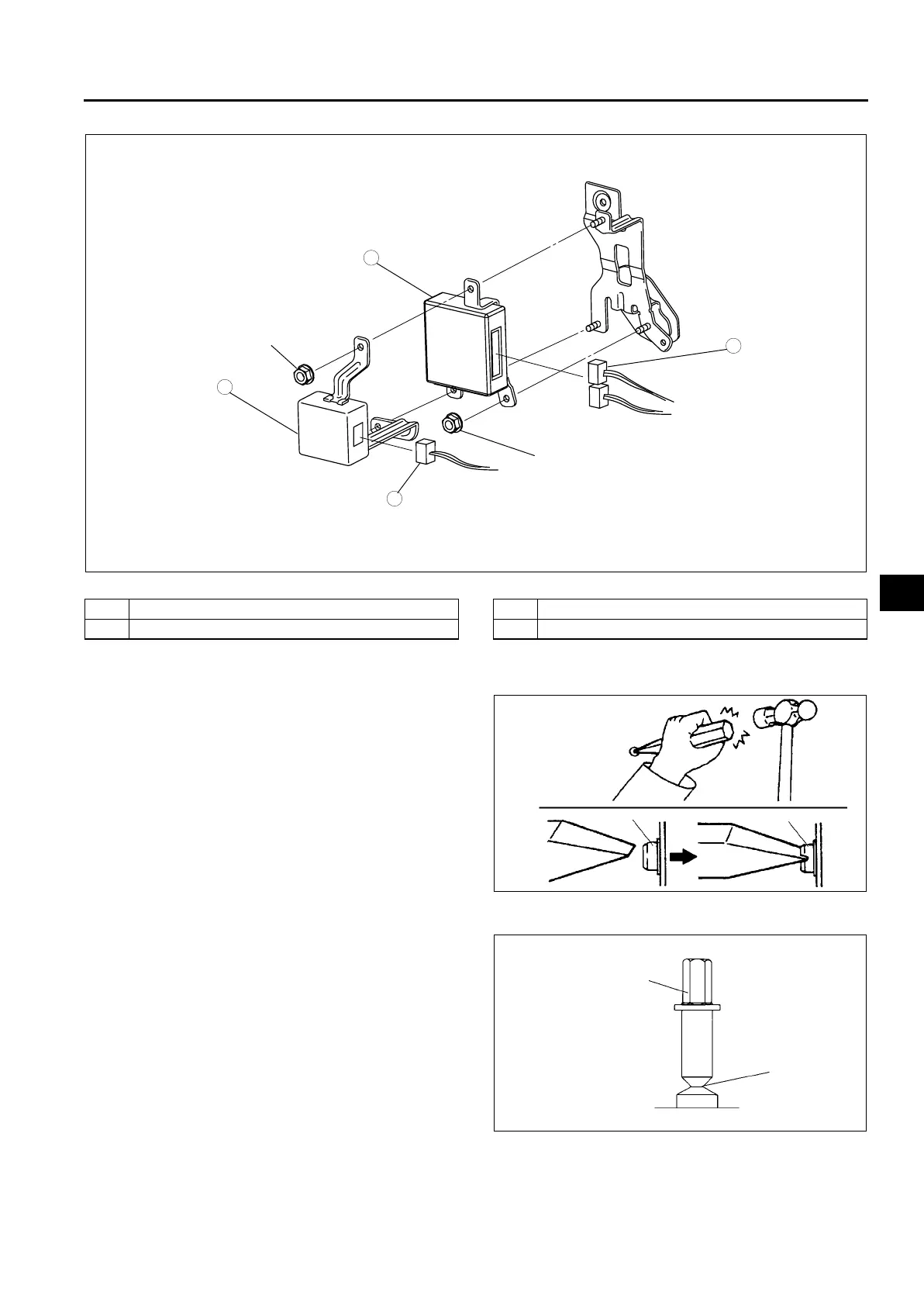

A6E5714W124
1 4WD control module connector
2 TCM connector
3 4WD control module
4TCM
CHISEL
CHISEL
SET NUT/BOLT
SET NUT/BOLT
A6E3940W003
SET NUT/BOLT
CUT
A6E3940W004
