M–40
FRONT DRIVE SHAFT

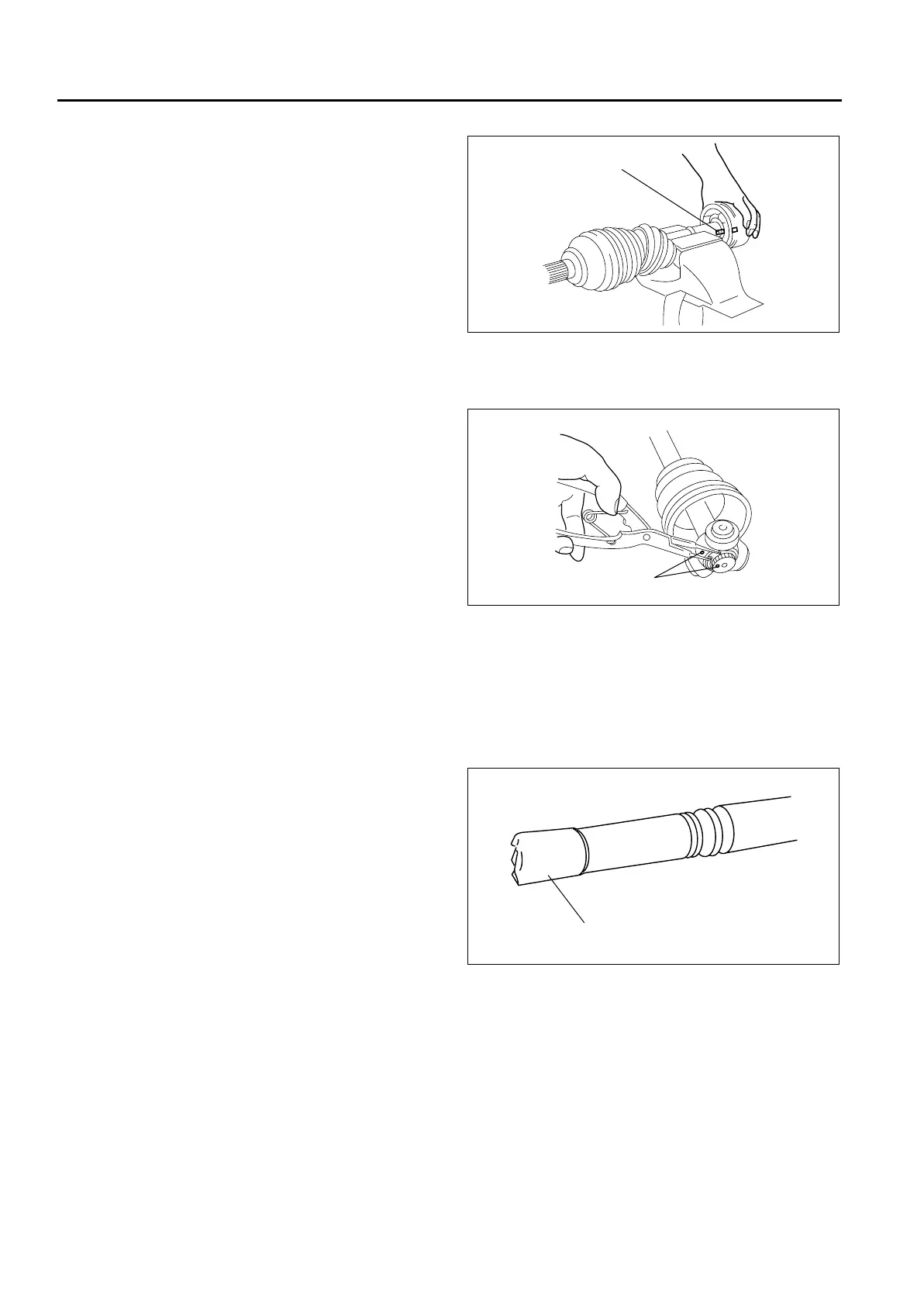

Outer Ring Disassembly Note
1. Mark the outer ring and the shaft for proper
assembly.
2. Remove the outer ring.
Snap Ring, Tripod Joint Disassembly Note
1. Mark the shaft and tripod joint for proper assembly.
2. Remove the snap ring using snap-ring pliers.
3. Remove the tripod joint from the shaft.
Caution
• Do not tap the tripod joint with a hammer.
Boot Disassembly Note
Note
• The wheel side boot does not need to be removed unless replacing it or the ball joint and shaft
component.
• Do not strip the tape until the boot is assembled.
1. Wrap the shaft splines with tape.
2. Remove the boot.
MARK
A6E0313W046
MARK
A6E0313W047
TAPE
A6E0313W048
To Next Page
