M–54
REAR DIFFERENTIAL

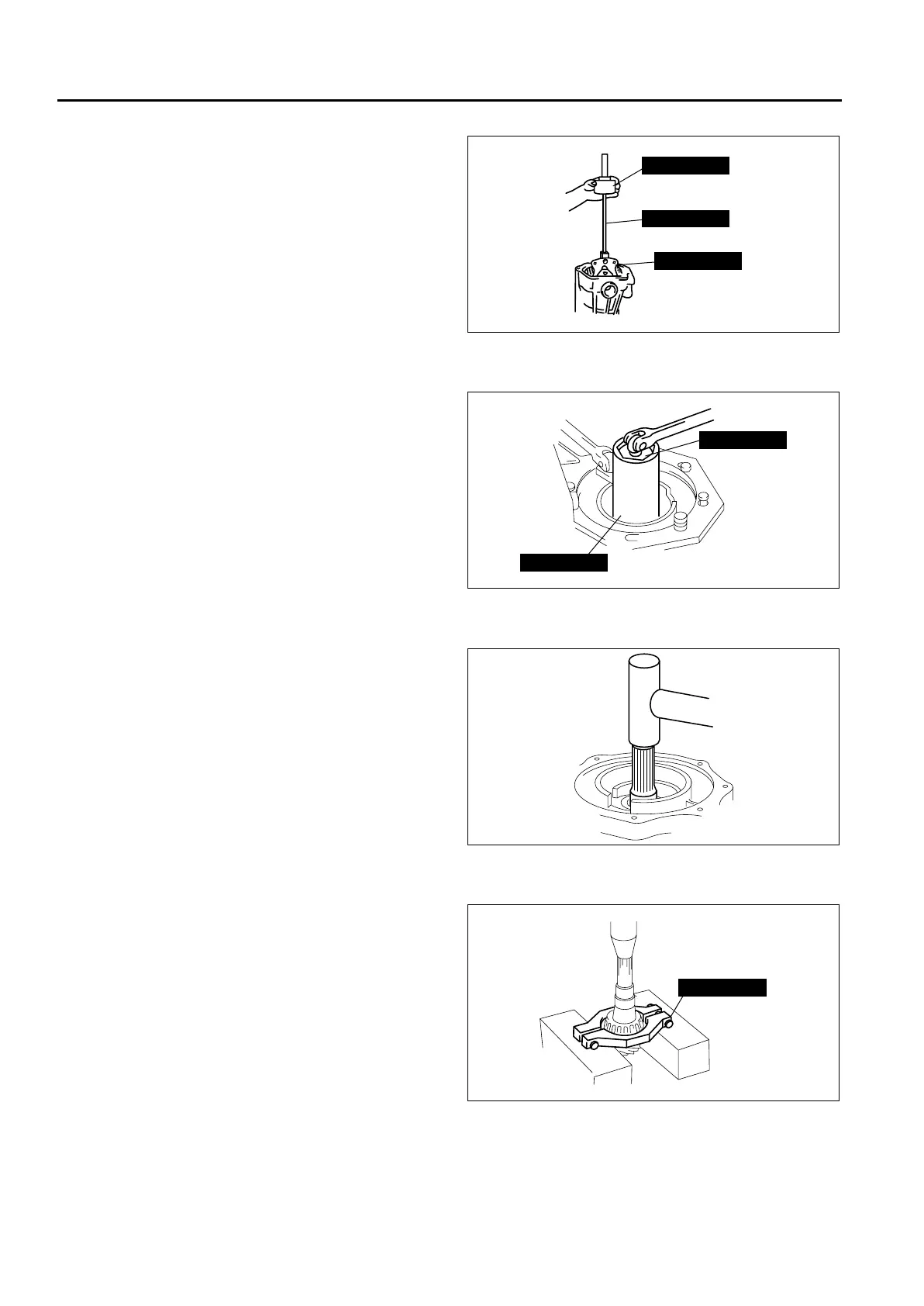

Rear Differential Component Disassembly Note
1. Remove the rear differential component using the
SSTs.
2. Mark or otherwise distinguish between the
removed left and right adjusting shims, spacers
and side bearing outer races so that they are not
mixed up at the time of reassembly.
Locknut Disassembly Note
1. Remove the locknut using the SSTs.
Drive Pinion Disassembly Note
1. Remove the drive pinion by lightly tapping with a
copper hammer.
Bearing Inner Race (Rear Bearing) Disassembly Note
1. Remove the bearing inner races (rear bearing)
using the SST and a press.
49 T032 317
49 T032 316
49 L027 004
A6A63192012
49 L027 006
49 L027 007
A6A63192013
A6A63192014
49 H027 002
A6A63192015
