M–58
REAR DIFFERENTIAL

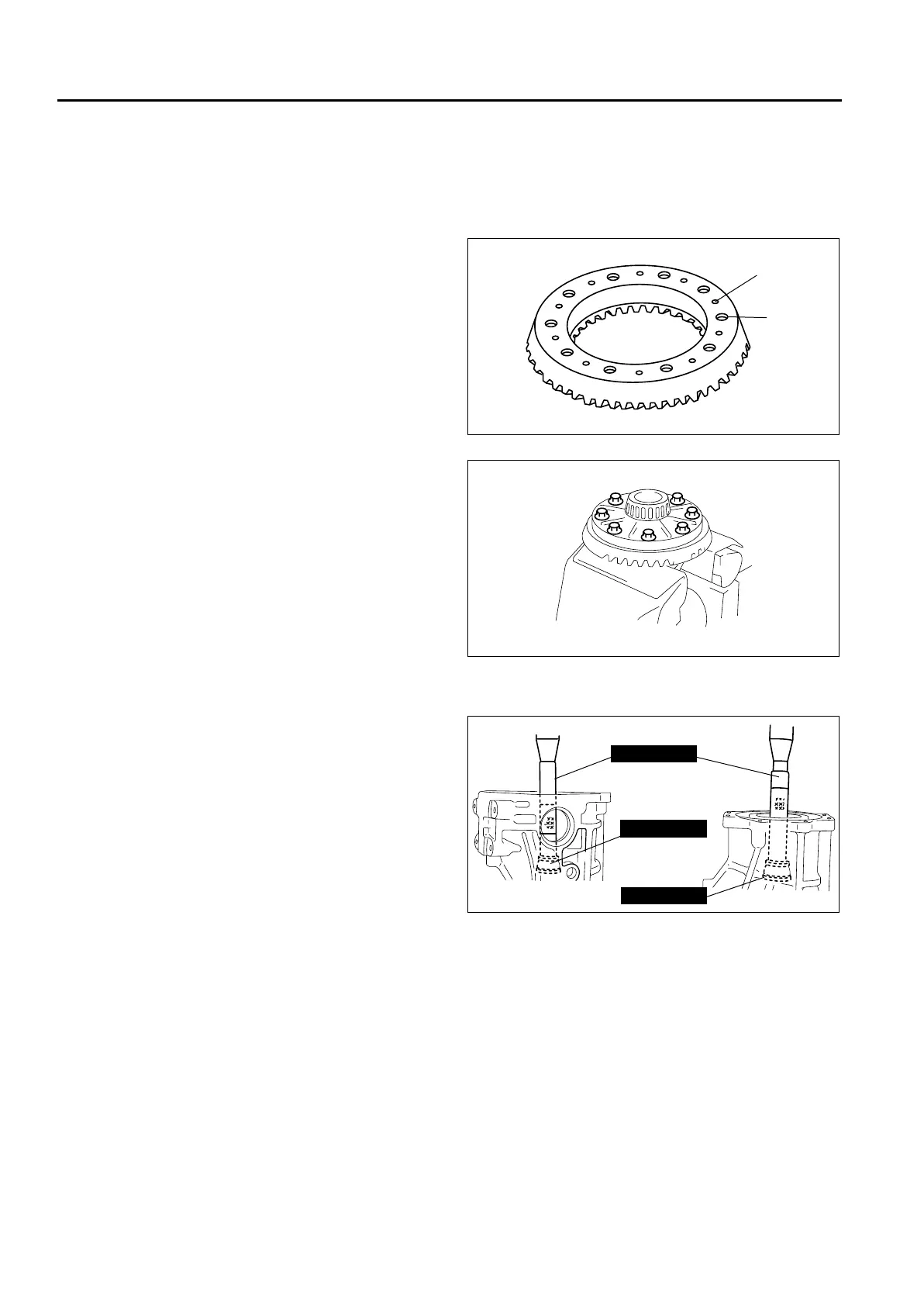

Ring Gear Assembly Note
Caution
• The differential gear and ring gear could be damaged if the ring gear is installed with old thread-
locking compound remaining on the bolt threads. Before installing the ring gear, completely
remove the old thread-locking compound from the bolt threads.
1. Apply a small amount of thread-locking
compound to each of points A on the back of the
ring gear, and bolt thread areas B (around the
entire ring).
Application amount
Back of ring gear:
Approx. 0.32 ml {0.32 cc, 0.02 cu in}
Ring gear bolt thread points:
Approx. 0.32 ml {0.32 cc, 0.02 cu in}
(0.04 ml {0.04 cc, 0.002 cu in}
to each point)
2. Align the marks placed on the ring gear case at
the time of disassembly and tighten the bolts in
diagonal order.
Tightening torque
69—83 N·m {7.1—8.4 kgf·m, 50.9—61.2 ft·lbf}
Bearing Outer Race Assembly Note
1. Press in the bearing outer race using the SSTs
and a press.
A
B
A6A63192022
A6A63192023
49 M005 797
49 F027 007
49 F027 005
A6A63192024
To Next Page
