ENGINE SPEED SENSING POWER STEERING
N–9
N
.
9
6
8
8
4
4
3
3
6
2
2
10
SST
SST
7
SST
R
R
R
R
R
1
18.6—26.5
{1.9—2.7,
13.8—19.5}
33.0—44.1
{3.3—4.4,
21.7—32.5}
74.4—104.8
{7.6—10.6,
54.9—77.23}
74.4—104.8
{7.6—10.6,
54.9—77.2}
33.0—44.1
{3.3—4.4,
21.7—32.5}
29.4—44.1
{3.0—4.4,
21.7—32.5}
7.8—10.8
{0.8—1.1,
5.8—7.9}
7.8—10.8
{0.8—1.1,
5.8—7.9}
93.1—116.6
{9.5—11.8,
68.7—85.9}
93.1—131.3
{9.5—13.3,
68.7—96.8}
119.6—154.8
{9.5—15.7,
68.7—114.1}
119.6—154.8
{9.5—15.7,
68.7—114.1}
93.1—131.3
{9.5—13.3,
68.7—96.8}
N·m {kgf·m, ft·lbf}
7.8—10.8
{0.8—1.1,
5.8—7.9}
5
R
A6E66142003

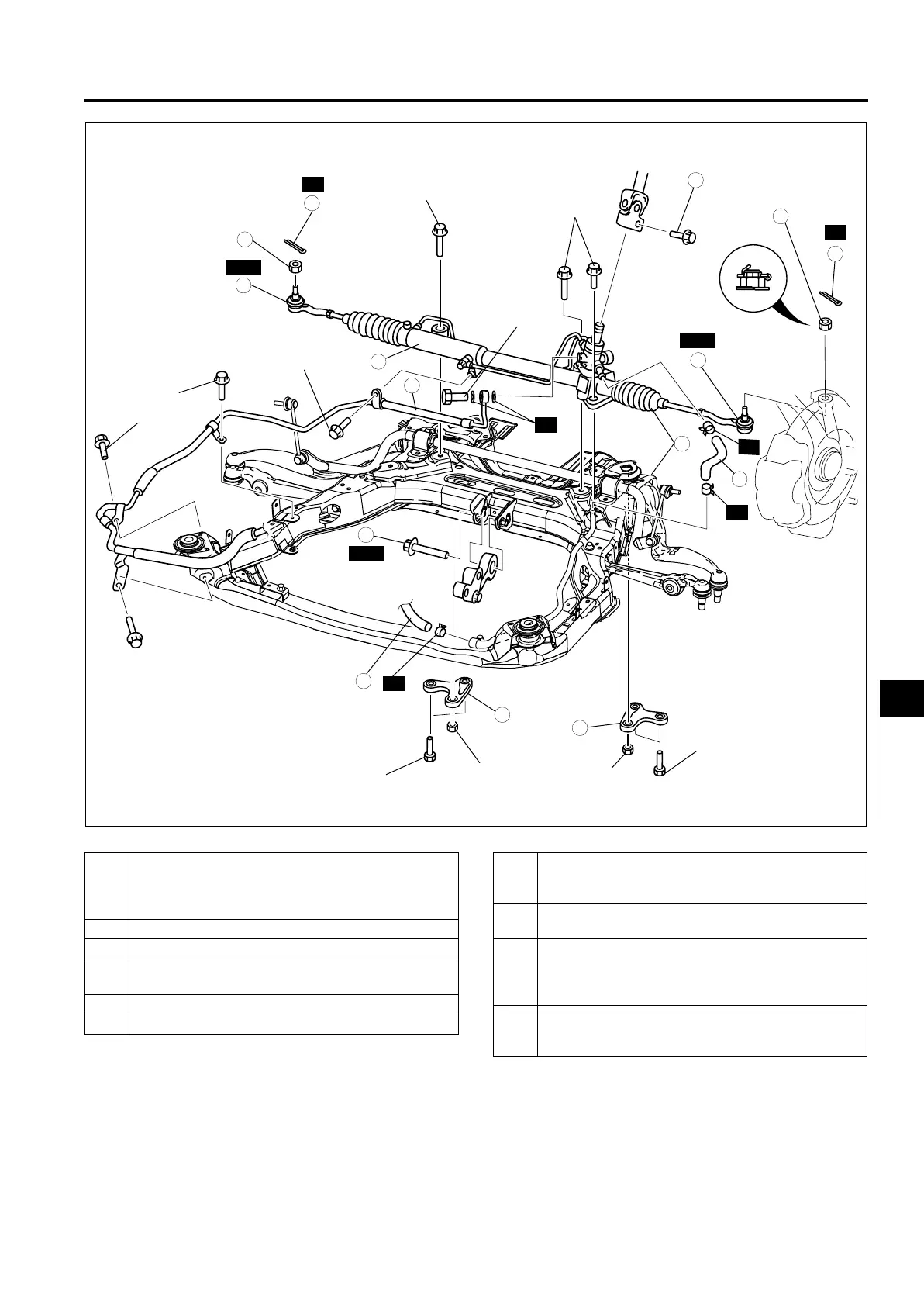

1 Bolt (intermediate shaft)
(See N–10 Bolt (intermediate shaft) removal note)
(See N–11 Bolt (intermediate shaft) installation
note)
2 Cotter pin
3 Nut (tie-rod end ball joint)
4 Tie-rod end ball joint
(See N–10 Tie-rod end ball joint removal note)
5 Pressure pipe
6 Return hose
7 No.1 engine mount center bolt
(See N–10 No.1 engine mount center bolt removal
note)
8 Crossmember bracket
(See N–11 Crossmember bracket removal note)
9 Crossmember component, steering gear and
linkage
(See N–11 Crossmember component, steering gear
and linkage removal note)
10 Steering gear and linkage
(See N–11 Steering gear and linkage installation
note)
