OUTLINE
P–3
P

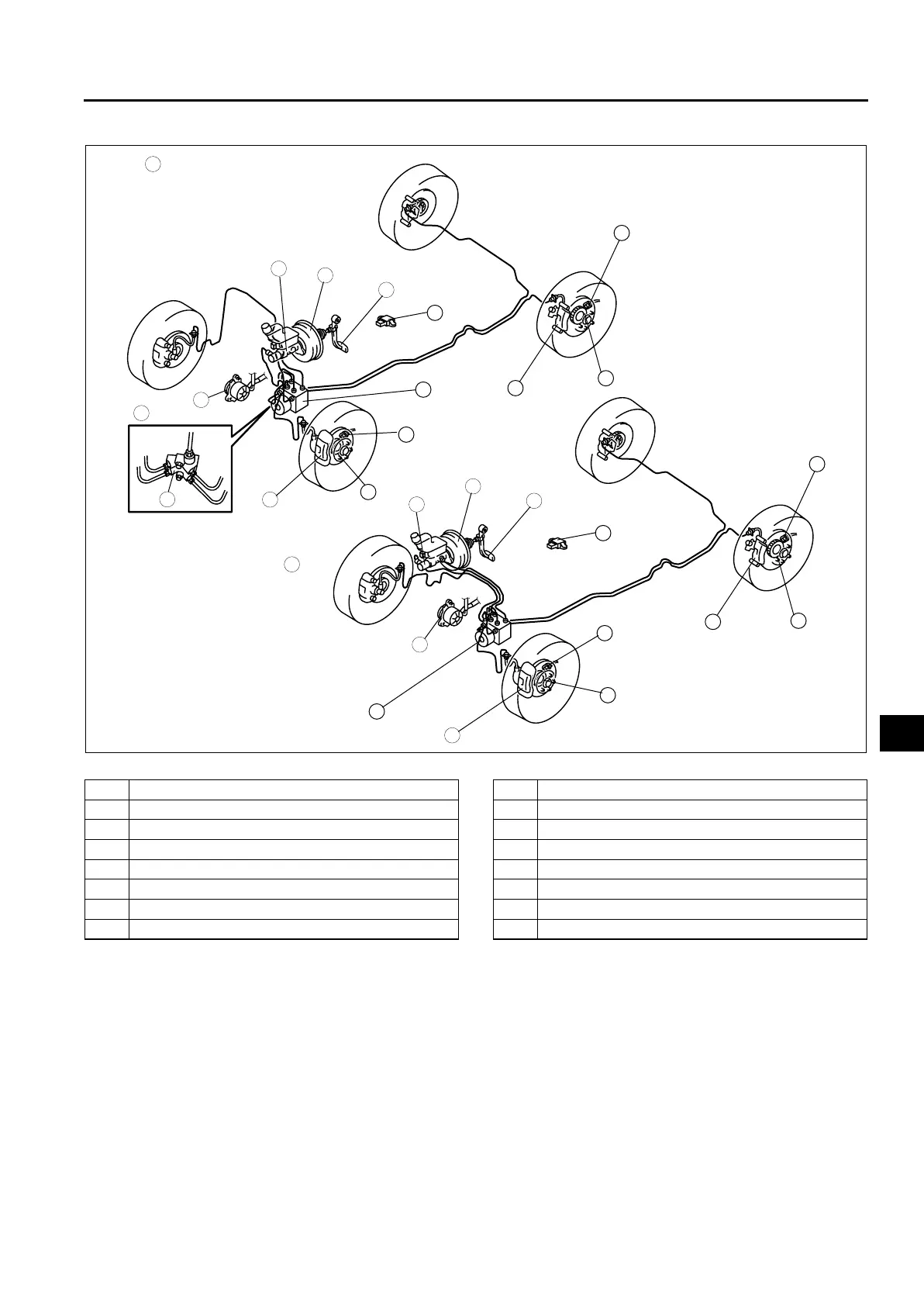

STRUCTURAL VIEW
A6E690201020204
.
End Of Sie
7
5
3
1
2
6
7
5
3
6
8
9
4
4
8
10
15
14
15
14
12
13
13
12
11
11
16
16
A6E6902W201
1L.H.D.
2 R.H.D.
3 Brake pedal
4 Master cylinder
5 Power brake unit
6 Front brake (disc)
7 Rear brake (disc)
8 Vacuum pump
9 Without ABS
10 Dual proportioning valve
11 ABS (ABS/TCS) or DSC HU/CM
12 ABS wheel-speed sensor (front)
13 ABS sensor rotor (front)
14 ABS wheel-speed sensor (rear)
15 ABS sensor rotor (rear)
16 Combine sensor
