Installation - continued

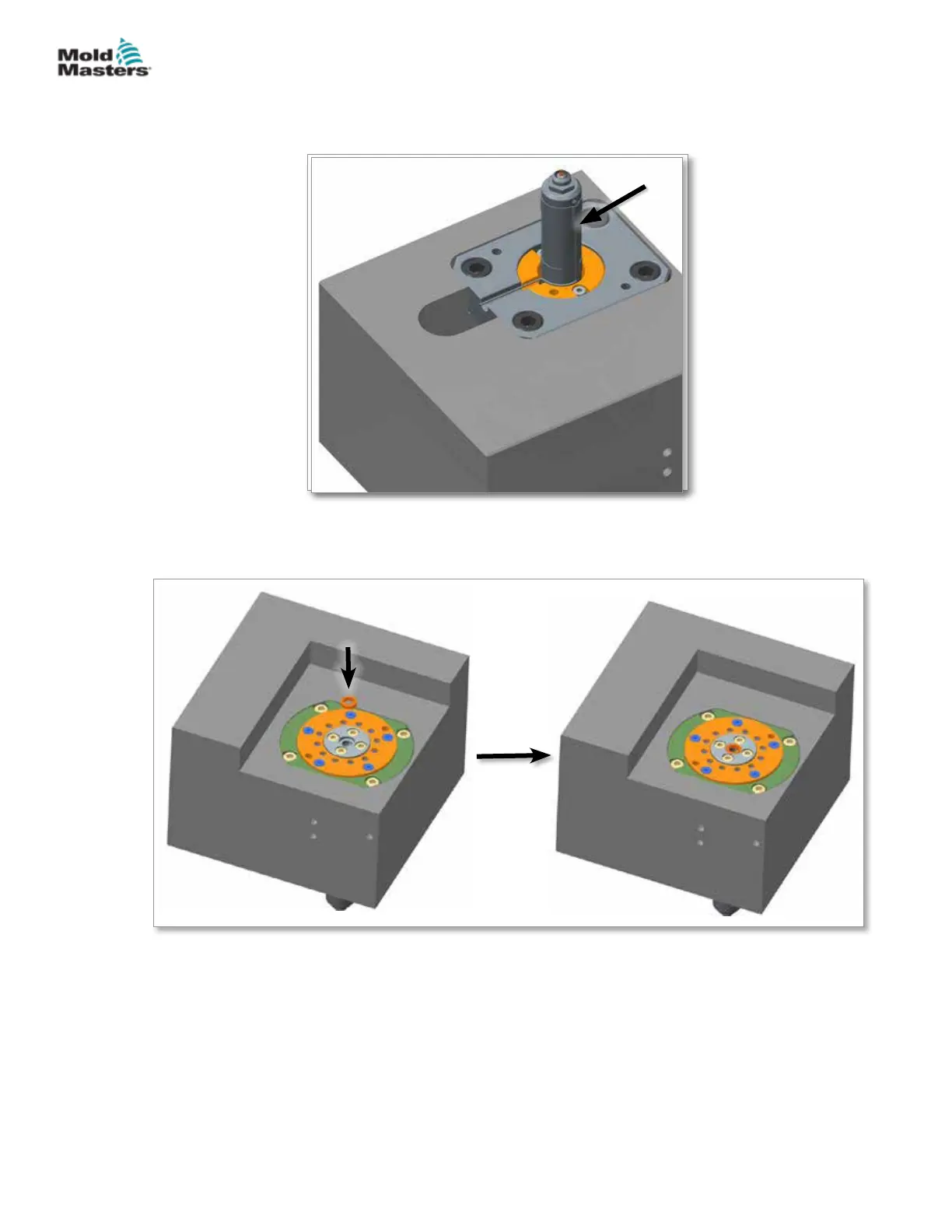

Figure 11-27 Attach inlet seal to heated body
9. Install the remainder of the Hot Runner manifold system. See “Section 5 -
Assembly” on page 5-1.
7. Mount the nozzle thermocouple on the front of the nozzle. See
Figure 11-26.
Figure 11-26 Mount nozzle thermocouple
8. After turning the manifold plate, attach the inlet seal to the heated body.
Check all the connections and actuations. See Figure 11-27.
11-16
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
SLIMSTACK ACTUATOR
Hot Runner User Manual
