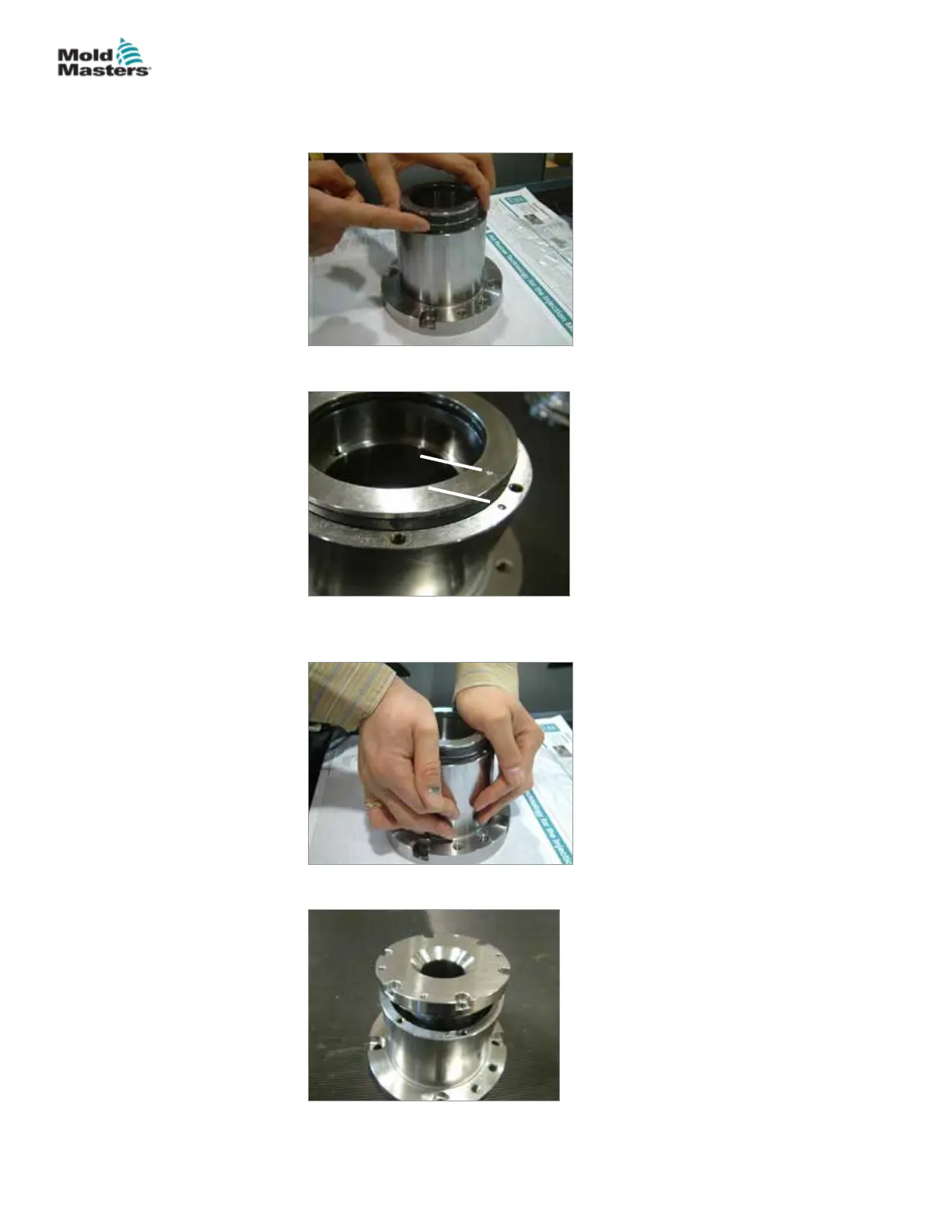

8. Insert the piston (with seals and guide ring) into the cylinder body (with
seal and guide ring).
9. Ensure that timing marks on both components are aligned.
10. Make sure installed seals engage into guiding chamfer. Press piston
smoothly and gently, applying even force.
11. Insert O-ring into cylinder top and assemble it to cylinder body.
Accu-Line™ with Valve Bushing Assembly - continued
17-4
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
ACCU-LINE™
Hot Runner User Manual
