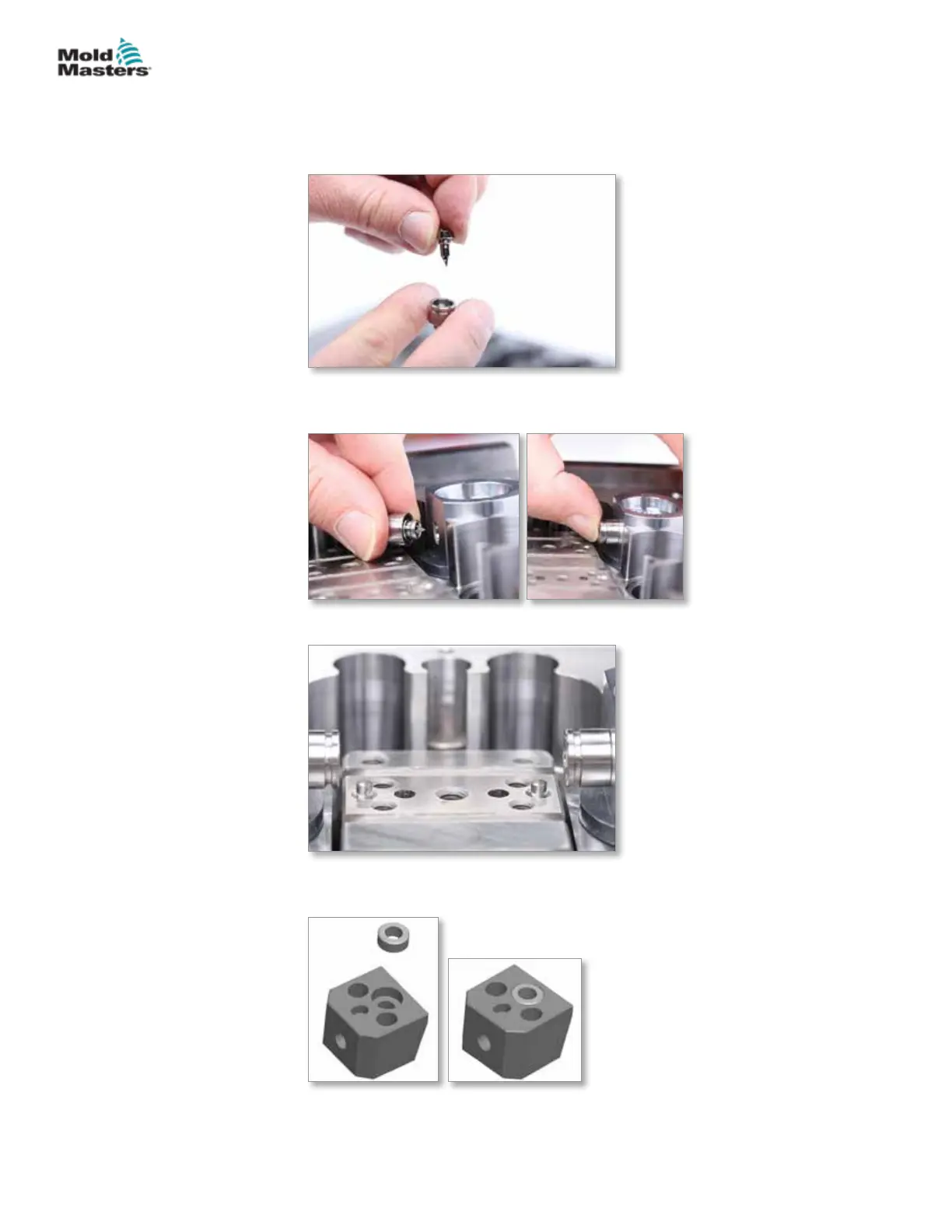

7. Prepare gate seal assembly:
a) Ensure transfer seal and torpedo are clean.
b) Install torpedo into transfer seal.
8. Ensure outside of transfer seal is clean. Slide t transfer seal into cavity
insert hole.
9. Install wedge dowel pins for locating melt wedges.
10. Ensure all melt wedge surfaces and inseals are clean. Place inseals into
melt wedges.
Melt-CUBE Design A Assembly - continued
